Parts > Mazda B2600 > 1996-03 > Gasoline-engine 4-cylinder Supplement > Cooling System

Search by part number:

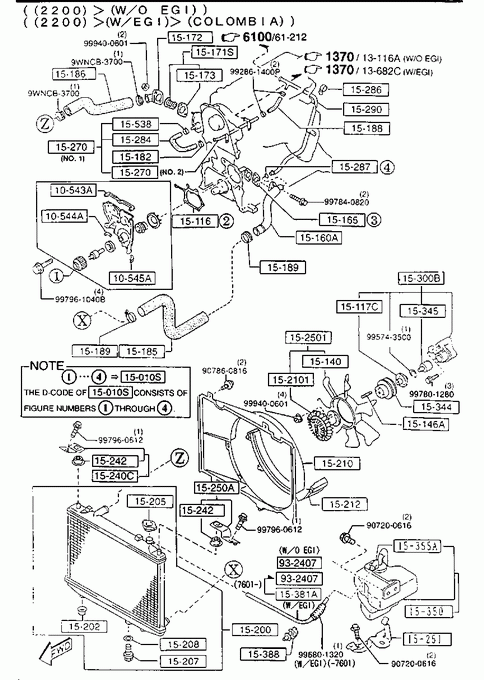

Cooling System(gasoline)

01/04 (1800)
02/04 ((2200)>(W/O EGI)) ((2200)>(W/EGI)>(COLOMBIA))
03/04 ((2200)>(W/EGI)>(GEN))
04/04 (2600)

SEAL(UP),RUBBER-WAT.PUMP

Part Number	Qty.	Specifications	Price
FE1H10543D	1	NOK 2200	€ 12,37

» 10544A

SEAL(LWR),RUBBER-WAT.PUMP

Part Number	Qty.	Specifications	Price
FE1H10544A	1	2200	€ 5,92

» 10545A

RUBBER,SEAL-WATER PUMP

Part Number	Qty.	Specifications	Price
FE1H10545A	1	2200	€ 5,92

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AG115010B	1	NON ASBESTOS 1800	€ 86,15
8AK115010A	1	2200	€ 121,23
8AL115010C	1	C (G601-15-010C) 2600	€ 144,01

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
FE1J15116A	1	NON ASBESTOS 2200	€ 8,27
FES115116	1	NON ASBESTOS 1800	€ 4,48
G61515116	1	2600	€ 9,15

» 15117C

HUB,FAN PULLEY

Part Number	Qty.	Specifications	Price
FE2H15117	1	2200

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
G60715141	1	2600
S21023906	1	1800 2200	€ 62,15

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
HE0115146	4		€ 2,61

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
FE1H15161	1	2200	€ 102,00
G60315161	1	2600

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
FECG15165	1	NON ASBESTOS 2200	€ 2,97
FES115165	1	NON ASBESTOS 1800	€ 3,51
G61215165	1	NON ASBESTOS 2600

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AU115171A	1	2600
8AZ415171	1	1800 2200

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
FE1H15172	1	AN (FE1H-15-172A) 1800 2200 - 980201 *UF0 -130286	€ 17,51
FE1H15172A	1	1800 2200 980201 - *UF0130286-	€ 18,22
G60115172	1	AN (G601-15-172A) 2600 - 990301	€ 21,91
G60115172A	1	2600 990301 -	€ 22,80

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B62115173	1	NON ASBESTOS	€ 5,10

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
KL0115182	1	2200 - 970801 *UF0 -121304	€ 2,24

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
F81C15185A	1	1800 2200	€ 12,76
G50315185C	1	2600	€ 19,47

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
F81C15186A	1	1800 2200
G50315186	1	2600

» 15188

HOSE,WATER BY-PASS

Part Number	Qty.	Specifications	Price
FE1H15288	1	2200	€ 4,67

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
AS0115182	2		€ 2,97

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
F2P515200A	1	AN (F2P5-15-200B) 2200 - 980224 *UF0 -131833	€ 591,38
F2P515200B	1	A (F2P5-15-200C) 2200 980224 - 020901 *UF0131833-	€ 591,38
F2P515200D	1	2200 020901 -
F81C15200A	1	AN (F81C-15-200B) 1800 - 980224 *UF0 -131833
F81C15200B	1	A (F81C-15-200C) 1800 980224 - *UF0131833-
G50315200A	1	A (G503-15-200B) 2600

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
E50115202	2	DENSO	€ 3,59

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
B3C715205	1	DENSO 1800 2200 - 980224 *UF0 -131833	€ 14,23
F2P515205	1	1800 2200 980224 - *UF0131833-

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
WL2115203	1		€ 7,36

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
071015204	1	DENSO	€ 1,74

» 15210

COWLING,RADIATOR-UP

Part Number	Qty.	Specifications	Price
F81C15211	1	1800 2200
G50315211A	1	2600

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
FE6623907	1	1800 2200	€ 224,15
G50315150	1	2600

» 15212

COWLING,RADIATOR-LWR

Part Number	Qty.	Specifications	Price
F81C15212	1	1800 2200
G50315212	1	2600

» 15240C

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
F81C15240B	1	A (F81C-15-240C) 1800 2200 - 980901 *UF0 -141688
F81C15240C	1	1800 2200 980901 - *UF0141688-
WL2115240B	1	A (WL21-15-240C) 2600 - 980901 *UF0 -141688	€ 26,11
WL2115240C	1	2600 980901 - *UF0141688-	€ 27,16

» 15242

RUBBER,MOUNT-RADIATOR

Part Number	Qty.	Specifications	Price
B6BF15242A	2		€ 2,64

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
FE6615140	1	AN (FE66-15-140A) 1800 2200 - 040427	€ 185,53
FE6615140A	1	2200 040427 -
G50315140	1	AN (G503-15-140A) 2600

» 15250A

BRACKET(L),RADIATOR

Part Number	Qty.	Specifications	Price
F81C15250B	1	A (F81C-15-250C) 1800 2200 - 980901 *UF0 -141688
F81C15250C	1	1800 2200 980901 - *UF0141688-
WL2115250B	1	A (WL21-15-250C) 2600 - 980901 *UF0 -141688	€ 26,11
WL2115250C	1	2600 980901 - *UF0141688-	€ 27,16

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
048353241A	1	1800 (2200>W/O EGI)
G60715370	1	2600 (2200>W/EGI)	€ 14,64

» 15270

PIPE,WATER BY PASS

Part Number	Qty.	Specifications	Price
F21415260	1	AN (F214-15-260A) ILLUST. NO.1 (2200>W/O EGI) (2200>W/EGI>COLOMBIA) - 970801 *UF0 -121304
F21415260A	1	ILLUST. NO.1 (2200>W/O EGI) (2200>W/EGI>COLOMBIA) 970801 - *UF0121304-
F21415270	1	ILLUST. NO.2 (2200>W/O EGI) (2200>W/EGI>COLOMBIA)
F65015270A	1	1800
FE6615270A	1	(2200>W/EGI>GEN)	€ 19,04

» 15284

HOSE,WATER

Part Number	Qty.	Specifications	Price
F65015284	1	1800
FE6515284B	1	2200	€ 5,10

» 15286

CLIP,BYPASS PIPE

Part Number	Qty.	Specifications	Price
FE6615286	1	1800 2200

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
F21415290A	1	2200	€ 23,90
F65015290	1	1800
G60115290	1	2600

» 15300B

BRACKET,FAN

Part Number	Qty.	Specifications	Price
FE2H15340	1	2200	€ 139,00
FE6515300E	1	1800

» 15344

PULLEY,FAN

Part Number	Qty.	Specifications	Price
029079258A	1	1800 2200	€ 23,24

» 15345

SHAFT,BEARING-FAN BRKT.

Part Number	Qty.	Specifications	Price
F85115345A	1	1800	€ 54,99
FE2H15345A	1	2200

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
105215350C	1	AN (1052-15-350D) 1800 (2200>W/O EGI) - 980901 *UF0 -141688	€ 32,61
105215350D	1	1800 (2200>W/O EGI) 980901 - *UF0141688-	€ 33,93
G60715350A	1	2600 (2200>W/EGI)

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
105215355A	1	1800 (2200>W/O EGI)
G60715355	1	2600 (2200>W/EGI)	€ 10,32

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
G50315381B	1	2600 (2200>W/EGI) - 970601 *UF0 -117991

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
F20115388A	1		€ 1,86

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
JF0115538	1	1800 2200	€ 2,61

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801320	1		€ 2,27

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407440	1	1800 (2200>W/O EGI)
9932407800	1	2600 (2200>W/EGI) 970601 - *UF0117991-	€ 5,65

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700	1		€ 2,97

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995743500	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997801280	1		€ 3,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840820	1		€ 2,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961040B	1		€ 2,69

Cooling System(gasoline)
