Starter 01/02 (2.0KW)(-5201) (2.2KW) 02/02 (2.0KW)(5201-)

Starter |

Mazda parts catalog

Parts > Mazda B2600 > 1989-09 > Diesel-engine Supplement > Starter

Search by part number:

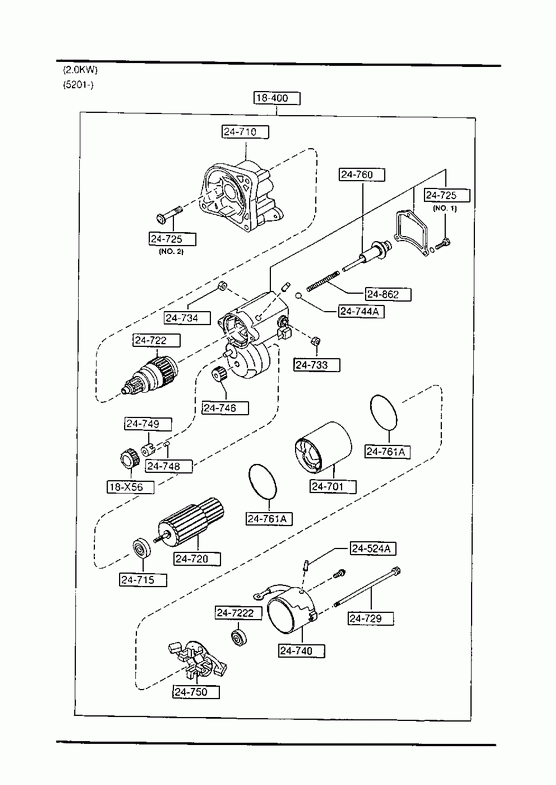

Starter(diesel)

01/02 (2.0KW)(-5201) (2.2KW)
02/02 (2.0KW)(5201-)

STARTER

Part Number	Qty.	Specifications	Price
R20118400A	1	ASBESTOS 12V-2.2KW - 891121 UF2 -600040*	€ 481,19
R20118400B	1	NON ASBESTOS 12V-2.2KW 891121 - 900124 UF2600040-601549*	€ 481,19
R20118400C	1	NON ASBESTOS 12V-2.2KW 900124 - UF2601549-*	€ 481,19
RF0118400	1	ASBESTOS 12V-2.0KW - 900101 UF2 -601250*	€ 405,96
RF0118400A	1	NON ASBESTOS 12V-2.0KW 900101 - 950201 UF2601250-621534*	€ 405,96
RFL118400	1	A (RFL1-18-400A) 12V-2.0KW 950201 - UF2621534-*	€ 443,63

» 18X56

GEAR,INTERNAL-STARTER

Part Number	Qty.	Specifications	Price
RFL118X56	1	12V-2.0KW 950201 - UF2621534-*	€ 17,16

» 24524A

BUSH

Part Number	Qty.	Specifications	Price
RFL118X86	1	12V-2.0KW 950201 - 950701 UF2621534-622489*
WL0118X86	1	12V-2.0KW 950701 - UF2622489-*	€ 8,10

» 24701

YOKE

Part Number	Qty.	Specifications	Price
R20124730	1	12V-2.2KW - 900124 UF2 -601549*	€ 189,83
R20124730A	1	A (F2SH-18-X65) 12V-2.2KW 900124 - UF2601549-*
RF0124730	1	12V-2.0KW - 950201 UF2 -621534*	€ 159,94
RFL118X65	1	12V-2.0KW 950201 - UF2621534-*	€ 258,67

» 24710

BRACKET,FRONT

Part Number	Qty.	Specifications	Price
R20124710A	1	12V-2.2KW - 900124 UF2 -601549*	€ 68,28
R20124710B	1	12V-2.2KW 900124 - UF2601549-*
RFL118X00	1	12V-2.0KW 950201 - UF2621534-*	€ 104,26

» 24715

SLEEVE,BEARING

Part Number	Qty.	Specifications	Price
R20124715	1	12V-2.2KW	€ 7,75
RFL118X63	1	12V-2.0KW 950201 - UF2621534-*	€ 15,36

» 24720

ARMATURE

Part Number	Qty.	Specifications	Price
PN2318X60	1	NON ASBESTOS 12V-2.2KW 900124 - UF2601549-*	€ 481,97
R20118X60	1	NON ASBESTOS 12V-2.2KW 891121 - 900124 UF2600040-601549*
R20124705	1	ASBESTOS 12V-2.2KW - 891121 UF2 -600040*	€ 314,70
RF0124705	1	ASBESTOS 12V-2.0KW - 900101 UF2 -601250*
RF0124705A	1	NON ASBESTOS 12V-2.0KW 900101 - 950201 UF2601250-621534*	€ 302,57
RFL118X60	1	12V-2.0KW 950201 - UF2621534-*	€ 430,03

» 24722

CLUTCH,OVER RUNNING

Part Number	Qty.	Specifications	Price
RF0124745	1	12V-2.0KW - 950201 UF2 -621534*	€ 201,36
RFL118X45	1	12V-2.0KW 950201 - UF2621534-*	€ 332,93

» 247222

SLEEVE,BEARING-REAR

Part Number	Qty.	Specifications	Price
859924722	1	12V-2.2KW	€ 25,20
RF0124722	1	12V-2.0KW - 950201 UF2 -621534*	€ 17,60
RFL118X62	1	12V-2.0KW 950201 - UF2621534-*	€ 12,44

» 24725

SCREW SET

Part Number	Qty.	Specifications	Price
484024728	1	12V-2.2KW 900124 - UF2601549-*
PN1218X95	1	12V-2.2KW - 900124 UF2 -601549*
RFL118X95	2	ILLUST. NO.1 12V-2.0KW 950201 - 950701 UF2621534-622489*
RFL118X96	2	ILLUST. NO.2 12V-2.0KW 950201 - UF2621534-*	€ 3,05
WL0118X96	2	ILLUST. NO.1 12V-2.0KW 950701 - UF2622489-*	€ 3,29

» 24729

BOLT

Part Number	Qty.	Specifications	Price
RFL118X90	2	12V-2.0KW 950201 - UF2621534-*	€ 8,52

» 24733

NUT

Part Number	Qty.	Specifications	Price
RFL118X12	1	12V-2.0KW 950201 - UF2621534-*	€ 2,65

» 24734

NUT

Part Number	Qty.	Specifications	Price
RF0124734	1	12V-2.0KW - 950201 UF2 -621534*	€ 1,98
RFL118X13	1	12V-2.0KW 950201 - UF2621534-*	€ 3,05

» 24740

BRACKET,REAR

Part Number	Qty.	Specifications	Price
859924720	1	12V-2.2KW 900124 - UF2601549-*	€ 31,27
R20124720	1	12V-2.2KW - 900124 UF2 -601549*	€ 34,42
RFL118X80	1	12V-2.0KW 950201 - UF2621534-*	€ 52,26

» 24744A

BALL,STEEL

Part Number	Qty.	Specifications	Price
RF0124744	1	12V-2.0KW - 950201 UF2 -621534*
RFL118X93	1	12V-2.0KW 950201 - UF2621534-*	€ 0,79

» 24746

GEAR

Part Number	Qty.	Specifications	Price
859924746	1	12V-2.2KW
RFL118X57	1	12V-2.0KW 950201 - UF2621534-*	€ 15,40

» 24748

ROLLER,CLUTCH

Part Number	Qty.	Specifications	Price
RF0124748	5	12V-2.0KW	€ 1,32

» 24749

RETAINER

Part Number	Qty.	Specifications	Price
RF0124749	1	12V-2.0KW - 950201 UF2 -621534*
RFL118X42	1	12V-2.0KW 950201 - UF2621534-*	€ 3,48

» 24750

HOLDER,BRUSH

Part Number	Qty.	Specifications	Price
859924750	1	A (F2SS-18-X70) 12V-2.2KW 900124 - UF2601549-*	€ 28,16
R20124750	1	12V-2.2KW - 900124 UF2 -601549*	€ 30,97
RF0124750	1	12V-2.0KW - 950201 UF2 -621534*	€ 61,93
RFL118X70	1	12V-2.0KW 950201 - UF2621534-*	€ 69,19

» 24760

SWITCH

Part Number	Qty.	Specifications	Price
R20124736	1	12V-2.2KW	€ 191,79
RF0124736	1	12V-2.0KW - 950201 UF2 -621534*	€ 243,83
RFL118X10	1	AN (RFL1-18-X10A) 12V-2.0KW 950201 - UF2621534-*	€ 329,15

» 24761A

RING,'O'

Part Number	Qty.	Specifications	Price
RF0124761	2	12V-2.0KW - 950201 UF2 -621534*
RFL118X68	2	12V-2.0KW 950201 - UF2621534-*	€ 7,05

» 24862

SPRING

Part Number	Qty.	Specifications	Price
RFL118X15	1	12V-2.0KW 950201 - UF2621534-*	€ 3,31

Starter(diesel)
