Trims & Scuff Plates 01/02 (W/O RAP) 02/02 (W/RAP)

Trims & Scuff Plates |

Mazda parts catalog

Parts > Mazda B2500 > 2002-08 > Body Interior Trim > Trims & Scuff Plates

Search by part number:

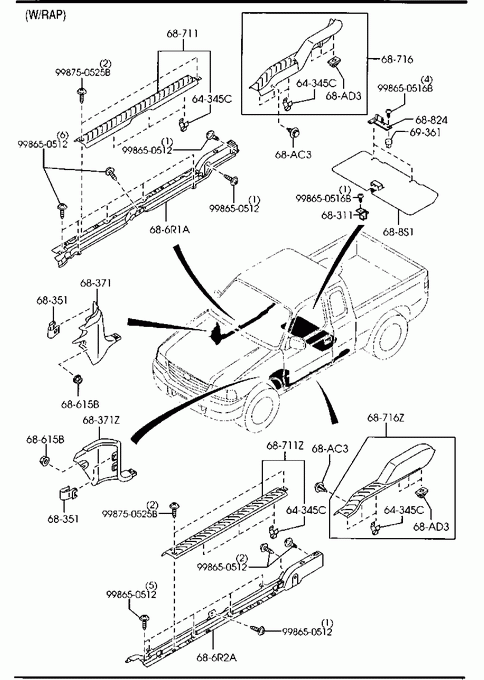

Trims & Scuff Plates(cab Plus)

SPRING,UPPER PLATE

Part Number	Qty.	Specifications	Price
UH7164345	12	W/RAP

» 68311

HOOK

Part Number	Qty.	Specifications	Price
UH89688S3	1

» 68351

BRKT,FRT SIDE TRIM

Part Number	Qty.	Specifications	Price
UH7268352	2

» 68371

TRIM(R),FRONT SIDE

Part Number	Qty.	Specifications	Price
UH7168370C	1	- 060301 UN2 -420799*
UR5668370A	1	060301 - 060327 UN2420799-423567*

» 68371Z

TRIM(L),FRONT SIDE

Part Number	Qty.	Specifications	Price
UH7168390C	1	- 060301 UN2 -420799*
UR5668390A	1	060301 - 060327 UN2420799-423567*

» 68615B

NUT,FLANGE-CAP

Part Number	Qty.	Specifications	Price
UH8068615	2

» 686R1A

GUARD(R),HARNESS-FRONT

Part Number	Qty.	Specifications	Price
UH71686R1F	1	W/O RAP	€ 9,93
UM46686R1B	1	W/RAP

» 686R2A

GUARD(L),HARNESS-FRONT

Part Number	Qty.	Specifications	Price
UH71686R2F	1	A (UH71-68-6R2G) W/O RAP - 040301 UN2 -347697*	€ 8,94
UH71686R2G	1	A (UH71-68-6R2H) W/O RAP 040301 - 040517 UN2347697-354178*
UH71686R2H	1	W/O RAP 040517 - UN2354178-*
UM46686R2B	1	A (UM46-68-6R2C) W/RAP - 040301 UN2 -347697*
UM46686R2C	1	A (UM46-68-6R2D) W/RAP 040301 - 040517 UN2347697-354178*
UM46686R2D	1	W/RAP 040517 - UN2354178-*

» 68711

PLATE(R),FRONT SCUFF

Part Number	Qty.	Specifications	Price
UH7168710F	1	W/O RAP
UM4668710B	1	W/RAP

» 68711Z

PLATE(L),FRONT SCUFF

Part Number	Qty.	Specifications	Price
UH7168720F	1	W/O RAP
UM4668720B	1	W/RAP

» 68716

PLATE(R),REAR SCUFF

Part Number	Qty.	Specifications	Price
UM4668730A	1	W/RAP

» 68716Z

PLATE(L),REAR SCUFF

Part Number	Qty.	Specifications	Price
UM4668740A	1	W/RAP

» 68824

HINGE

Part Number	Qty.	Specifications	Price
UH82688S5	2	AN (UH89-68-8S5) - 020901 UN2 -301815*
UH89688S5	2	020901 - UN2301815-*

» 688S1

COVER,JACK

Part Number	Qty.	Specifications	Price
UH83688S0	1	W/O RAP
UM85688S0	1	W/RAP

» 68AC3

FASTENER

Part Number	Qty.	Specifications	Price
UH7168AC3	2	W/RAP

» 68AD3

CLIP,SCUFF PLATE

Part Number	Qty.	Specifications	Price
UM4668AD3	6	W/RAP	€ 0,38

» 69361

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
UH8269361	4

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650512	1		€ 0,66

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998750525B	1		€ 1,01

Trims & Scuff Plates(cab Plus)
