Front Seats 01/03 (MATERIAL) 02/03 (PASSENGER SIDE) 03/03 (DRIVER SIDE)

Front Seats |

Mazda parts catalog

Parts > Mazda B2500 > 2002-08 > Body Interior Trim > Front Seats

Search by part number:

Front Seats(cab Plus)

01/03 (MATERIAL)
02/03 (PASSENGER SIDE)

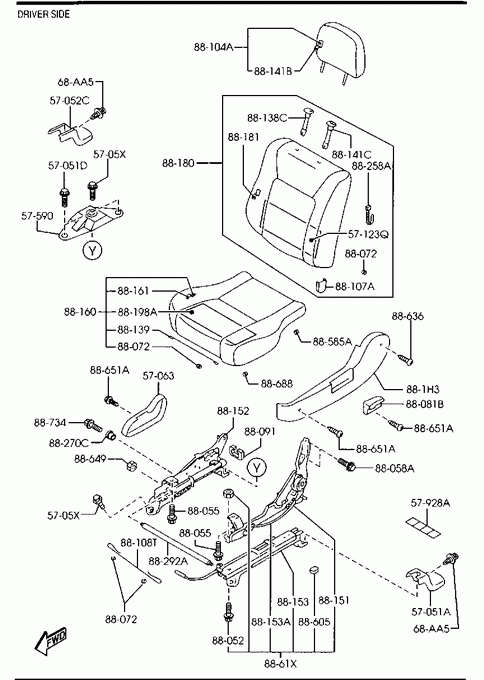

03/03 (DRIVER SIDE)

COVER'A',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
UH7157051	2

» 57051D

BOLT,SET

Part Number	Qty.	Specifications	Price
UH715705X	4

» 57052C

COVER'B',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
UH7157052	2

» 5705X

BOLT,LINK

Part Number	Qty.	Specifications	Price
UH725705X	8

» 57063

COVER(L),BELT

Part Number	Qty.	Specifications	Price
UH7188315	1

» 57123Q

HEATER NO.2(L),SEAT

Part Number	Qty.	Specifications	Price
UJ0888172	1	A (US42-88-172) W/FRT. SEAT WARM. - 050704 UN2 -397303*
US4288172	1	W/FRT. SEAT WARM. 050704 - UN2397303-*

» 57590

BRACKET(L),FRT SEAT

Part Number	Qty.	Specifications	Price
UH7257590	1

» 57928A

SPACER

Part Number	Qty.	Specifications	Price
UM46575B0	1

» 68AA5

FASTENER,DOOR TRIM

Part Number	Qty.	Specifications	Price
UH7168AA5	4

» 88052

BOLT

Part Number	Qty.	Specifications	Price
UH7088062	4

» 88055

BOLT

Part Number	Qty.	Specifications	Price
UH7188062	8

» 88058A

BOLT

Part Number	Qty.	Specifications	Price
UH7188061	4

» 88072

CLIP

Part Number	Qty.	Specifications	Price
UH7188072	52

» 88081B

KNOB(L),KNUCKLE

Part Number	Qty.	Specifications	Price
UH71881H5	1

» 88091

RAIL,PROTECTOR

Part Number	Qty.	Specifications	Price
UH7188091	2

» 88104A

RESTRAINT,HEAD

Part Number	Qty.	Specifications	Price
UM6788140	2	(STD TYPE>SEAT HEADREST-STD) (STE TYPE>SEAT HEADREST-STD) - 040301 UN2 -347697*
UM6788140A	2	(STD TYPE>SEAT HEADREST-STD) (STE TYPE>SEAT HEADREST-STD) 040301 - 040628 UN2347697-358111*
UN0888140	2	STA TYPE STB TYPE - 040301 UN2 -347697*
UN0888140A	2	STA TYPE STB TYPE 040301 - UN2347697-*
UN0988140	2	(STD TYPE>SEAT HEADREST-LARGE) (STE TYPE>SEAT HEADREST-LARGE) - 040301 UN2 -347697*
UN0988140A	2	(STD TYPE>SEAT HEADREST-LARGE) (STE TYPE>SEAT HEADREST-LARGE) 040301 - 040628 UN2347697-358111*
US2988140	2	(STH TYPE>SEAT HEADREST-STD) (STK TYPE>SEAT HEADREST-STD) 040628 - UN2358111-*
US4088140	2	(STH TYPE>SEAT HEADREST-LARGE) (STK TYPE>SEAT HEADREST-LARGE) 040628 - UN2358111-*

» 88107A

COVER,HINGE

Part Number	Qty.	Specifications	Price
UH71881J2	2

» 88108T

WIRE,RELEASE

Part Number	Qty.	Specifications	Price
UH7188106	2

» 88138C

GUIDE,POLE-NO.2

Part Number	Qty.	Specifications	Price
UH71881G9	2	- 051219 UN2 -413618*
UH71881G9A	2	051219 - UN2413618-*

» 88139

WIRE,TRIM

Part Number	Qty.	Specifications	Price
UH7188139	2

» 88141C

GUIDE,POLE-NO.1

Part Number	Qty.	Specifications	Price
UH71881G8	2

» 88151

KNUCKLE(L),RECLINING

Part Number	Qty.	Specifications	Price
UH8388155	1		€ 182,90

» 88152

ADJUSTER NO.3

Part Number	Qty.	Specifications	Price
UH8388152B	1		€ 47,11

» 88153

ADJUSTER NO.4

Part Number	Qty.	Specifications	Price
UH8388153B	1

» 88153A

CABLE

Part Number	Qty.	Specifications	Price
UJ0788287	1

» 88160

CUSHION(L),FRT SEAT

Part Number	Qty.	Specifications	Price
UJ7788160	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UJ7788160A	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) 040301 - UN2347697-*
UM6788160	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6788160A	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
UM6888160	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6888160A	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) 040301 - UN2347697-*
UN0788160	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UN0788160A	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
US2988160	1	(STH TYPE>W/O FRT. SEAT WARM.) (STK TYPE>W/O FRT. SEAT WARM.) 040628 - UN2358111-*
US4288160	1	(STH TYPE>W/FRT. SEAT WARM.) (STK TYPE>W/FRT. SEAT WARM.) 040628 - UN2358111-*

» 88161

TRIM(L),SEAT CUSHION

Part Number	Qty.	Specifications	Price
UJ7788161	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UJ7788161A	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) 040301 - UN2347697-*
UM6788161	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6788161A	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
UM6888161	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6888161A	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) 040301 - UN2347697-*
UN0788161	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UN0788161A	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
US2988161	1	STH TYPE STK TYPE 040628 - UN2358111-*

» 88180

BACK(L),FRONT SEAT

Part Number	Qty.	Specifications	Price
UK1988180	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UK1988180A	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) 040301 - 051219 UN2347697-413618*
UK1988180B	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) 051219 - UN2413618-*
UM6788180	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6788180A	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
UM6888180	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6888180A	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) 040301 - 051219 UN2347697-413618*
UM6888180B	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) 051219 - UN2413618-*
UN0788180	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UN0788180A	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
US4088180	1	(STH TYPE>W/O FRT. SEAT WARM.) (STK TYPE>W/O FRT. SEAT WARM.) 040628 - 051219 UN2358111-413618*
US4088180A	1	(STH TYPE>W/O FRT. SEAT WARM.) (STK TYPE>W/O FRT. SEAT WARM.) 051219 - UN2413618-*
US4288180	1	(STH TYPE>W/FRT. SEAT WARM.) (STK TYPE>W/FRT. SEAT WARM.) 040628 - 051219 UN2358111-413618*
US4288180A	1	(STH TYPE>W/FRT. SEAT WARM.) (STK TYPE>W/FRT. SEAT WARM.) 051219 - UN2413618-*

» 88181

TRIM(L),SEAT BACK

Part Number	Qty.	Specifications	Price
UK1988181	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UK1988181A	1	(STA TYPE>W/FRT. SEAT WARM.) (STB TYPE>W/FRT. SEAT WARM.) 040301 - UN2347697-*
UM6788181	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6788181A	1	(STD TYPE>W/O FRT. SEAT WARM.) (STE TYPE>W/O FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
UM6888181	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) - 040301 UN2 -347697*
UM6888181A	1	(STA TYPE>W/O FRT. SEAT WARM.) (STB TYPE>W/O FRT. SEAT WARM.) 040301 - UN2347697-*
UN0788181	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) - 040301 UN2 -347697*
UN0788181A	1	(STD TYPE>W/FRT. SEAT WARM.) (STE TYPE>W/FRT. SEAT WARM.) 040301 - 040628 UN2347697-358111*
US4088181	1	STH TYPE STK TYPE 040628 - UN2358111-*

» 88198A

HEATER,SEAT-CUSHION

Part Number	Qty.	Specifications	Price
UJ0888171	1	W/FRT. SEAT WARM. - 050704 UN2 -397303*
US4288171	1	W/FRT. SEAT WARM. 050704 - UN2397303-*

» 881H3

COVER NO.4,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
UH71881H3	1

» 88258A

STOPPER

Part Number	Qty.	Specifications	Price
UH7188104	4

» 88270C

BUSH,HINGE

Part Number	Qty.	Specifications	Price
UH7188270	2

» 88292A

SHAFT,KNUCKLE

Part Number	Qty.	Specifications	Price
UH8388292	2		€ 5,61

» 88585A

CLIP

Part Number	Qty.	Specifications	Price
UJ0688126	4	W/FRT. SEAT WARM.

» 88605

KNOB

Part Number	Qty.	Specifications	Price
UH7188083	1

» 8861X

ADJUSTER UNIT(L),FRT SEAT

Part Number	Qty.	Specifications	Price
UH8388A50B	1		€ 131,88

» 88636

SCREW

Part Number	Qty.	Specifications	Price
UH7188067	2

» 88649

NUT,FRANGE

Part Number	Qty.	Specifications	Price
UH8388087	4

» 88651A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
UH7188651	6

» 88688

CLIP

Part Number	Qty.	Specifications	Price
UH8388126	4	W/FRT. SEAT WARM.

» 88734

BOLT

Part Number	Qty.	Specifications	Price
UH7188764	2

Front Seats(cab Plus)
