Mazda B2500 UN 2002-08 Mazda Rear Combination Lamps 01/04 02/04 (W/RR FOG LAMP+W/O RR.BUMPER) 03/04 (W/RR FOG LAMP+W/RR.BUMPER,FOR ECE TYPE) 04/04 (W/RR FOG LAMP+W/RR.BUMPER,FOR STD TYPE)

Mazda parts catalog

Parts > Mazda B2500 > 2002-08 > Body Electronics > Rear Combination Lamps

Search by part number:

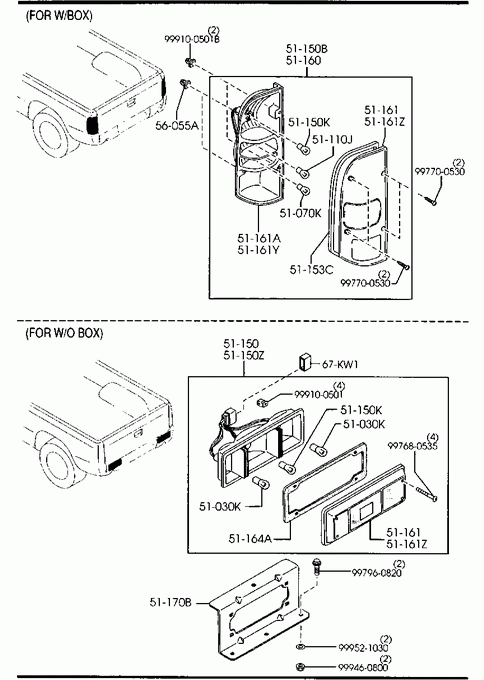

Rear Combination Lamps

01/04
02/04 (W/RR FOG LAMP+W/O RR.BUMPER)
03/04 (W/RR FOG LAMP+W/RR.BUMPER,FOR ECE TYPE)
04/04 (W/RR FOG LAMP+W/RR.BUMPER,FOR STD TYPE)

» 51030K

BULB

Part Number	Qty.	Specifications	Price
997013210	4	12V 21W FOR W/O BOX	€ 0,54

» 51070K

BULB

Part Number	Qty.	Specifications	Price
997007180	2	A12V 18.4W FOR W/BOX	€ 2,80

» 51110J

BULB

Part Number	Qty.	Specifications	Price
997013210Y	2	12V 21W YELLOW FOR W/BOX	€ 1,63

» 51150

LAMP SET(R),RR.COMB.

Part Number	Qty.	Specifications	Price
8BUE51150	1	FOR W/O BOX - 040601 UN2 -355472*	€ 51,55
UM4851150	1	FOR W/O BOX 040601 - UN2355472-*	€ 28,19

» 51150B

LAMP(R),RR COMB.

Part Number	Qty.	Specifications	Price
UM4751150A	1	FOR W/BOX	€ 37,12

» 51150K

BULB

Part Number	Qty.	Specifications	Price
997014215	2	12V 21/5W	€ 0,79

» 51150Z

LAMP SET(L),RR.COMB.

Part Number	Qty.	Specifications	Price
8BUE51160	1	FOR W/O BOX - 040601 UN2 -355472*	€ 51,55
UM4851160	1	FOR W/O BOX 040601 - UN2355472-*	€ 28,19

» 51153C

GASKET,BASE

Part Number	Qty.	Specifications	Price
UM4751157	2	FOR W/BOX	€ 2,37

» 51160

LAMP(L),RR COMB.

Part Number	Qty.	Specifications	Price
UM4751160A	1	FOR W/BOX	€ 36,65

» 51161

LENS(R),RR.COMB.

Part Number	Qty.	Specifications	Price
898251151C	1	FOR W/O BOX - 040601 UN2 -355472*	€ 28,80
UM475115YA	1	FOR W/BOX	€ 7,80
UM485115X	1	FOR W/O BOX 040601 - UN2355472-*

» 51161A

LENS & BODY(R),RR COMB.

Part Number	Qty.	Specifications	Price
UM4751170A	1	FOR W/BOX	€ 22,36

» 51161Y

LENS & BODY(L),RR COMB.

Part Number	Qty.	Specifications	Price
UM4751180A	1	FOR W/BOX	€ 22,36

» 51161Z

LENS(L),RR.COMB.

Part Number	Qty.	Specifications	Price
898251161C	1	FOR W/O BOX - 040601 UN2 -355472*	€ 28,53
UM475116YA	1	FOR W/BOX	€ 7,70
UM485116X	1	FOR W/O BOX 040601 - UN2355472-*

» 51164A

GASKET,RR COMB.

Part Number	Qty.	Specifications	Price
139151153	2	FOR W/O BOX - 040601 UN2 -355472*	€ 5,93

» 51170B

BRACKET,REAR COMB.

Part Number	Qty.	Specifications	Price
UH7651172	2	A (UH76-51-172A) FOR W/O BOX - 050501 UN2 -390965*
UH7651172A	2	A (UH76-51-172B) FOR W/O BOX 050501 - 050601 UN2390965-394476*
UH7651172B	2	FOR W/O BOX 050601 - UN2394476-*

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
UH7251832	4	FOR W/BOX	€ 0,17

» 67KW1

CAP,CONNECTOR-REAR HARNESS

Part Number	Qty.	Specifications	Price
UH7067KW1	2	FOR W/O BOX

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997700530	1		€ 1,19

» 90901

NUT

Part Number	Qty.	Specifications	Price
999460800	1		€ 2,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997680535	1		€ 2,31

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999521030	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501B	1		€ 1,15
