Air Conditioner 01/02 (HOSE & CONDENSER) 02/02 (CLIP & BRACKET)

Air Conditioner |

Mazda parts catalog

Parts > Mazda B2200 > 1996-03 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner(gasoline)
01/02 (HOSE & CONDENSER)

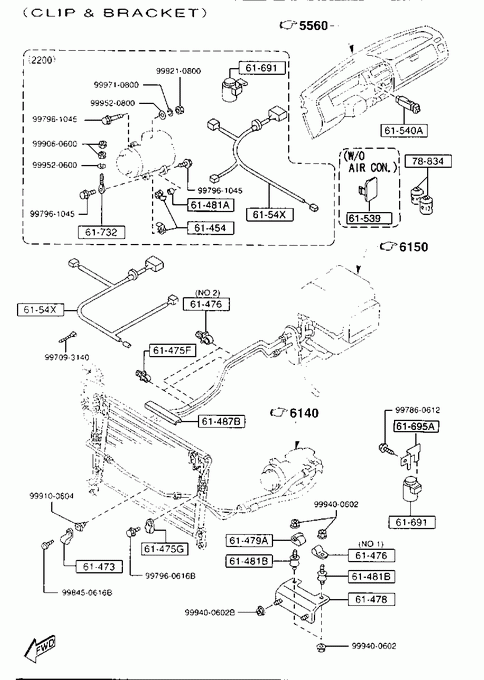

02/02 (CLIP & BRACKET)

» 61454 NUT,COMPRESSOR

Part Number Qty. Specifications Price
UB8361454 2 2200

» 61473 CLIP,PIPE

Part Number Qty. Specifications Price
UG5261473 1

» 61475F CLIP

Part Number Qty. Specifications Price
UB8261475 2
€ 2,09

» 61475G CLIP

Part Number Qty. Specifications Price
UB8361475 1

» 61476 CLIP

Part Number Qty. Specifications Price
N00161476A 1 ILLUST. NO.1

UB8261476 2 ILLUST. NO.2

» 61478 BRACKET

Part Number Qty. Specifications Price
U01161471 1

» 61479A CLIP

Part Number Qty. Specifications Price
B11161479 1

» 61481A SPACER

Part Number Qty. Specifications Price
UB8261477 1 2200

» 61481B RUBBER,INSULATOR

Part Number Qty. Specifications Price
FD0461481 2
€ 7,53

» 61487B PROTECTOR

Part Number Qty. Specifications Price
UB8261488 1

» 61539 COVER,AIRCON. SWITCH

Part Number Qty. Specifications Price
UG9661539 1 W/O AIR CON.
€ 1,75

» 61540A SWITCH,AIR CON.

Part Number Qty. Specifications Price
BC1M61530A 1
€ 63,30

» 6154X HARNESS,COMPRESSOR-COOLER

Part Number Qty. Specifications Price
UG526154XC 1 2600

UG796154XC 1 2200

» 61691 RELAY

Part Number Qty. Specifications Price
FB0161691 1 2600
€ 25,13
UG5061691 1 2200
960601 -
UF***2701048-
UG7961690 1 A (UG50-61-691)
2200
- 960601
UF***2 -701048

» 61695A BRACKET,RELAY

Part Number Qty. Specifications Price
UE5361695 1 2600
€ 9,21

» 61732 BOLT

Part Number Qty. Specifications Price
H20061732 1 2200

» 78834 REFRIGERANT DRUM

Part Number Qty. Specifications Price
LB4061R13 1 250G

W32361R13 1 300G

» 90720 SCREW

Part Number Qty. Specifications Price
998450616B 1
€ 1,62

» 90901 NUT

Part Number Qty. Specifications Price
999060600 1
€ 0,57

» 90901 NUT

Part Number Qty. Specifications Price
999210800 1
€ 2,03

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400602 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400602B 1
€ 1,28

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860612 1
€ 1,58

» 99203 WASHER,PLAIN

Part Number Qty. Specifications Price
999520600 1
€ 0,51

» 99203 WASHER,PLAIN

Part Number Qty. Specifications Price
999520800 1
€ 0,49

» 99709 BAND

Part Number Qty. Specifications Price
997093140 1
€ 3,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616B 1
€ 0,48

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997961045 1
€ 2,52

» 99910 GROMMET,SCREW

Part Number Qty. Specifications Price
999100604 1
€ 1,89

» 99971 WASHER,SPRING

Part Number Qty. Specifications Price
999710800 1
€ 1,18

Part Number	Qty.	Specifications	Price
N00161476A	1	ILLUST. NO.1
UB8261476	2	ILLUST. NO.2

Part Number	Qty.	Specifications	Price
UG9661539	1	W/O AIR CON.	€ 1,75

Part Number	Qty.	Specifications	Price
FB0161691	1	2600	€ 25,13
UG5061691	1	2200 960601 - UF2701048-*
UG7961690	1	A (UG50-61-691) 2200 - 960601 UF2 -701048*

Air Conditioner(gasoline)
