Exhaust System 01/02 (-8803) 02/02 (8803-)

Exhaust System |

Mazda parts catalog

Parts > Mazda B2200 > 1996-03 > Diesel-engine Supplement > Exhaust System

Search by part number:

Exhaust System(diesel)

01/02 (-8803)

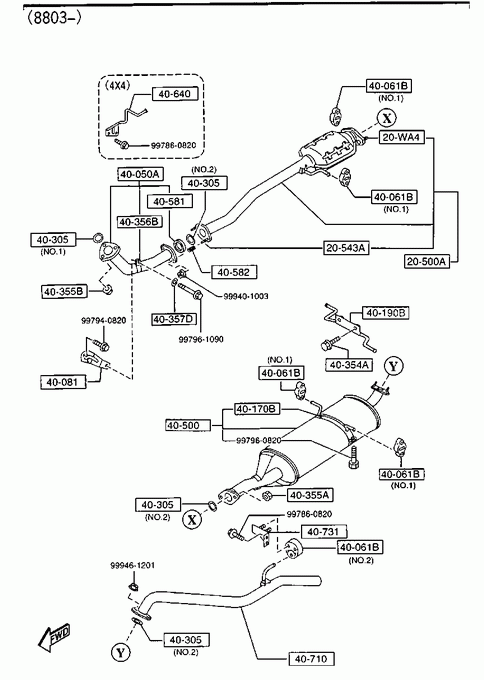

02/02 (8803-)

» 20500A

CONVERTER,CATALYST

Part Number	Qty.	Specifications	Price
WL4820600A	1	4X2 980803 -
WL4920600A	1	4X4 980803 -	€ 522,73

» 20543A

STUD

Part Number	Qty.	Specifications	Price
Z50320WA1	2	980803 -	€ 6,13

» 20WA4

BOLT

Part Number	Qty.	Specifications	Price
FS6120WA5	2	A (FSN5-20-WA5) 980803 - 981201 UF2 -720500*
FSN520WA5	2	981201 - UF2720500-*	€ 4,87

» 40050A

PIPE,EXHAUST-FRONT

Part Number	Qty.	Specifications	Price
WL1340500	1	4X2 - 980803	€ 102,71
WL1440500B	1	4X4 - 980803	€ 134,41
WL4140500A	1	980803 -	€ 228,47

» 40061B

RUBBER,HANGER

Part Number	Qty.	Specifications	Price
FE2040061	4	ILLUST. NO.1	€ 13,64
WL1340061A	1	A (WL13-40-061B) ILLUST. NO.2 - 961101 UF2 -703695*	€ 14,91
WL1340061B	1	A (WL42-40-061) ILLUST. NO.2 961101 - UF2703695-*	€ 15,51

» 40081

BRACKET,HANGER

Part Number	Qty.	Specifications	Price
WL1340080	1	4X2 - 980803
WL1440080	1	4X4 - 980803	€ 30,92
WL4140080A	1	AN (WL79-40-080) 980803 -	€ 12,00

» 40170B

BRACKET,MAIN SILENCER

Part Number	Qty.	Specifications	Price
WL0840170	1		€ 30,14

» 40190B

BRACKET,HANGER

Part Number	Qty.	Specifications	Price
WL0840190	1	- 980803	€ 18,38
WL4840190	1	980803 -

» 40305

GASKET

Part Number	Qty.	Specifications	Price
KL1540305	1	ILLUST. NO.1	€ 7,94
WL0140305	3	ILLUST. NO.2	€ 7,24

» 40354A

BOLT

Part Number	Qty.	Specifications	Price
FE2040354	2		€ 1,42

» 40355A

NUT

Part Number	Qty.	Specifications	Price
JE1140355	2	980803 -	€ 3,59

» 40355B

NUT

Part Number	Qty.	Specifications	Price
JE1040355	3		€ 4,95

» 40356B

BAND

Part Number	Qty.	Specifications	Price
G64640356	1	980803 -	€ 3,32
YJ0240356	1	- 980803	€ 6,49

» 40357D

WASHER

Part Number	Qty.	Specifications	Price
184540357	1	- 980803	€ 2,62
B30140357	1	SANO KOGYO 980803 -	€ 1,34

» 40500

SILENCER,MAIN

Part Number	Qty.	Specifications	Price
WL1340100B	1	AN (WL13-40-100C) - 960801 UF2 -701695*	€ 154,00
WL1340100C	1	960801 - 980803 UF2701695-*	€ 158,65
WL4840100A	1	980803 -	€ 512,51

» 40581

RING,SEAL

Part Number	Qty.	Specifications	Price
BP4840581A	1	980803 -	€ 12,47

» 40582

SPRING

Part Number	Qty.	Specifications	Price
BP4740582	2	980803 -	€ 10,39

» 40640

BRACKET

Part Number	Qty.	Specifications	Price
WL4940640	1	4X4 980803 -

» 40710

PIPE,TAIL-SILENCER

Part Number	Qty.	Specifications	Price
WL1340700B	1	4X2 - 980803	€ 84,28
WL1440700B	1	4X4 - 980803	€ 150,60
WL4840700A	1	4X2 980803 -
WL4940700A	1	4X4 980803 -	€ 155,15

» 40731

BRACKET

Part Number	Qty.	Specifications	Price
WL1340730B	1		€ 17,73

» 90901

NUT

Part Number	Qty.	Specifications	Price
999461201	1		€ 2,76

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401003	1		€ 2,18

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860820	1		€ 1,80

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961090	1		€ 2,51

Exhaust System(diesel)
