Parts > Mazda B2200 > 1996-03 > Gasoline-engine 4-cylinder Supplement > Cooling System

Search by part number:

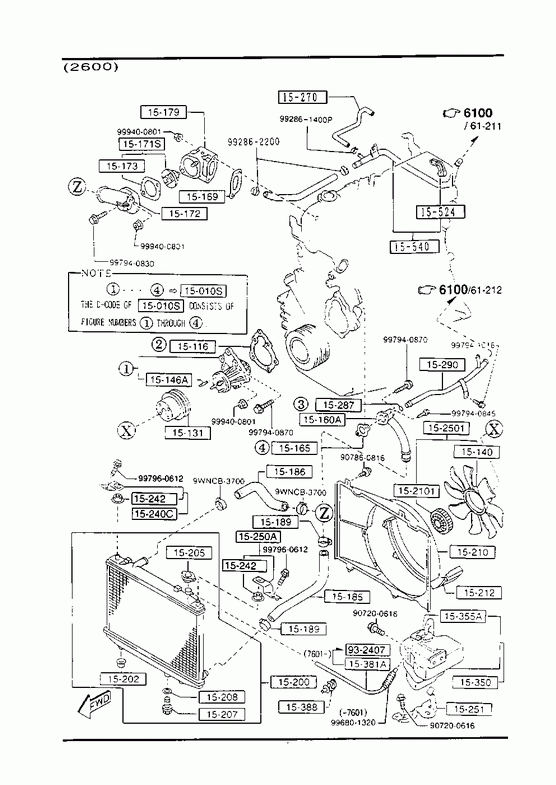

Cooling System(gasoline)

01/02 (2200)
02/02 (2600)

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AK115010A	1	2200	€ 121,23
8AL115010C	1	C (G601-15-010C) 2600	€ 144,01

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
FE1J15116A	1	NON ASBESTOS 2200	€ 8,27
G61515116	1	2600	€ 9,15

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
G60115131	1	2600

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
G60715141	1	2600
S21023906	1	2200	€ 62,15

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
HE0115146	4		€ 2,61

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
FE1H15161	1	2200	€ 102,00
G60315161	1	2600

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
FECG15165	1	NON ASBESTOS 2200	€ 2,97
G61215165	1	NON ASBESTOS 2600

» 15169

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
G61215169	1	NON ASBESTOS 2600	€ 2,53

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AK115171	1	NON ASBESTOS (2600>ECE)	€ 21,79
8AU115171A	1	(2600>BOLIVIA)
8AZ415171	1	2200

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
FE1H15172	1	AN (FE1H-15-172A) 2200 - 980201 UF2 -714202*	€ 17,51
FE1H15172A	1	2200 980201 - UF2714202-*	€ 18,22
G60115172	1	AN (G601-15-172A) 2600	€ 21,91

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B62115173	1	NON ASBESTOS	€ 5,10

» 15179

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
G60115170	1	2600	€ 48,30

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
F81C15185A	1	2200	€ 12,76
G50315185C	1	2600	€ 19,47

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
F81C15186A	1	2200
G50315186	1	2600

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
AS0115182	2		€ 2,97

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
F2P515200A	1	AN (F2P5-15-200B) 2200 - 980224 UF2 -714919*	€ 591,38
F2P515200B	1	A (F2P5-15-200C) 2200 980224 - UF2714919-*	€ 591,38
G50315200A	1	A (G503-15-200B) 2600

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
E50115202	2	DENSO	€ 3,59

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
B3C715205	1	DENSO 2200 - 980224 UF2 -714919*	€ 14,23
F2P515205	1	2200 980224 - UF2714919-*

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
WL2115203	1		€ 7,36

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
071015204	1	DENSO	€ 1,74

» 15210

COWLING,RADIATOR-UP

Part Number	Qty.	Specifications	Price
F81C15211	1	2200
G50315211A	1	2600

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
FE6623907	1	2200	€ 224,15
G50315150	1	2600

» 15212

COWLING,RADIATOR-LWR

Part Number	Qty.	Specifications	Price
F81C15212	1	2200
G50315212	1	2600

» 15240C

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
F81C15240B	1	A (F81C-15-240C) 2200 - 980901 UF2 -718264*
F81C15240C	1	2200 980901 - UF2718264-*
WL2115240B	1	A (WL21-15-240C) 2600 - 980901 UF2 -718264*	€ 26,11
WL2115240C	1	2600 980901 - UF2718264-*	€ 27,16

» 15242

RUBBER,MOUNT-RADIATOR

Part Number	Qty.	Specifications	Price
B6BF15242A	2		€ 2,64

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
FE6615140	1	2200	€ 185,53
G50315140	1	2600

» 15250A

BRACKET(L),RADIATOR

Part Number	Qty.	Specifications	Price
F81C15250B	1	A (F81C-15-250C) 2200 - 980901 UF2 -718264*
F81C15250C	1	2200 980901 - UF2718264-*
WL2115250B	1	A (WL21-15-250C) 2600 - 980901 UF2 -718264*	€ 26,11
WL2115250C	1	2600 980901 - UF2718264-*	€ 27,16

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
G60715370	1		€ 14,64

» 15270

PIPE,WATER BY PASS

Part Number	Qty.	Specifications	Price
FE6615270A	1	2200	€ 19,04
G60715261	1	2600

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
F21415290A	1	2200	€ 23,90
G60115290	1	2600

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
G60715350A	1

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
G60715355	1		€ 10,32

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
G50315381B	1	- 970601 UF2 -708667*

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
F20115388A	1		€ 1,86

» 15524

CLIP,WATER PIPE-OIL COOLER

Part Number	Qty.	Specifications	Price
G60715285A	1	2600

» 15540

PIPE,WATER-OIL COOLER

Part Number	Qty.	Specifications	Price
G60715540A	1	2600

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801320	1		€ 2,27

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940870	1		€ 2,69

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407800	1	970601 - UF2708667-*	€ 5,65

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200	1		€ 2,32

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700	1		€ 2,97

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940830	1		€ 2,31

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940845	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941016	1		€ 2,44

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

Cooling System(gasoline)
