Mazda 929 HD 1991-07 Mazda Starter

Mazda parts catalog

Parts > Mazda 929 > 1991-07 > Gasoline-engine V6-cylinder Supplement > Starter

Search by part number:

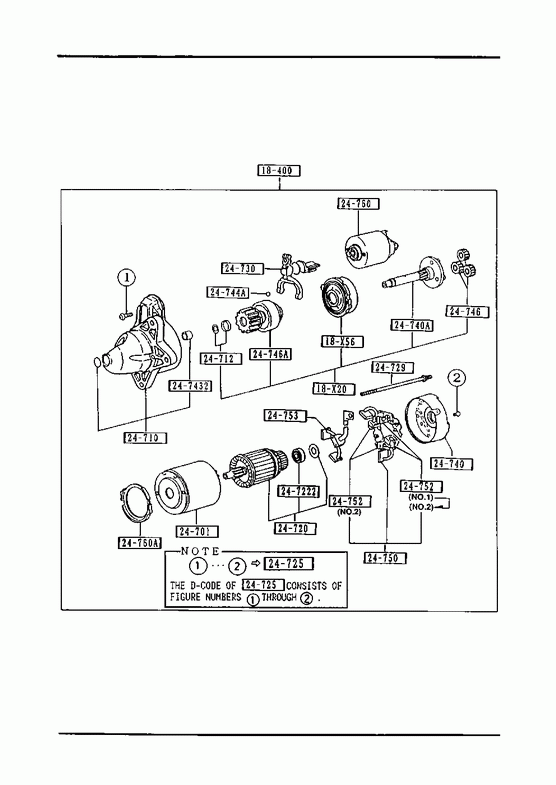

Starter

STARTER

Part Number	Qty.	Specifications	Price
JE2618400A	1	A (JE16-18-400B) - 930301 HD10 -106477**
JE2718400B	1	AN (JE27-18-400C) 930301 - HD10106477-**

» 18X20

SHAFT,PINION

Part Number	Qty.	Specifications	Price
JF0118X20	1

» 18X56

GEAR,INTERNAL-STARTER

Part Number	Qty.	Specifications	Price
F22518X56	1	MITSUBISHI	€ 30,65

» 24701

YOKE

Part Number	Qty.	Specifications	Price
JE0118X65	1	A (JE16-18-X65) - 930301 HD10 -106477**
JF0118X65	1	930301 - HD10106477-**	€ 135,04

» 24710

BRACKET,FRONT

Part Number	Qty.	Specifications	Price
JE2618X00	1	- 930301 HD10 -106477**
JE2718X00	1	930301 - HD10106477-**

» 24712

STOPPER SET

Part Number	Qty.	Specifications	Price
N32618X30	1	MITSUBISHI	€ 8,25

» 24720

ARMATURE

Part Number	Qty.	Specifications	Price
F21418X60A	1	NON ASBESTOS 930301 - HD10106477-**	€ 223,51
N32718X60A	1	NON ASBESTOS - 930301 HD10 -106477**	€ 228,87

» 247222

SLEEVE,BEARING-REAR

Part Number	Qty.	Specifications	Price
N32618X62A	1	MITSUBISHI	€ 10,67

» 24725

SCREW SET

Part Number	Qty.	Specifications	Price
E35618X95	1	MITSUBISHI	€ 2,95

» 24729

BOLT

Part Number	Qty.	Specifications	Price
JE0118X91	2	- 930301 HD10 -106477**	€ 5,30
N32618X91	2	930301 - HD10106477-**	€ 5,57

» 24730

LEVER

Part Number	Qty.	Specifications	Price
N32618X05	1		€ 9,51

» 24740

BRACKET,REAR

Part Number	Qty.	Specifications	Price
JF0118X80A	1		€ 28,73

» 24740A

SHAFT,PINION

Part Number	Qty.	Specifications	Price
JF0118X40	1		€ 158,34

» 247432

BEARING,FRONT

Part Number	Qty.	Specifications	Price
E35618X01	1	MITSUBISHI	€ 14,57

» 24744A

BALL,STEEL

Part Number	Qty.	Specifications	Price
N32618X93	1	MITSUBISHI	€ 0,94

» 24746

GEAR

Part Number	Qty.	Specifications	Price
N32618X57	3	MITSUBISHI	€ 15,37

» 24746A

PINION

Part Number	Qty.	Specifications	Price
JF0118X25	1		€ 54,77

» 24750

HOLDER,BRUSH

Part Number	Qty.	Specifications	Price
JE0118X70	1	- 930301 HD10 -106477**
JF0118X70	1	930301 - HD10106477-**	€ 34,25

» 24752

SPRING,BRUSH

Part Number	Qty.	Specifications	Price
N31818X71	2	ILLUST. NO.2 930301 - HD10106477-**	€ 3,57
N32618X71	2	ILLUST. NO.2 930301 - HD10106477-**	€ 3,57
N32718X71	4	ILLUST. NO.1 - 930301 HD10 -106477**	€ 3,47

» 24753

BRUSH,YOKE

Part Number	Qty.	Specifications	Price
JE0118X66A	1	- 930301 HD10 -106477**	€ 8,42
JE1518X66	1	930301 - HD10106477-**	€ 8,48

» 24760

SWITCH

Part Number	Qty.	Specifications	Price
JE2618X10	1

» 24760A

GASKET

Part Number	Qty.	Specifications	Price
N32618X87	1		€ 3,46
