Mazda 929 HC 1989-06 Mazda Air Conditioner 01/02 (2000)(2200) 02/02 (3000)

Mazda parts catalog

Parts > Mazda 929 > 1989-06 > Body Interior Trim > Air Conditioner

Search by part number:

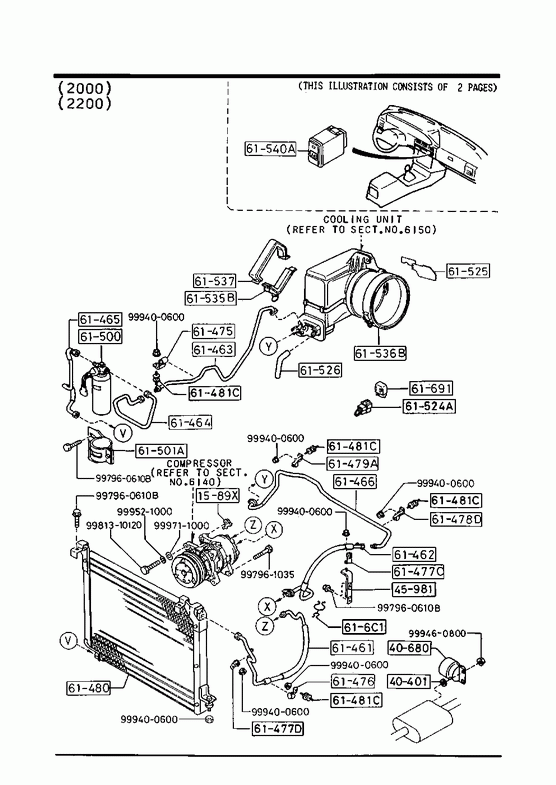

Air Conditioner

01/02 (2000)(2200)
02/02 (3000)

NUT,LOCK

Part Number	Qty.	Specifications	Price
FE1H1589X	1	2000 2200

» 40401

INSULATOR

Part Number	Qty.	Specifications	Price
082440401	2	ASBESTOS 2200 - 900101 HC12 -201452**	€ 2,79
F20140908	2	NON ASBESTOS 2200 900101 - HC12201452-**	€ 2,96

» 40680

DAMPER,DYNAMIC

Part Number	Qty.	Specifications	Price
JF0440680A	1	2200

» 45981

BRACKET,CLIP

Part Number	Qty.	Specifications	Price
H26161471	1

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
H26161461A	1	2000 2200 - 900120 HC12 -201466**
H26161461B	1	2000 2200 900120 - HC12201466-**	€ 168,24
H26761461B	1	3000 - 900120 HC12 -201466**	€ 120,43
H26761461C	1	3000 900120 - HC12201466-**	€ 132,50

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
H26161462A	1	2000 2200 - 900120 HC12 -201466**
H26161462B	1	2000 2200 900120 - HC12201466-**
HE1761462A	1	3000 - 900120 HC12 -201466**	€ 150,31
HE1761462B	1	3000 900120 - HC12201466-**

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
HE0161464A	1	2000 2200
HE1761464A	1	3000

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
HE0161465A	1	- 900120 HC12 -201466**	€ 18,91
HE0261465	1	900120 - HC12201466-**	€ 26,72

» 61465

PIPE NO.3,COOLER

Part Number	Qty.	Specifications	Price
H26161466	1	- 900120 HC12 -201466**	€ 28,41
H26261466	1	900120 - HC12201466-**	€ 28,92

» 61466

PIPE NO.4,COOLER

Part Number	Qty.	Specifications	Price
HE0161467A	1	- 900120 HC12 -201466**	€ 78,92
HE0161467B	1	900120 - HC12201466-**

» 61475

CLIP,PIPE

Part Number	Qty.	Specifications	Price
HE0161475	1

» 61476

CLIP

Part Number	Qty.	Specifications	Price
H26161476A	1	2000 2200

» 61477C

CLIP

Part Number	Qty.	Specifications	Price
H26661477	1	3000
H26761477A	1	2000 2200

» 61477D

CLIP

Part Number	Qty.	Specifications	Price
H26161477	1	2000 2200

» 61478D

CLIP

Part Number	Qty.	Specifications	Price
HE0161479	1	A (HE02-61-479A)

» 61479A

CLIP

Part Number	Qty.	Specifications	Price
HE0261479A	1

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
H26161480A	1		€ 591,14

» 61481C

RUBBER,INSULATOR

Part Number	Qty.	Specifications	Price
H26061481	4	2000 2200

» 61500

TANK,LIQUID

Part Number	Qty.	Specifications	Price
H26161501A	1	- 900120 HC12 -201466**	€ 126,34
H26161501B	1	900120 - HC12201466-**	€ 89,75

» 61501A

BRACKET,LIQUID TANK

Part Number	Qty.	Specifications	Price
H26161502	1	- 900120 HC12 -201466**
H26161502A	1	A (H261-61-502B) 900120 - 900612 HC12201466-201772**
H26161502B	1	900612 - HC12201772-**

» 61524A

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
856261524	1		€ 6,99

» 61525

BRACKET,DRAIN HOSE

Part Number	Qty.	Specifications	Price
HE0161525	1

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
H26161526	1

» 61535B

PLATE NO.1,SEAL

Part Number	Qty.	Specifications	Price
H26161527	1

» 61536B

PLATE NO.2,SEAL

Part Number	Qty.	Specifications	Price
H26161528	1

» 61537

PLATE NO.3,SEAL

Part Number	Qty.	Specifications	Price
H26161529	1

» 61540A

SWITCH,AIR CON.

Part Number	Qty.	Specifications	Price
HE0161530	1	2000 2200	€ 44,88

» 61691

RELAY

Part Number	Qty.	Specifications	Price
H26061691	2	3000	€ 21,71

» 616C1

CLIP

Part Number	Qty.	Specifications	Price
HE01616C1	1	2000 2200 - 891201 HC12 -201426**

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9981310120	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
999460800	1		€ 2,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999521000	1		€ 0,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610B	1		€ 0,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961035	1		€ 2,69

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711000	1		€ 0,51
