Mazda 929 HC 1989-06 Mazda Cooling System

Mazda parts catalog

Parts > Mazda 929 > 1989-06 > Gasoline-engine V6-cylinder Supplement > Cooling System(3000cc)

Search by part number:

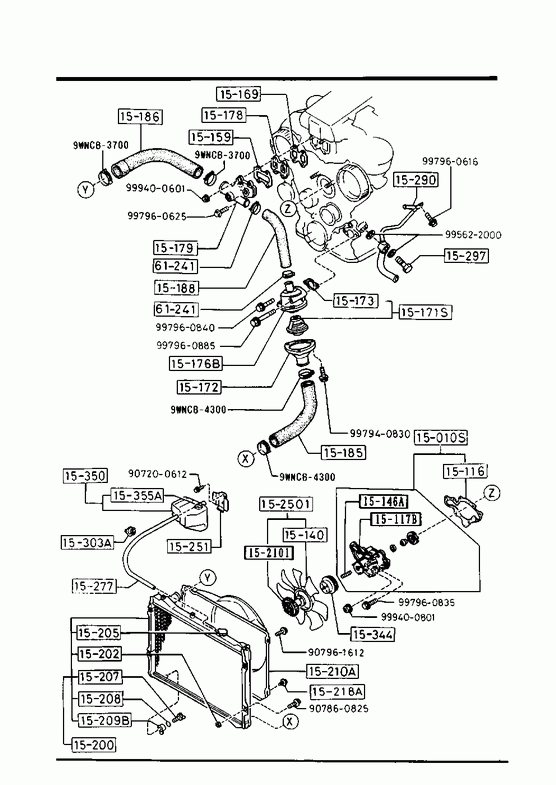

Cooling System(3000cc)

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AH315010B	1	ASBESTOS - 900101 HC12 -201452**	€ 100,41
8AH315010C	1	NON ASBESTOS 900101 - HC12201452-**	€ 100,41

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
JE1315116A	1	NON ASBESTOS 900101 - HC12201452-**	€ 7,27
JF0115116A	1	A (JE13-15-116A) - 900101 HC12 -201452**

» 15117B

HUB,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
JF0115117	1

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
JF0415141	1		€ 57,87

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
HE0115146	4		€ 2,61

» 15159

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
JE1315159	1	NON ASBESTOS 900101 - 920801 HC12201452-**	€ 3,37
JE5715159	1	920801 -	€ 3,30
JF0115159	1	ASBESTOS - 900101 HC12 -201452**

» 15169

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
JE1315169	1	NON ASBESTOS 900101 - 920801 HC12201452-**	€ 3,14
JE5715169	1	920801 -	€ 4,52
JF0115169	1	ASBESTOS - 900101 HC12 -201452**

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AH115171	1	83? - 900101 HC12 -201452**	€ 32,51
8AH115171A	1	NON ASBESTOS 900101 - HC12201452-**	€ 32,51

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
JF0115172A	1		€ 21,01

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
JE1315173	1	NON ASBESTOS 900101 - HC12201452-**	€ 3,33
JF0115173	1	ASBESTOS - 900101 HC12 -201452**

» 15176B

CASE,THERMOSTAT

Part Number	Qty.	Specifications	Price
JF0115176	1		€ 78,01

» 15178

PLATE,WATER OUTLET

Part Number	Qty.	Specifications	Price
JF0115178	1		€ 18,05

» 15179

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
JF0315179	1		€ 54,69

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
JF0315185B	1		€ 26,18

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
JF0315186A	1		€ 21,06

» 15188

HOSE,WATER BY-PASS

Part Number	Qty.	Specifications	Price
JF0115189	1		€ 16,33

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
JE2615200	1	A (JE26-15-200A) AUTOMATIC TRANSMISSION - 900501 HC12 -201677**
JE2615200A	1	A (JE26-15-200B) AUTOMATIC TRANSMISSION 900501 - 921116 HC12201677-**	€ 374,79
JE2615200B	1	AUTOMATIC TRANSMISSION 921116 -	€ 386,11
JE3415200	1	CALSONIC MANUAL TRANSMISSION - 921116	€ 368,19
JE3415200A	1	MANUAL TRANSMISSION 921116 -	€ 368,19

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
N32615202	4	AUTOMATIC TRANSMISSION	€ 5,16

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC AUTOMATIC TRANSMISSION	€ 14,93

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
FE6515203	1	AUTOMATIC TRANSMISSION	€ 8,35

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
FE6515204	1	AUTOMATIC TRANSMISSION	€ 2,48

» 15209B

GUIDE,DRAIN COCK

Part Number	Qty.	Specifications	Price
FE6515209	1	AUTOMATIC TRANSMISSION	€ 2,25

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
JF0415150A	1		€ 266,86

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
JF0415211B	1		€ 58,88

» 15218A

RIVET

Part Number	Qty.	Specifications	Price
JF0115218	2		€ 1,11

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
JF0415140B	1		€ 369,59

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
FE1H15371	1

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
JF0115381	1		€ 9,66

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
JF0415290C	1	A (JF04-15-290D) - 891012 HC12 -201253**	€ 58,48
JF0415290D	1	AN (JF04-15-290E) 891012 - HC12201253-**	€ 58,48

» 15297

BOLT,CONNECTOR-WATER PIPE

Part Number	Qty.	Specifications	Price
JF0115297	1		€ 11,03

» 15303A

CLIP

Part Number	Qty.	Specifications	Price
FE8515388	1

» 15344

PULLEY,FAN

Part Number	Qty.	Specifications	Price
029079258A	1		€ 23,24

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
FE1H15350A	1		€ 35,21

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
FE1H15355	1		€ 10,86

» 61241

CLIP,HOSE

Part Number	Qty.	Specifications	Price
H26661241A	2	- 900901 HC12 -202034**

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200612	1		€ 1,04

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860825	1		€ 2,61

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907961612	1		€ 1,87

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700	1		€ 2,97

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB4300	1		€ 2,97

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995622000	1		€ 1,65

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940830	1		€ 2,31

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960625	1		€ 1,17

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960835	1		€ 1,54

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960840	1		€ 1,53

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960885	1		€ 2,29

Cooling System(3000cc)
