Mazda 929 HC 1989-06 Mazda Manual Transmission Gears

Mazda parts catalog

Parts > Mazda 929 > 1989-06 > Gasoline-engine 4-cylinder Transmission > Manual Transmission Gears(2000cc & 2200cc)

Search by part number:

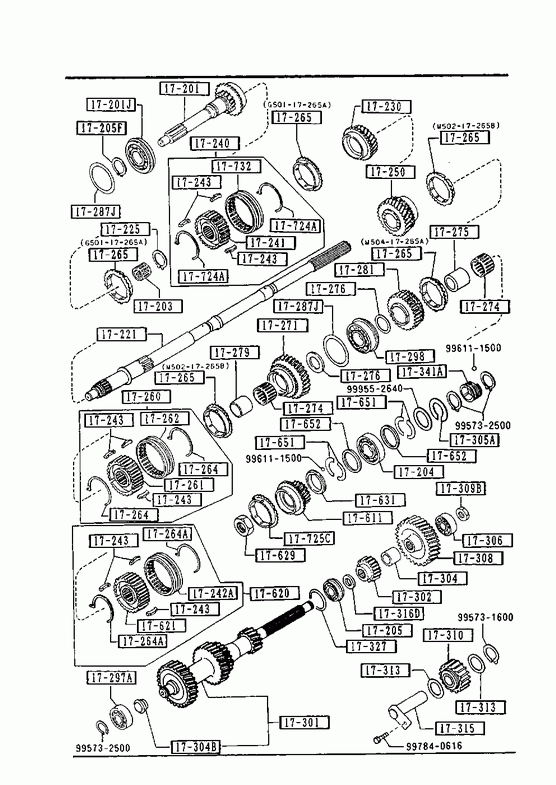

Manual Transmission Gears(2000cc & 2200cc)

GEAR,MAIN DRIVE

Part Number	Qty.	Specifications	Price
M51617201	1	AN (M516-17-201A)	€ 206,10

» 17201J

BEARING,BALL-MAIN DRIVE GEAR

Part Number	Qty.	Specifications	Price
M50217295C	1	KOYO	€ 34,28

» 17203

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117210	1	AN (M501-17-210A) - 920801	€ 9,89
M50117210A	1	920801 -	€ 10,29

» 17204

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
M50317204	1	NSK	€ 28,61

» 17205

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
R50217306A	1	FUJIKOSHI	€ 68,66

» 17205F

RING,RETAINING

Part Number	Qty.	Specifications	Price
M50117205	1		€ 2,10

» 17221

SHAFT,MAIN

Part Number	Qty.	Specifications	Price
M50517221B	1	A (M505-17-221C)	€ 239,85

» 17225

RING,SNAP

Part Number	Qty.	Specifications	Price
031717225	1		€ 2,16

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
M51117231	1	AN (M511-17-231A)	€ 128,57

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
M50217240B	1	A (M502-17-240C) - 890701 HC12 -200417**	€ 150,51
M50217240C	1	AN (M502-17-240D) 890701 - 910513 HC12200417-202931**	€ 150,51
M50217240D	1	910513 - HC12202931-**	€ 156,59

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50117241B	1	AN (M501-17-241C) - 910513 HC12 -202931**	€ 83,80
M50117241C	1	910513 - HC12202931-**	€ 87,19

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1		€ 43,46

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	9	AN (F401-17-243C)	€ 3,12

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
M51017251	1		€ 122,46

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
M50517260A	1	A (M505-17-260B) - 910115 HC12 -202569**	€ 170,87
M50517260B	1	AN (M505-17-260C) 910115 - 920301 HC12202569-**	€ 170,87
M50517260C	1	920301 -	€ 174,29

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50217261	1		€ 86,32

» 17262

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
M50317262	1	A (M503-17-262A) - 910115 HC12 -202569**	€ 77,18
M50317262A	1	AN (M503-17-262B) 910115 - 920301 HC12202569-**
M50317262B	1	920301 -	€ 80,29

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G40117264	2	A (G402-17-264)	€ 2,59

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
G50117265A	2		€ 26,32
M50217265A	2	A (M502-17-265B) - 901205 HC12 -202365**	€ 25,88
M50217265B	2	A (M502-17-265C) 901205 - 910410 HC12202365-202841**
M50217265C	2	910410 - HC12202841-**	€ 26,93
M50417265	1	A (M504-17-265A) - 900101 HC12 -201452**
M50417265A	1	AN (M504-17-265B) 900101 - HC12201452-**	€ 20,15

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
M51217271	1		€ 146,21

» 17274

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
406917283A	2		€ 27,73

» 17275

RACE,INNER

Part Number	Qty.	Specifications	Price
406917284E	1		€ 35,57

» 17276

WASHER,THRUST

Part Number	Qty.	Specifications	Price
025917274A	2	T=3.0MM	€ 5,25
025917276	2	T=2.2MM	€ 5,08
025917277	2	T=2.7MM	€ 4,78
025917278	2	T=3.2MM	€ 4,78
025917279	2	T=3.7MM	€ 4,08

» 17279

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
854017275A	1		€ 25,44

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
M50717281	1	A (M507-17-281A) - 890801 HC12 -200783**
M50717281A	1	C (M507-17-281B) 890801 - 900101 HC12200783-201452**
M50717281B	1	AN (M507-17-281C) 900101 - HC12201452-**	€ 115,20

» 17287J

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
999636310	2	T=0.1MM	€ 1,62
999636315	1	T=0.15MM	€ 1,84
999636330	2	T=0.3MM	€ 1,94

» 17297A

BEARING,BALL-COUNTER SHAFT G.

Part Number	Qty.	Specifications	Price
M50217297A	1	KOYO	€ 29,35

» 17298

BEARING

Part Number	Qty.	Specifications	Price
M50217298A	1		€ 34,55

» 17301

GEAR,COUNTER SHAFT

Part Number	Qty.	Specifications	Price
M52917300	1		€ 353,79

» 17302

GEAR,COUNTER REVERSE

Part Number	Qty.	Specifications	Price
M50317302A	1	A (M503-17-302B) - 890801 HC12 -200783**	€ 38,14
M50317302B	1	890801 - HC12200783-**	€ 39,68

» 17304

SPACER

Part Number	Qty.	Specifications	Price
M50417304	1		€ 5,14

» 17304B

SPACER

Part Number	Qty.	Specifications	Price
M50117304B	1		€ 9,37

» 17305A

RING,RETAINING-BALL BEARING

Part Number	Qty.	Specifications	Price
083917305B	1	A (0839-17-305C)	€ 2,78

» 17306

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50217299A	1	AN (M502-17-299B)	€ 21,65

» 17308

GEAR,COUNTER-5TH

Part Number	Qty.	Specifications	Price
M50817308A	1		€ 120,79

» 17309B

NUT,LOCK-COUNTER SHAFT BR

Part Number	Qty.	Specifications	Price
M50117309	1		€ 9,13

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
M50417310B	1	A (M504-17-310C) - 890801 HC12 -200783**	€ 95,58
M50417310C	1	A (M504-17-310D) 890801 - HC12200783-**	€ 95,58

» 17313

WASHER,THRUST-REVERSE IDLE G.

Part Number	Qty.	Specifications	Price
M50117313	2	T=2.0MM	€ 3,21

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
M50117140	1		€ 11,45

» 17316D

SPACER

Part Number	Qty.	Specifications	Price
R50217316	1		€ 6,73

» 17327

SHIM,ADJUST-COUNTER SHAFT GEAR

Part Number	Qty.	Specifications	Price
030517327	2	T=0.1MM	€ 2,03
030517328	1	T=0.3MM	€ 2,43

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
M50317341	1	A (M503-17-341A)	€ 23,37

» 17341J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111500	1		€ 1,93

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
M51417611A	1		€ 180,29

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
M50517620	1	A (M505-17-620B)	€ 117,92

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50517621	1	AN (M505-17-621A)	€ 59,37

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
860117629	1		€ 18,58

» 17631

WASHER,THRUST LOCK-OVER TOP G.

Part Number	Qty.	Specifications	Price
088417632B	1	T=6.2MM	€ 9,28
088417633B	1	T=6.4MM	€ 8,35
088417634B	1	T=6.5MM	€ 8,35
088417635B	1	T=6.6MM	€ 9,64

» 17651

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M50117651	4	T=3.0MM	€ 7,06
M50117653	2	T=3.1MM	€ 6,78
M50117654	2	T=3.2MM	€ 7,06
M50117655	2	T=2.9MM	€ 7,06

» 17652

WASHER,THRUST LOCK

Part Number	Qty.	Specifications	Price
M50117652	2	T=2.0MM	€ 1,83

» 17724A

SPRING,SYNCHRO.KEY

Part Number	Qty.	Specifications	Price
W50117724	2		€ 2,28

» 17725C

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
V50117725	1		€ 18,74

» 17732

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
W50117732A	1	A (W501-17-732B) - 890701 HC12 -200417**
W50117732B	1	890701 - HC12200417-**	€ 66,02

» 99570

RING,RETAINING

Part Number	Qty.	Specifications	Price
995731600	1		€ 2,10

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995732500	1		€ 2,20

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99955

WASHER,ADJUST

Part Number	Qty.	Specifications	Price
999552640	1		€ 3,45

Manual Transmission Gears(2000cc & 2200cc)
