Mazda 929 HC 1986-12 Mazda Rear Differentials 01/02 02/02

Mazda parts catalog

Parts > Mazda 929 > 1986-12 > Chassis Axle Suspension & Brake & Steering > Rear Differentials(3000cc)

Search by part number:

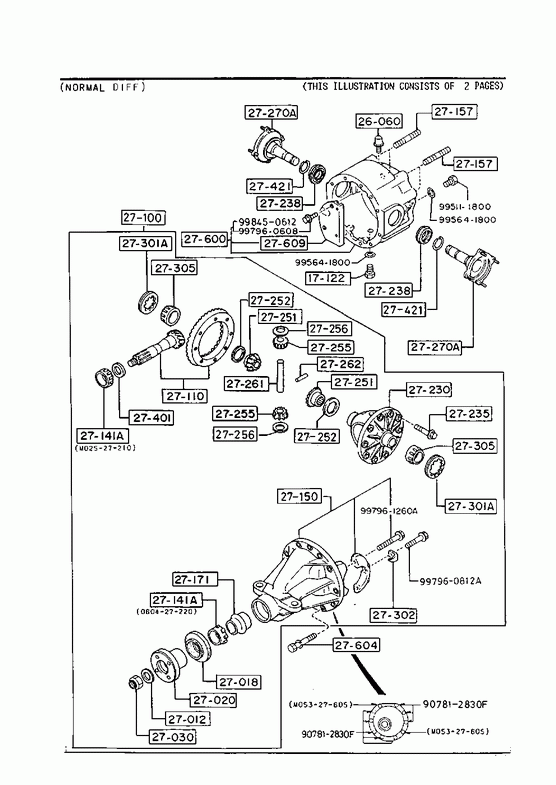

Rear Differentials(3000cc)

01/02
02/02

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
P01727165	1	A (R001-27-165)	€ 17,97

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
P02027120	1	A (P020-27-120A) - 870601 HC12 -104960**
P02027120A	1	AN (P044-27-120) 870601 - HC12104960-**

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
P03227100B	1	LEADED FUEL NORMAL DIFF - 870601 HC12 -104960**	€ 1138,82
P03227100C	1	A (P032-27-100D) NORMAL DIFF LEADED FUEL 870601 - HC12104960-**
P03627100C	1	A (P036-27-100D) NORMAL DIFF UNLEADED FUEL

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
P03227110B	1	R=3.583 LEADED FUEL
P03327110	1	R=3.727 UNLEADED FUEL	€ 492,83

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
060427220	1		€ 34,45
M02527210	1		€ 40,74

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P01927150B	1	A (P019-27-150C) - 870601 HC12 -104960**
P01927150D	1	870601 - HC12104960-**

» 27157

STUD,DIFF. CARRIER

Part Number	Qty.	Specifications	Price
M06927603	4

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
P01927171	1

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
P01927231	1	NORMAL DIFF - 870601 HC12 -104960**
P01927231A	1	NORMAL DIFF 870601 - HC12104960-**
P09027230A	1	OPTIONAL L.S.D.

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
P01627238	2		€ 5,97

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
P01927251	2	NORMAL DIFF - 870601 HC12 -104960**
P01927251A	2	A (P019-27-251B) NORMAL DIFF 870601 - 880601 HC12104960-112285**
P01927251B	2	NORMAL DIFF 880601 - HC12112285-**	€ 43,68
P09027251	2	OPTIONAL L.S.D. - 870901 HC12 -106352**
P09027251A	2	AN (P090-27-251B) OPTIONAL L.S.D. 870901 - HC12106352-**

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
057827252	2	T=2.0MM NORMAL DIFF	€ 5,24
057827253	2	T=2.1MM NORMAL DIFF	€ 5,62
057827254	2	T=2.2MM NORMAL DIFF	€ 5,49
P01627252	2	T=2.05MM NORMAL DIFF	€ 4,76
P01627253	2	T=2.15MM NORMAL DIFF	€ 4,94
P02027252	2	T=1.5MM OPTIONAL L.S.D.	€ 9,54
P02027253	2	T=1.6MM OPTIONAL L.S.D.	€ 15,33
P02027254	2	T=1.7MM OPTIONAL L.S.D.	€ 14,30

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P00527255A	2	AN (P005-27-255B) NORMAL DIFF	€ 33,51
P02027255	4	OPTIONAL L.S.D.	€ 46,72

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
P01627256	2	NORMAL DIFF	€ 4,30

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
P00527261A	1	NORMAL DIFF	€ 11,74
P09027261	1	OPTIONAL L.S.D.

» 27262

Part Number	Qty.	Specifications	Price
011427262	1	NORMAL DIFF	€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
P01627270A	2	- 870601 HC12 -104960**	€ 92,97
P01927270	2	A (P019-27-270A) 870601 - HC12104960-**	€ 77,73

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
011027301	2		€ 5,24

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
057827302	2		€ 1,79

» 27305

BEARING

Part Number	Qty.	Specifications	Price
011827350	2	A (0118-27-350A) OPTIONAL L.S.D.	€ 49,70

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69

» 27421

CLIP

Part Number	Qty.	Specifications	Price
P01627421	2		€ 1,54

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P01927600A	1	A (P019-27-600B) - 870601 HC12 -104960**
P01927600B	1	870601 - HC12104960-**	€ 460,25

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327605	2	870601 - HC12104960-**	€ 3,04

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M06927609	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830F	1

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960608	1		€ 0,40

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260A	1		€ 2,80

Rear Differentials(3000cc)
