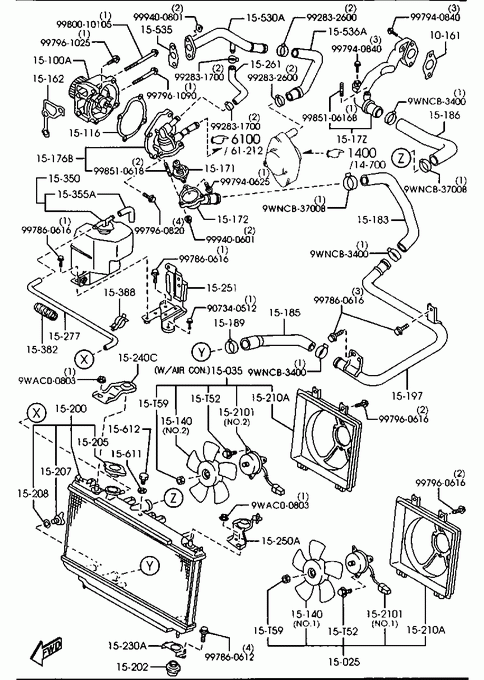

Cooling System(diesel)
-
» 10161 GASKET,THERMOSTAT Part Number Qty. Specifications Price RFC610153 1 NON ASBESTOS € 2,95 » 15025 FAN,ELECTRIC Part Number Qty. Specifications Price RF2A15025A 1 € 391,91 » 15035 FAN,ADDITIONAL Part Number Qty. Specifications Price RF2A15035A 1 AN (RF2A-15-035B)
W/AIR CON.
- 980617
GW**** -122040€ 376,70 RF2A15035B 1 W/AIR CON.
980617 -
GW****122040-€ 391,91 » 15100A HOUSING,WATER PUMP Part Number Qty. Specifications Price RF2A15100A 1 AN (RF2A-15-100B) € 98,43 » 15116 GASKET,WATER PUMP Part Number Qty. Specifications Price RFB915116 1 NON ASBESTOS € 3,60 » 15140 FAN,COOLING Part Number Qty. Specifications Price RF1S15140 1 CALSONIC
ILLUST. NO.2
W/AIR CON.€ 52,18 RF2A15140 1 ILLUST. NO.1 € 52,18 » 15162 GASKET Part Number Qty. Specifications Price RFB915162 1 NON ASBESTOS
- 990501
GW**** -151842€ 3,19 RFB915162A 1 990501 -
GW****151842-€ 3,32 » 15171 THERMOSTAT Part Number Qty. Specifications Price KL0115171 1 AN (KL01-15-171A) € 20,96 » 15172 COVER,THERMOSTAT Part Number Qty. Specifications Price R2S215172A 1 SANYCO € 25,07 RF1G15172B 1 HIROSHIMA ALUMINIUM € 22,06 » 15176B CASE,THERMOSTAT Part Number Qty. Specifications Price RF2A151H0B 1 € 62,20 » 1517Z OUTLET,WATER Part Number Qty. Specifications Price RF2A1517Z 1 AN (RF2A-15-17ZA)
- 981029
GW**** -131940€ 86,08 RF2A1517ZA 1 AN (RF2A-15-17ZB)
981029 - 990625
GW****131940-153939€ 86,08 RF2A1517ZB 1 990625 -
GW****153939-€ 89,56 » 15183 HOSE,WATER Part Number Qty. Specifications Price RF2A15183 1 € 17,36 » 15185 HOSE,WATER Part Number Qty. Specifications Price RF2A15185A 1 € 10,68 » 15186 HOSE,WATER Part Number Qty. Specifications Price RF2A15186 1 € 12,95 » 15189 CLAMP,HOSE Part Number Qty. Specifications Price AS0115182 1 € 2,97 » 15197 PIPE,WATER Part Number Qty. Specifications Price RF1G1519YC 1 € 51,64 » 15200 RADIATOR Part Number Qty. Specifications Price RF2A15200 1 € 269,24 » 15202 RUBBER,MOUNT Part Number Qty. Specifications Price RF2A15202 2 € 9,56 » 15205 CAP,RADIATOR Part Number Qty. Specifications Price VS0115205 1 DENSO € 23,84 » 15207 COCK,DRAIN Part Number Qty. Specifications Price G60715316 1 USA DENSO € 6,90 » 15208 GASKET,DRAIN COCK Part Number Qty. Specifications Price S21015204 1 € 4,24 » 152101 FAN DRIVE Part Number Qty. Specifications Price RF1S15150 1 ILLUST. NO.2
W/AIR CON.€ 199,56 RF2A15150 1 ILLUST. NO.1 € 199,56 » 15210A COWLING,RADIATOR Part Number Qty. Specifications Price RF2A15210A 2 € 86,93 » 15230A BRACKET,RADIATOR LWR Part Number Qty. Specifications Price FS0115231A 2 € 5,09 » 15240C BRACKET(R),RADIATOR Part Number Qty. Specifications Price RF2A15240B 1 € 18,52 » 15250A BRACKET(L),RADIATOR Part Number Qty. Specifications Price RF2A15250B 1 € 18,52 » 15251 BRACKET,SUB TANK Part Number Qty. Specifications Price RFG115370A 1 € 24,52 » 15261 HOSE,BYPASS Part Number Qty. Specifications Price RF2A15261 1 € 5,06 » 15277 HOSE,WATER SUB TANK Part Number Qty. Specifications Price RFG115381 1 € 5,74 » 15350 TANK,SUB-RADIATOR Part Number Qty. Specifications Price RFG115350B 1 € 75,66 » 15355A CAP,SUB TANK Part Number Qty. Specifications Price RFG115355 1 € 14,68 » 15382 PROTECTOR,HOSE-SUB TANK Part Number Qty. Specifications Price SEA115382 1 € 3,97 » 15388 CLIP,HOSE Part Number Qty. Specifications Price RF2A15388 1 € 2,77 » 15530A PIPE,WATER-OIL COOLER Part Number Qty. Specifications Price RF2A15530A 1 AN (RF2A-15-530B)
- 980801
GW**** -125919€ 37,69 RF2A15530B 1 980801 -
GW****125919-€ 39,21 » 15535 GASKET,WATER PIPE Part Number Qty. Specifications Price RF2A15535A 1 AN (RF2A-15-535B)
- 980901
GW**** -127568€ 4,04 RF2A15535B 1 980901 -
GW****127568-€ 4,20 » 15536A HOSE,WATER Part Number Qty. Specifications Price RF2A15536 1 AN (RF2A-15-536A)
- 981015
GW**** -130799€ 13,46 RF2A15536A 1 981015 -
GW****130799-€ 14,00 » 15611 GASKET Part Number Qty. Specifications Price 855315611 1 € 1,74 » 15612 PLUG Part Number Qty. Specifications Price SE0115612 1 € 2,28 » 15T52 SCREW Part Number Qty. Specifications Price B6S815T52 6 € 1,26 » 15T59 NUT,COOLING FAN Part Number Qty. Specifications Price B59515T59 2 € 2,79 » 90720 SCREW Part Number Qty. Specifications Price 907340512 1 € 0,48 » 90857 STUD Part Number Qty. Specifications Price 998510616B 1 € 0,79 » 90857 STUD Part Number Qty. Specifications Price 998510618 1 € 0,90 » 90901 NUT Part Number Qty. Specifications Price 9WAC00803 1 € 0,93 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400601 1 € 1,28 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400801 1 € 1,64 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860612 1 € 1,58 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860616 1 € 1,54 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992831700 1 € 2,52 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992832600 1 € 2,27 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 9WNCB3400 1 € 4,02 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 9WNCB3700B 1 € 3,12 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940625 1 € 1,03 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940840 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941025 1 € 1,61 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960616 1 € 0,81 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960820 1 € 1,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997961090 1 € 2,51 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 9980010105 1 € 2,78
