Mazda 626WAGON GW 1997-10 Mazda Turbo Charger

Mazda parts catalog

Parts > Mazda 626WAGON > 1997-10 > Diesel-engine Supplement > Turbo Charger(diesel)

Search by part number:

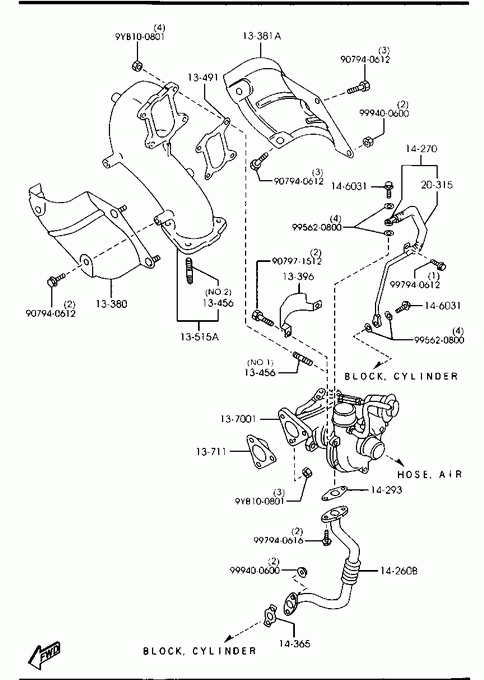

Turbo Charger(diesel)
» 13380 INSULATOR,HEAT

Part Number Qty. Specifications Price
RF2A13380B 1 A (RF3F-13-380)
- 990625
GW**** -153939 € 30,71
RF3F13380 1 990625 -
GW****153939- € 61,22

» 13381A INSULATOR,HEAT

Part Number Qty. Specifications Price
RF2A1338XB 1 - 990625
GW**** -153939 € 30,71
RF3F1338X 1 990625 -
GW****153939- € 49,67

» 13396 INSULATOR,SUB

Part Number Qty. Specifications Price
RF2A13396A 1
€ 10,23

» 13456 STUD

Part Number Qty. Specifications Price
230613456 3 ILLUST. NO.2
€ 4,30
RF2A13456 4 ILLUST. NO.1
€ 6,95

» 13491 GASKET,JOINT PIPE

Part Number Qty. Specifications Price
RF2A13490A 1
€ 23,55

» 13515A PIPE,JOINT-EXHAUST

Part Number Qty. Specifications Price
RF2A13510C 1
€ 172,85

» 137001 TURBOCHARGER

Part Number Qty. Specifications Price
RF2B13700A 1
€ 790,45

» 13711 GASKET,TURBOCHARGER

Part Number Qty. Specifications Price
RF2A13710A 1
€ 35,88

» 14260B PIPE,OIL OUTLET

Part Number Qty. Specifications Price
RF2A14260 1
€ 72,01

» 14270 PIPE,OIL

Part Number Qty. Specifications Price
RF2A14270A 1
€ 44,23

» 14293 GASKET,OIL PIPE

Part Number Qty. Specifications Price
RFJ514293 1
€ 3,83

» 14365 GASKET

Part Number Qty. Specifications Price
R2A214365 1 NON ASBESTOS
€ 2,06

» 146031 BOLT,CONNECTOR

Part Number Qty. Specifications Price
RF2A14603 2
€ 11,88

» 20315 PROTECTOR

Part Number Qty. Specifications Price
RF2B20315 1 - 990401
GW**** -149348
RF3C20315 1 990401 -
GW****149348- € 7,08

» 90781 BOLT & WASHER

Part Number Qty. Specifications Price
907971512 1
€ 0,70

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907940612 1
€ 1,41

» 90901 NUT

Part Number Qty. Specifications Price
9YB100801 1
€ 3,51

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 99560 GASKET

Part Number Qty. Specifications Price
995620800 1
€ 1,97

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616 1
€ 1,28

Part Number	Qty.	Specifications	Price
RF2A13380B	1	A (RF3F-13-380) - 990625 GW -153939	€ 30,71
RF3F13380	1	990625 - GW153939-	€ 61,22

Part Number	Qty.	Specifications	Price
230613456	3	ILLUST. NO.2	€ 4,30
RF2A13456	4	ILLUST. NO.1	€ 6,95

Part Number	Qty.	Specifications	Price
RF2B20315	1	- 990401 GW -149348
RF3C20315	1	990401 - GW149348-	€ 7,08

Turbo Charger(diesel)
