Front Spring & Damper
-

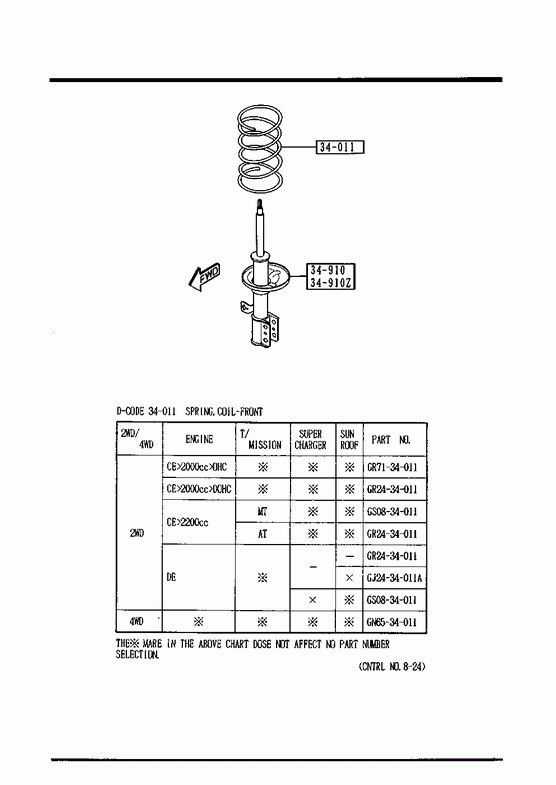

» 34011 SPRING,COIL-FRONT Part Number Qty. Specifications Price GJ2434011A 2 REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL
(2WD>DIESEL>W/O SUPER CHARGER>SUNROOF)€ 122,08 GN6534011 2 REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL
4WD€ 104,33 GR2434011 2 REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL
(2WD>GASOLINE>2000>DOHC)
(2WD>GASOLINE>2200>AUTOMATIC TRANSMISSION)
(2WD>DIESEL>W/O SUPER CHARGER>W/O SUN-RF)€ 109,36 GR7134011 2 REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL
(2WD>GASOLINE>2000>OHC)€ 102,82 GS0834011 2 REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL
(2WD>GASOLINE>2200>MANUAL TRANSMISSION)
(2WD>DIESEL>W/SUPER CHARGER)€ 131,20 » 34910 DAMPER(R),FRONT Part Number Qty. Specifications Price G21134700E 1 A (G211-34-700F)
SOFT SUSPENSION
2WD
- 941005
GV*2** -316508€ 84,02 G21134700G 1 A (G211-34-700H)
SOFT SUSPENSION
2WD
941005 - 951001
GV*2**316508-319812€ 84,02 G21134700H 1 SOFT SUSPENSION
2WD
951001 -
GV*2**319812-€ 86,56 G25634700E 1 A (G256-34-700F)
NORMAL SUSPENSION
2WD
- 941005
GV*2** -316508€ 84,02 G25634700F 1 A (G256-34-700G)
NORMAL SUSPENSION
2WD
941005 - 951001
GV*2**316508-319812€ 84,02 G25634700G 1 NORMAL SUSPENSION
2WD
951001 -
GV*2**319812-€ 86,56 GS3934700A 1 A (GS39-34-700B)
4WD
- 941005
GV*2** -316508€ 84,02 GS3934700B 1 A (GS39-34-700C)
4WD
941005 - 951001
GV*2**316508-319812€ 84,02 GS3934700C 1 4WD
951001 -
GV*2**319812-€ 86,56 » 34910Z DAMPER(L),FRONT Part Number Qty. Specifications Price G21134900E 1 A (G211-34-900F)
SOFT SUSPENSION
2WD
- 941005
GV*2** -316508€ 84,02 G21134900G 1 A (G211-34-900H)
SOFT SUSPENSION
2WD
941005 - 951001
GV*2**316508-319812€ 84,02 G21134900H 1 SOFT SUSPENSION
2WD
951001 -
GV*2**319812-€ 86,56 G25634900E 1 A (G256-34-900F)
NORMAL SUSPENSION
2WD
- 941005
GV*2** -316508€ 84,02 G25634900F 1 A (G256-34-900G)
NORMAL SUSPENSION
2WD
941005 - 951001
GV*2**316508-319812€ 84,02 G25634900G 1 NORMAL SUSPENSION
2WD
951001 -
GV*2**319812-€ 86,56 GS3934900A 1 A (GS39-34-900B)
4WD
- 941005
GV*2** -316508€ 84,02 GS3934900B 1 A (GS39-34-900C)
4WD
941005 - 951001
GV*2**316508-319812€ 84,02 GS3934900C 1 4WD
951001 -
GV*2**319812-€ 86,56
