Fuel Tank 01/04 (1800,2200)>(LEADED FUEL) 02/04 (2000)>(UNLEADED FUEL) 03/04 (2200 > 2WD) 04/04 (2200

Fuel Tank |

Mazda parts catalog

Parts > Mazda 626WAGON > 1989-10 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

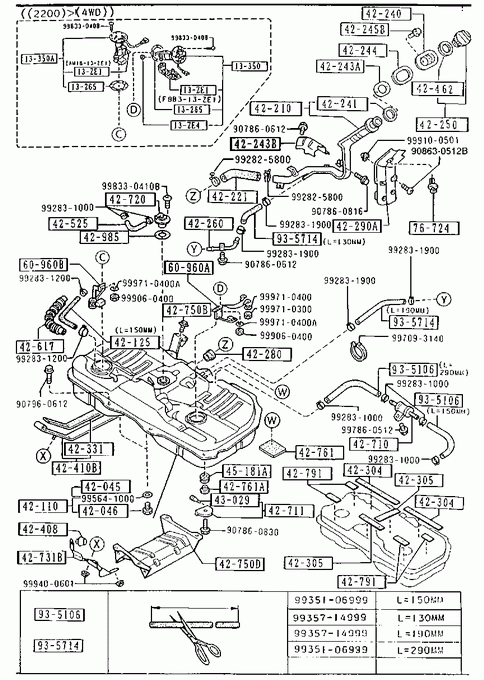

Fuel Tank(gasoline)

01/04 (1800,2200)>(LEADED FUEL)
02/04 (2000)>(UNLEADED FUEL)
03/04 (2200 > 2WD)
04/04 (2200 > 4WD)

GASKET

Part Number	Qty.	Specifications	Price
G11460962	1	DENSO (2000>W/EGI>OHC) (2200>2WD)	€ 7,15
HE2160962	2	MITSUBISHI (2200>4WD)	€ 5,62

» 13350

PUMP,FUEL

Part Number	Qty.	Specifications	Price
F20113350G	1	ASBESTOS (2000>W/EGI>OHC) (2200>2WD) - 900601 GV1* -219781**	€ 381,71
F20113350H	1	DENSO (2000>W/EGI>OHC) (2200>2WD) 900601 - GV1219781-*	€ 397,13
F8B313350B	1	MITSUBISHI (2000>W/EGI>DOHC) - 900101 GV1* -202565**	€ 381,71
F8B313350C	1	MITSUBISHI (2000>W/EGI>DOHC) 900101 - GV1202565-*	€ 381,71
FE7G13350F	1	MITSUBISHI (2200>4WD)	€ 397,13

» 13350A

PUMP,FUEL-SUB

Part Number	Qty.	Specifications	Price
F8K11335ZA	1	NON ASBESTOS 2200

» 13ZE1

FILTER,FUEL PUMP

Part Number	Qty.	Specifications	Price
AM1613ZE1	1	MITSUBISHI (2200>4WD)	€ 20,97
F8B313ZE1	1	MITSUBISHI (2000>W/EGI>DOHC) (2200>4WD)	€ 21,36
FEH213ZE1A	1	DENSO (2000>W/EGI>OHC) (2200>2WD)	€ 15,35

» 13ZE4

WASHER,LOCK-PUMP FILTER

Part Number	Qty.	Specifications	Price
F8B313ZE4	1	MITSUBISHI (2000>W/EGI>DOHC) (2200>4WD)	€ 6,04
FEH213ZE4	1	DENSO (2000>W/EGI>OHC) (2200>2WD)	€ 3,07

» 42045

GASKET,DRAIN PLUG

Part Number	Qty.	Specifications	Price
086642046	2	2200 911201 - GV1226097-*	€ 2,64

» 42046

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
B59642045	2	(2200>4WD) 911201 - GV1226097-*	€ 2,94
BC8842045	2	(2200>4WD) - 911201 GV1* -226097**	€ 2,25

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
GJ2142110G	1	(2000>W/EGI) (2200>2WD)	€ 397,42
GJ8342110A	1	1800 (2000>W/O EGI)	€ 397,42
GS3842110	1	(2200>4WD) - 910920 GV1* -224781**	€ 378,18
GS3842110A	1	A (GS38-42-110B) (2200>4WD) 910920 - 911201 GV1224781-226097*	€ 378,18
GS3842110B	1	AN (GS38-42-110C) (2200>4WD) 911201 - GV1226097-*	€ 378,18

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
G35042210	1	1800 (2000>LEADED FUEL)	€ 107,45
GN5142210	1	(2000>UNLEADED FUEL) (2200>2WD)	€ 129,86
GS3842210	1	(2200>4WD)	€ 142,94

» 42221

HOSE,FILLER

Part Number	Qty.	Specifications	Price
G30442241	1	TOKAI GOMU (2200>4WD) - 910920 GV1* -224781**
G30442241A	1	TOKAI GOMU (2200>4WD) 910920 - GV1224781-*
GN5142241A	1	1800 2000 (2200>2WD)	€ 24,38

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
BF7142242B	1		€ 8,60

» 42241

GASKET,FILLER PIPE

Part Number	Qty.	Specifications	Price
086642366B	1		€ 2,91

» 42243A

GASKET'A',DUST COVER

Part Number	Qty.	Specifications	Price
GJ2142243	1		€ 2,68

» 42243B

PROTECTOR,FILLER PIPE

Part Number	Qty.	Specifications	Price
G30442791A	1	A (G304-42-791B) (2200>4WD)	€ 22,64

» 42244

GASKET'B',DUST COVER

Part Number	Qty.	Specifications	Price
BF7142244	1		€ 13,75

» 42245B

BOLT,DUST COVER

Part Number	Qty.	Specifications	Price
H26042245	2	AN (H260-42-245A) - 900501 GV1* -205412**	€ 0,90
H26042245A	2	900501 - GV1205412-*	€ 1,28

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
887142250B	1	1800 (2000>LEADED FUEL)	€ 18,84
BF6742250	1	(2000>UNLEADED FUEL) (2200>2WD)	€ 18,17
F04442250	1	A (F044-42-250A) (2200>4WD)	€ 21,03

» 42260

PIPE,BREATHER

Part Number	Qty.	Specifications	Price
G30442270	1	(2200>4WD)	€ 17,30

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
GB5342270	1		€ 7,92

» 42290A

PROTECTOR'A',FILLER PIPE

Part Number	Qty.	Specifications	Price
GJ2942298B	1		€ 22,06

» 42304

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
G11342762	1	1800 2000 (2200>2WD)	€ 5,32
G30442762	2	(2200>4WD)	€ 4,36

» 42305

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
G11342763	3	1800 2000 (2200>2WD)	€ 3,47

» 42331

SHEET

Part Number	Qty.	Specifications	Price
GJ2142715	1		€ 5,76

» 42408

STOPPER,FILLER LID

Part Number	Qty.	Specifications	Price
887170491	1	(2200>4WD)	€ 0,90

» 42410B

BAND,FIXING

Part Number	Qty.	Specifications	Price
GJ2142710E	1	1800 2000 (2200>2WD)	€ 18,72
GS3842710	1	(2200>4WD)

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
887142365	1	1800 (2000>LEADED FUEL)	€ 3,46
BF6742252	1	(2000>UNLEADED FUEL) 2200	€ 3,01

» 42525

HOSE,VAPOR VALVE-TANK

Part Number	Qty.	Specifications	Price
B21042525	1	(2200>4WD)	€ 4,88

» 42617

PROTECTOR

Part Number	Qty.	Specifications	Price
G30442617	1	(2200>4WD)

» 42710

VALVE,CHECK

Part Number	Qty.	Specifications	Price
G21142910	1	(2200>4WD)
H26042910B	1	(2200>2WD)	€ 49,25

» 42711

REINF.,FUEL TANK

Part Number	Qty.	Specifications	Price
GJ214275XB	3	1800 2000 (2200>2WD)	€ 5,12

» 42720

VALVE,FUEL VAPOR.

Part Number	Qty.	Specifications	Price
FB0142980	1	(2200>4WD)	€ 23,88

» 42731B

PROTECTOR,FUEL TANK

Part Number	Qty.	Specifications	Price
GS3842780	1	A (GS38-42-780A) (2200>4WD) - 910920 GV1* -224781**
GS3842780A	1	(2200>4WD) 910920 - GV1224781-*

» 42750B

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
G11342740A	1		€ 2,45

» 42750D

INSULATOR,FUEL TANK

Part Number	Qty.	Specifications	Price
GS3842770	1	(2200>4WD) - 910920 GV1* -224781**
GS3842770B	1	AN (GS38-42-770C) (2200>4WD) 910920 - GV1224781-*

» 42761

PAD

Part Number	Qty.	Specifications	Price
GA5R42761	1	MOLTEN (2200>UNLEADED FUEL) 911101 - GV1225402-*	€ 3,73

» 42761A

SPACER

Part Number	Qty.	Specifications	Price
G1134275YA	3		€ 1,41

» 42791

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
G03042763	1	1800 2000 (2200>2WD)	€ 3,17
G11342767	4	(2200>4WD)	€ 2,60

» 42985

GASKET,VAPOR VALVE

Part Number	Qty.	Specifications	Price
FB0142985	1	(2200>4WD)	€ 3,06

» 43029

RUBBER,STOPPER

Part Number	Qty.	Specifications	Price
G11342754A	3	1800 2000 (2200>2WD)	€ 1,13

» 45181A

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
G11342751C	3		€ 2,07

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
G35060960	1	W/O SAFETY PANEL 1800 (2000>UNLEADED FUEL>W/O EGI)	€ 74,56
GR1260960	1	W/SAFETY PANEL 1800 (2000>LEADED FUEL>W/O EGI)	€ 179,90
GR1960960	1	W/SAFETY PANEL (2000>DOHC)	€ 87,85
GR9760960A	1	(2000>LEADED FUEL>OHC) (2200>2WD)	€ 72,21
GS3860960	1	(2200>4WD)	€ 72,27

» 60960B

GAUGE(R),FUEL TANK

Part Number	Qty.	Specifications	Price
G30460970A	1	(2200>4WD)	€ 46,32

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	1	891201 - GV1201331-*	€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330410B	1		€ 0,38

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860830	1		€ 2,09

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
908630512B	1		€ 1,22

» 90901

NUT

Part Number	Qty.	Specifications	Price
999060400	1		€ 0,40

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	1	L=1M CUT IT TO USE	€ 14,42

» 935714

HOSE

Part Number	Qty.	Specifications	Price
9935714999	1	L=1M CUT IT TO USE	€ 34,85

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860512	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992825800	1		€ 2,49

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641000	1		€ 2,00

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710300	1

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710400	1		€ 0,39

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710400A	1		€ 0,54

Fuel Tank(gasoline)
