Mazda 626WAGON GV 1989-10 Mazda Rear Brake Mechanisms 01/02 (2WD) 02/02 (4WD)

Mazda parts catalog

Parts > Mazda 626WAGON > 1989-10 > Chassis Axle Suspension & Brake & Steering > Rear Brake Mechanisms

Search by part number:

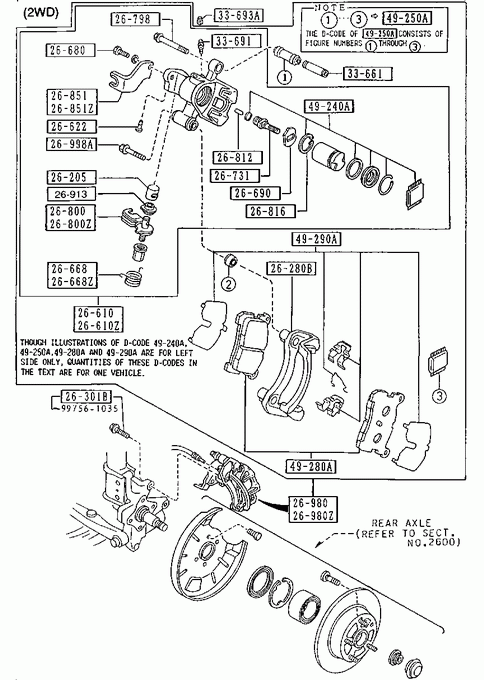

Rear Brake Mechanisms

01/02 (2WD)
02/02 (4WD)

BEARING

Part Number	Qty.	Specifications	Price
H00126205	2		€ 24,04

» 26280B

SUPPORT,MOUNTING

Part Number	Qty.	Specifications	Price
G30426281	2	4WD	€ 76,69
GJ2526281	2	2WD	€ 63,32

» 26301B

BOLT

Part Number	Qty.	Specifications	Price
G30426301	4	4WD	€ 1,72
GJ2526301A	4	2WD	€ 1,63

» 26610

BODY & PISTON(R),CALIPER

Part Number	Qty.	Specifications	Price
G3042661X	1	4WD	€ 212,63
GJ252661X	1	2WD	€ 212,63

» 26610Z

BODY & PISTON(L),CALIPER

Part Number	Qty.	Specifications	Price
G3042671X	1	4WD	€ 212,63
GJ252671X	1	2WD	€ 212,63

» 26622

PIN,STOPPER-RR CALIPER

Part Number	Qty.	Specifications	Price
FB0526622	2	2WD	€ 15,76

» 26668

SPRING(R),LEVER

Part Number	Qty.	Specifications	Price
B10726668	2	4WD	€ 2,90
GJ2526668	1	2WD	€ 5,56

» 26668Z

SPRING(L),LEVER

Part Number	Qty.	Specifications	Price
GJ2526669	1	2WD	€ 5,56

» 26680

BOLT

Part Number	Qty.	Specifications	Price
FA1826680	2		€ 3,20

» 26690

STOPPER,CALIPER-RR

Part Number	Qty.	Specifications	Price
FB0126694	2	4WD	€ 9,29
GJ2526694	2	2WD	€ 9,37

» 26731

SPINDLE,ADJUSTER

Part Number	Qty.	Specifications	Price
H00126731A	2		€ 17,17

» 26798

BOLT

Part Number	Qty.	Specifications	Price
B10726998	2		€ 1,99

» 26800

LEVER(R),OPERATING

Part Number	Qty.	Specifications	Price
G30426800	1	4WD	€ 62,13
GJ2526800	1	2WD	€ 54,89

» 26800Z

LEVER(L),OPERATING

Part Number	Qty.	Specifications	Price
G30426810	1	4WD	€ 62,94
GJ2526810	1	2WD	€ 54,89

» 26812

LINK,CONNECTING

Part Number	Qty.	Specifications	Price
H00126812	2		€ 3,17

» 26816

RING,SNAP-RR CALIPER

Part Number	Qty.	Specifications	Price
GJ2526816	2	2WD	€ 2,73

» 26851

BRACKET(R),CABLE

Part Number	Qty.	Specifications	Price
G30426851	1	4WD
GJ2526851	1	2WD	€ 7,12

» 26851Z

BRACKET(L),CABLE

Part Number	Qty.	Specifications	Price
G30426861	1	4WD
GJ2526861	1	2WD	€ 7,12

» 26913

BOOT,LEVER

Part Number	Qty.	Specifications	Price
H00126913A	2

» 26980

CALIPER(R),RR BRAKE

Part Number	Qty.	Specifications	Price
GJ8726980B	1	NON ASBESTOS 2WD	€ 243,20
GS3926980A	1	NON ASBESTOS 4WD	€ 284,70

» 26980Z

CALIPER(L),RR BRAKE

Part Number	Qty.	Specifications	Price
GJ8726990B	1	NON ASBESTOS 2WD	€ 243,20
GS3926990A	1	NON ASBESTOS 4WD	€ 284,70

» 26998A

BOLT,CALIPER-REAR

Part Number	Qty.	Specifications	Price
GJ2526998	2		€ 2,87

» 33661

SLEEVE,MAIN-FRT CALIPER

Part Number	Qty.	Specifications	Price
G03033661	2		€ 14,72

» 33691

SCREW,BLEEDER

Part Number	Qty.	Specifications	Price
023333691	2		€ 3,63

» 33693A

CAP,BLEEDER SCREW

Part Number	Qty.	Specifications	Price
025933693	2		€ 2,79

» 49240A

SEAL KIT,CALIPER-RR

Part Number	Qty.	Specifications	Price
FB0249240	1	4WD	€ 42,70
GJ252644Z	1	2WD	€ 35,69

» 49250A

BOOT KIT,RR CALIPER

Part Number	Qty.	Specifications	Price
FA672645Z	1	4WD	€ 23,06
GJ252645Z	1	AN (H266-26-45Z) 2WD - 900701 GV1* -206996**	€ 25,06
H2662645Z	1	2WD 900701 - GV1206996-*	€ 25,06

» 49280A

PAD SUB SET,RR CALIPER

Part Number	Qty.	Specifications	Price
FB712628ZA	1	NON ASBESTOS 4WD	€ 50,14
GJ872648ZA	1	NON ASBESTOS 2WD	€ 45,10

» 49290A

ATTACHMENT,PAD-REAR

Part Number	Qty.	Specifications	Price
FB0249290B	1	4WD	€ 43,25
GJ252649Z	1	2WD	€ 27,86

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997561035	1		€ 2,78
