Mazda 626WAGON GV 1988-03 Mazda Governor,low & Reverse Piston

Mazda parts catalog

Parts > Mazda 626WAGON > 1988-03 > Gasoline-engine & Transmission > Governor,low & Reverse Piston(automatic Transmission 3-speed)

Search by part number:

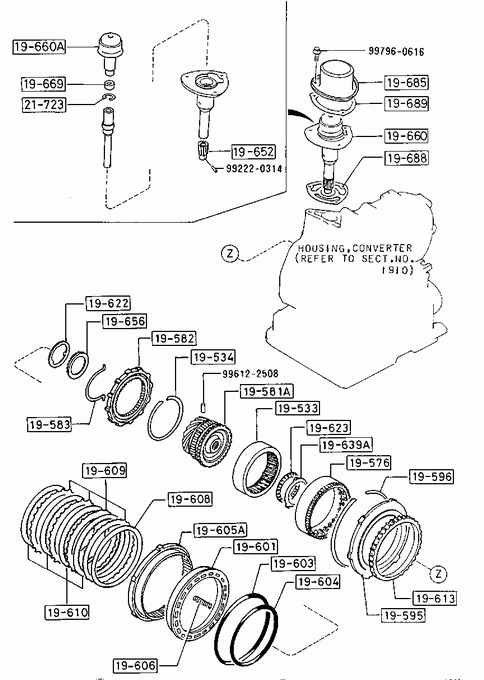

Governor,low & Reverse Piston(automatic Transmission 3-speed)
» 19533 GEAR,INTERNAL

Part Number Qty. Specifications Price
FT0119533 1 - 880425
GV12** -102128
FT5219533 1 880425 -
GV12**102128-

» 19534 RING,SNAP

Part Number Qty. Specifications Price
033819534 1

» 19576 RACE,INNER-O.W.C.

Part Number Qty. Specifications Price
FT0119576 1
€ 63,42

» 19581A HUB,DRIVE

Part Number Qty. Specifications Price
FT0119581B 1 - 880720
GV12** -108307
FT0119581C 1 880720 -
GV12**108307-

» 19582 GEAR,PARKING

Part Number Qty. Specifications Price
FT0119582B 1

» 19583 SPRING,PARKING GEAR

Part Number Qty. Specifications Price
FT0119583A 1

» 19595 CLUTCH,ONE WAY

Part Number Qty. Specifications Price
FT0519595 1

» 19596 RING,SNAP

Part Number Qty. Specifications Price
FT0119596 1

» 19601 PISTON,LOW & REVERSE

Part Number Qty. Specifications Price
FT0119601 1 C (EA01-19-601)

» 19603 SEAL,PISTON

Part Number Qty. Specifications Price
FT0119603 1
€ 19,32

» 19604 SEAL,'O'RING

Part Number Qty. Specifications Price
FT0119604 1
€ 11,66

» 19605A HUB,LOW & REV.

Part Number Qty. Specifications Price
FT0119605 1
€ 44,61

» 19606 SPRING,PISTON

Part Number Qty. Specifications Price
FT0119606 20

» 19608 PLATE,DISHED

Part Number Qty. Specifications Price
FT0119608 1
€ 7,00

» 19609 PLATE,DRIVEN

Part Number Qty. Specifications Price
FT0119609 4
€ 5,61

» 19610 PLATE,DRIVE

Part Number Qty. Specifications Price
FT2119610 4
€ 13,76

» 19613 PLATE,RETAINING

Part Number Qty. Specifications Price
FT0519613 1 T=4.6MM

FT0519614 1 T=4.8MM

FT0519615 1 T=5MM

FT0519616 1 T=5.2MM

FT0519617 1 T=5.4MM

FT0519618 1 T=5.6MM
€ 18,29

» 19622 BEARING,NEEDLE

Part Number Qty. Specifications Price
033819622 1 - 881201
GV12** -114363 € 7,03
FT0119622 1 D=33.8MM
881201 -
GV12**114363- € 4,37

» 19623 BEARING,NEEDLE

Part Number Qty. Specifications Price
033819623 1 A (0338-19-623A)
€ 6,68

» 19639A RACE,BEARING

Part Number Qty. Specifications Price
033819639 1

» 19652 GEAR,GOV.DRIVEN

Part Number Qty. Specifications Price
FT0119652A 1
€ 8,96

» 19656 RACE,BEARING OIL DISTR

Part Number Qty. Specifications Price
043619656 1
€ 4,15

» 19660 GOVERNOR

Part Number Qty. Specifications Price
FT2719640A 1 AN (FT27-19-640B)
- 880501
GV12** -102660
FT2719640B 1 880501 -
GV12**102660- € 80,51

» 19660A VALVE,GOVERNOR

Part Number Qty. Specifications Price
FT2719660 1

» 19669 FILTER,GOVERNOR

Part Number Qty. Specifications Price
FT2119669 1
€ 1,51

» 19685 COVER,GOVERNOR

Part Number Qty. Specifications Price
FT0119685 1

» 19688 GASKET,GOVERNOR

Part Number Qty. Specifications Price
FT0119688 1 ASBESTOS
€ 4,15

» 19689 GASKET,GOVER.COVER

Part Number Qty. Specifications Price
FT0119689 1 ASBESTOS
€ 4,35

» 21723 CLAMP,FILTER-GOVERNOR

Part Number Qty. Specifications Price
FT2121723 1

» 99222 PIN,SPRING

Part Number Qty. Specifications Price
992220314 1

» 99612 PIN,ROLLER

Part Number Qty. Specifications Price
996122508 1

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

Part Number	Qty.	Specifications	Price
FT0119533	1	- 880425 GV12 -102128**
FT5219533	1	880425 - GV12102128-**

Part Number	Qty.	Specifications	Price
FT0119581B	1	- 880720 GV12 -108307**
FT0119581C	1	880720 - GV12108307-**

Part Number	Qty.	Specifications	Price
FT0519613	1	T=4.6MM
FT0519614	1	T=4.8MM
FT0519615	1	T=5MM
FT0519616	1	T=5.2MM
FT0519617	1	T=5.4MM
FT0519618	1	T=5.6MM	€ 18,29

Part Number	Qty.	Specifications	Price
033819622	1	- 881201 GV12 -114363**	€ 7,03
FT0119622	1	D=33.8MM 881201 - GV12114363-**	€ 4,37
