Mazda 626WAGON GV 1988-03 Mazda Torque Converter,oil Pump & Pipings

Mazda parts catalog

Parts > Mazda 626WAGON > 1988-03 > Gasoline-engine & Transmission > Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)

Search by part number:

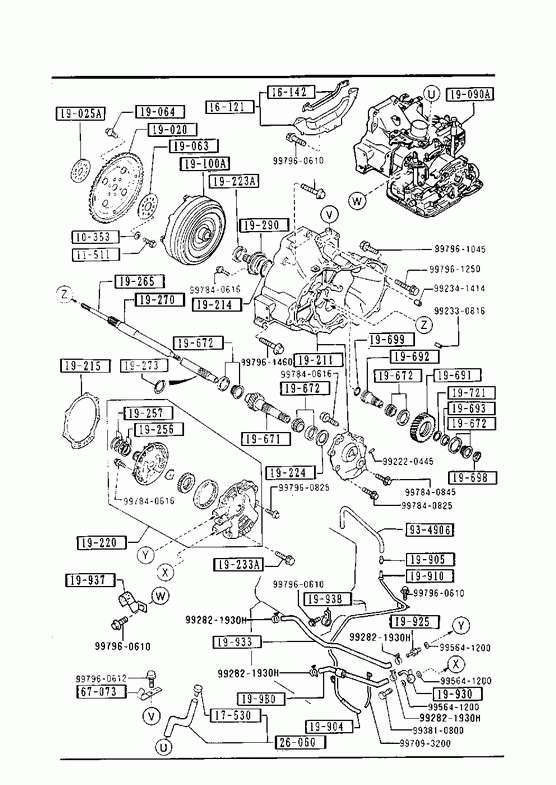

Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
F80111511	6		€ 3,21

» 16121

COVER,UNDER CLUTCH HOUS.

Part Number	Qty.	Specifications	Price
FE5616140B	1		€ 12,64

» 16142

COVER,DUST

Part Number	Qty.	Specifications	Price
FE5616142	1		€ 5,12

» 17530

BREATHER,AIR

Part Number	Qty.	Specifications	Price
088417530	1		€ 3,73

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FT0519020A	1		€ 72,82

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FT0519025	1		€ 26,25

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FT0519063	1	- 880601 GV12 -104514**	€ 2,59
FU0619063	1	880601 - GV12104514-**

» 19064

BOLT

Part Number	Qty.	Specifications	Price
FT0119064A	4		€ 0,95

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FT4519090D	1	A (FT45-19-090E) - 880720 GV12 -108307**
FT4519090E	1	880720 - GV12108307-**

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FT0719100	1		€ 773,07

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FT0519190B	1

» 19214

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119214	1		€ 3,69

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FT0119221A	1	ASBESTOS	€ 5,02

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FT0119220A	1	AN (FT96-19-220)	€ 311,21

» 19223A

SEAL,OIL

Part Number	Qty.	Specifications	Price
FT0119223	1		€ 5,64

» 19224

SHIM

Part Number	Qty.	Specifications	Price
FT0119224	3	T=0.1MM	€ 1,36
FT0119225	3	T=0.12MM	€ 1,59
FT0119226	3	T=0.14MM	€ 1,59
FT0119227	3	T=0.16MM	€ 1,08
FT0119228	3	T=0.18MM	€ 1,08
FT0119229	3	T=0.5MM	€ 1,41

» 19233A

BOLT

Part Number	Qty.	Specifications	Price
FT0119233	3		€ 1,59

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119256	2		€ 6,32

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119257	2		€ 6,32

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FT0519265	1		€ 19,82

» 19270

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FT0619270C	1		€ 69,15

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FT0119273	1

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FT0519290	1		€ 23,70

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FT0619671	1

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FT0119672	4		€ 12,95

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FT0619691	1

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0519692	1

» 19693

SPACER,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0519693	1

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119698	1

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119699	1		€ 1,81

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FT0119721	3	T=0.1MM
FT0119722	3	T=0.12MM	€ 0,25
FT0119723	3	T=0.14MM
FT0119724	3	T=0.16MM
FT0119725	3	T=0.2MM	€ 0,25
FT0119726	3	T=0.5MM

» 19904

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
033819904A	1

» 19905

INSERT

Part Number	Qty.	Specifications	Price
FT0119905	1

» 19910

PIPE,VACUUM

Part Number	Qty.	Specifications	Price
FT7019910B	1

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FT4519925	1	AN (GF20-19-925)	€ 4,64

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FT4519930	1

» 19933

HOSE,OIL

Part Number	Qty.	Specifications	Price
FT4519933A	1

» 19937

CLIP

Part Number	Qty.	Specifications	Price
FT0519937A	1

» 19938

CLIP

Part Number	Qty.	Specifications	Price
FT7019938	1

» 199B0

HOSE,OIL-OIL PUMP

Part Number	Qty.	Specifications	Price
FT45199B0A	1	A (FT45-19-9B0B)

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
FT4521530	1

» 67073

CLIP

Part Number	Qty.	Specifications	Price
G03067074	1

» 934906

HOSE

Part Number	Qty.	Specifications	Price
9934906750	1	L=1.75 CUT IT TO USE	€ 32,86

» 99220

Part Number	Qty.	Specifications	Price
992330816	1		€ 0,73

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341414	1		€ 1,92

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992821930H	1		€ 1,46

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993810800	1		€ 2,65

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641200	1		€ 0,73

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093200	1		€ 2,33

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840825	1		€ 2,55

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840845	1		€ 1,90

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961045	1		€ 2,52

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961250	1		€ 3,01

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961460	1		€ 2,85

Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)
