Mazda 626 GD 1989-08 Mazda Cylinder Head & Cover 01/02 (8-VALVE) 02/02 (12-VALVE)

Mazda parts catalog

Parts > Mazda 626 > 1989-08 > Gasoline-engine 4-cylinder Transmission > Cylinder Head & Cover

Search by part number:

Cylinder Head & Cover

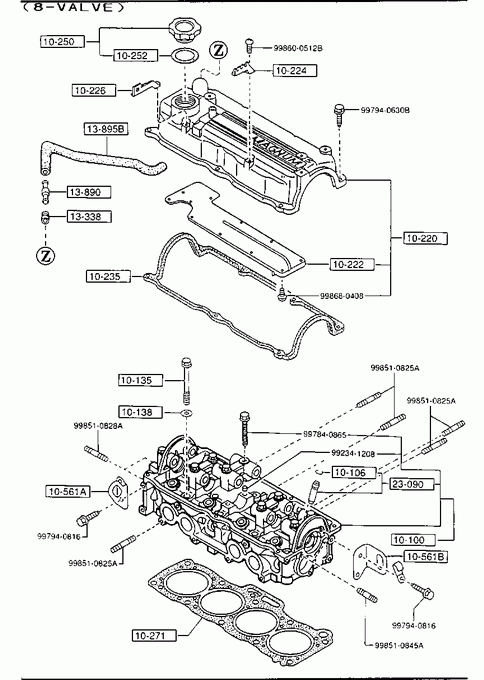

01/02 (8-VALVE)
02/02 (12-VALVE)

HEAD,CYLINDER

Part Number	Qty.	Specifications	Price
F60110100H	1	1600
FE1410100E	1	A (FE14-10-100F) (2000>8-VALVE) - 900706 GD10E2 -202430	€ 751,13
FE1410100F	1	C (FE14-10-100G) (2000>8-VALVE) 900706 - GD10E2202430-	€ 781,47
FE4J10100D	1	AN (FE4J-10-100E) (2000>12-VALVE) - 910501	€ 764,93
FE4J10100E	1	A (FE4J-10-100F) (2000>12-VALVE) 910501 - 920301	€ 764,93
FE4J10100F	1	A (FE4J-10-100G) (2000>12-VALVE) 920301 -	€ 795,83

» 10106

CLIP,VALVE GUIDE

Part Number	Qty.	Specifications	Price
022110106	8	8-VALVE	€ 0,41
024910106	8	12-VALVE	€ 0,40

» 10135

BOLT,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
F80110135A	10		€ 6,28

» 10138

WASHER,PLAIN CYL. HEAD

Part Number	Qty.	Specifications	Price
F80110138	10		€ 1,38

» 10220

COVER,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
F21010220D	1	C (F210-10-220E) 12-VALVE - 900823	€ 195,85
F21010220F	1	12-VALVE 900823 -	€ 203,77
F80110220C	1	A (F801-10-220D) 8-VALVE - 931001	€ 195,85
F80110220D	1	8-VALVE 931001 -	€ 203,77

» 10222

PLATE,OIL BAFFLE

Part Number	Qty.	Specifications	Price
F80210225A	1	8-VALVE	€ 16,05

» 10224

PROTECTOR

Part Number	Qty.	Specifications	Price
FE0110224A	1	8-VALVE	€ 2,79

» 10226

PROTECTOR,HT.CORD

Part Number	Qty.	Specifications	Price
F8C710241	1	8-VALVE	€ 2,83

» 10235

GASKET,HEAD COVER

Part Number	Qty.	Specifications	Price
F20110235D	1	NON ASBESTOS 12-VALVE	€ 7,16
F80110235D	1	8-VALVE	€ 7,16

» 10250

CAP,OIL FILLER

Part Number	Qty.	Specifications	Price
045310250A	1		€ 10,63

» 10252

GASKET

Part Number	Qty.	Specifications	Price
032410252	1		€ 2,33

» 10271

GASKET,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
F66810271A	1	ASBESTOS 1600
FE1H10271B	1	NON ASBESTOS 2000	€ 46,59

» 10561A

HANGER,ENGINE-FRONT

Part Number	Qty.	Specifications	Price
F80110551	1	8-VALVE	€ 5,26

» 10561B

HANGER,ENGINE-REAR

Part Number	Qty.	Specifications	Price
F80110561A	1	8-VALVE	€ 4,41
F8B110566	1	12-VALVE

» 13338

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
E30113338A	1		€ 2,63

» 13890

VALVE,P.C.V.

Part Number	Qty.	Specifications	Price
E30113890A	1		€ 19,72

» 13895B

HOSE,P.C.V.

Part Number	Qty.	Specifications	Price
F80713895	1	1600
F8B113895A	1	(2000>12-VALVE)	€ 6,41
F8C713895A	1	(2000>8-VALVE)

» 23090

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
F2Y123091	4	12-VALVE	€ 7,55
F80123090	8	8-VALVE	€ 13,07

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510825A	1		€ 1,46

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510828A	1		€ 1,46

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510845A	1		€ 1,86

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998600512B	1		€ 0,69

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998680408	1		€ 0,40

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341208	1		€ 1,91

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840865	1		€ 2,20

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940630B	1		€ 1,10

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940816	1		€ 0,79
