Mazda 626 GE 1994-05 Mazda Rear Bumper 01/02 (JAPAN MAKE) 02/02 (USA MAKE)

Mazda parts catalog

Parts > Mazda 626 > 1994-05 > Body Exterior Trim > Rear Bumper(4-door & 5-door)

Search by part number:

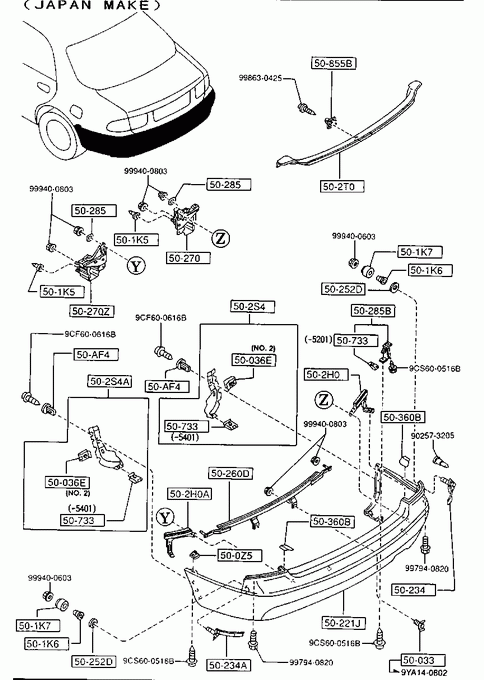

Rear Bumper(4-door & 5-door)

01/02 (JAPAN MAKE)
02/02 (USA MAKE)

SCREW

Part Number	Qty.	Specifications	Price
B45550033	6	JAPAN MAKE - 960201 GE -461302	€ 3,36
GA2A500Z6	5	BLACK USA MAKE	€ 0,79

» 50036E

CLIP

Part Number	Qty.	Specifications	Price
B45550038	8	ILLUST. NO.2 JAPAN MAKE	€ 0,40
GJ2150049	4	ILLUST. NO.3 USA MAKE	€ 1,55

» 500Z5

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
GA7B500Z5	2	JAPAN MAKE	€ 1,66

» 501K5

PIN,LOCATOR

Part Number	Qty.	Specifications	Price
GA5R501K5	2	JAPAN MAKE	€ 5,25

» 501K6

GUIDE

Part Number	Qty.	Specifications	Price
GA5R501K6	2	JAPAN MAKE	€ 4,49

» 501K7

WASHER

Part Number	Qty.	Specifications	Price
GA5R501K7	2	JAPAN MAKE	€ 4,65

» 50221J

BUMPER,REAR

Part Number	Qty.	Specifications	Price
GA7B50221	1	PAINT TO MATCH W/O DEFLECTOR JAPAN MAKE	€ 180,25
GA8L50221A	1	PAINT TO MATCH W/DEFLECTOR JAPAN MAKE	€ 180,25
GAY55022XA	1	USA MAKE

» 50234

SET PLATE NO.2(R),RR BUMP

Part Number	Qty.	Specifications	Price
GA2K502B0A	1	USA MAKE	€ 15,94
GA7B502B0B	1	JAPAN MAKE	€ 12,07

» 50234A

SET PLATE NO.2(L),RR BUMP

Part Number	Qty.	Specifications	Price
GA2K502C0A	1	USA MAKE	€ 15,94
GA7B502C0B	1	JAPAN MAKE	€ 12,07

» 50252D

GASKET,HOLDER-NO. PLATE

Part Number	Qty.	Specifications	Price
J00150252	2		€ 0,71

» 50260D

RETAINER,R.BUMPER

Part Number	Qty.	Specifications	Price
GA7B502R0	1	JAPAN MAKE	€ 40,70

» 50270

STAY(R),RR. BUMPER

Part Number	Qty.	Specifications	Price
GA7B50270	1	JAPAN MAKE	€ 39,17

» 50270Z

STAY(L),RR. BUMPER

Part Number	Qty.	Specifications	Price
GA7B50280	1	JAPAN MAKE	€ 39,56

» 50285

GASKET,SEAL

Part Number	Qty.	Specifications	Price
G03050285	4	USA MAKE - 970224 GE12J2 -806151	€ 2,63
GD7A50285	4	USA MAKE 970224 - GE12J2806151-

» 50285B

BRACKET,SIDE-RR BUMPER

Part Number	Qty.	Specifications	Price
GA2K503D0	2	USA MAKE	€ 9,28
GA5R503D0	2	JAPAN MAKE - 950201 GE -423762	€ 9,28

» 502H0

RETAINER(R),REAR BUMPER

Part Number	Qty.	Specifications	Price
GA2K503J1A	1	USA MAKE	€ 23,18
GA7B502H0	1	JAPAN MAKE	€ 29,41

» 502H0A

RETAINER(L),REAR BUMPER

Part Number	Qty.	Specifications	Price
GA2K503J5A	1	USA MAKE	€ 23,18
GA7B502J0	1	JAPAN MAKE	€ 29,41

» 502S4

SHIELD(R),SPLASH-R.BUMPER

Part Number	Qty.	Specifications	Price
GA2K502S1B	1	USA MAKE	€ 13,68
GA7B50340	1	JAPAN MAKE	€ 13,68

» 502S4A

SHIELD(L),SPLASH-R.BUMPER

Part Number	Qty.	Specifications	Price
GA2K502S5B	1	USA MAKE	€ 13,68
GA7B50350	1	JAPAN MAKE	€ 13,68

» 502T0

SHIELD,REAR SIDE

Part Number	Qty.	Specifications	Price
GA7B502T0	1	AN (GA7B-50-2T0A) (JAPAN MAKE>4-DOOR) - 940701 GE -405615	€ 38,89
GA7B502T0A	1	(JAPAN MAKE>4-DOOR) 940701 - GE405615-	€ 40,46
GA8A502T0	1	AN (GA8A-50-2T0A) (JAPAN MAKE>5-DOOR) - 940701 GE -405615	€ 38,63
GA8A502T0A	1	(JAPAN MAKE>5-DOOR) 940701 - GE405615-	€ 40,19

» 50360B

GUARD(R),REAR BUMPER

Part Number	Qty.	Specifications	Price
GA7B50362	2	IN SPITE OF (R),THIS PART IS APPLICABLE TO BOTH RH&LH SIDE JAPAN MAKE	€ 6,55

» 50733

NUT,SPRING-AIR DAM SKIRT

Part Number	Qty.	Specifications	Price
FB0150733	4	JAPAN MAKE - 950201 GE -423762	€ 1,46

» 50855B

FASTENER

Part Number	Qty.	Specifications	Price
B17350852A	1		€ 2,30

» 50AF4

GROMMET,FILLER

Part Number	Qty.	Specifications	Price
KA7850AF4	4		€ 1,86

» 90257

RIVET,BLIND

Part Number	Qty.	Specifications	Price
902573205	1		€ 0,51

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600616B	1		€ 1,53

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400803	1		€ 1,63

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998630425	1		€ 0,40

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CS600516B	1		€ 0,73

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9YA140802	1		€ 3,10

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

Rear Bumper(4-door & 5-door)
