Mazda 626 GD 1987-06 Mazda Air Conditioner

Mazda parts catalog

Parts > Mazda 626 > 1987-06 > Body Interior Trim > Air Conditioner(diesel)

Search by part number:

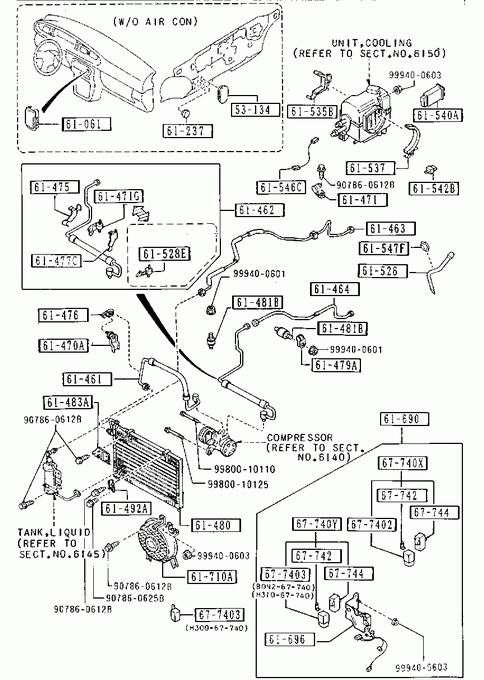

Air Conditioner(diesel)

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
G03061041	1	W/O AIR CON	€ 1,72

» 61061

COVER,HOLE

Part Number	Qty.	Specifications	Price
H26061539	1	W/O AIR CON	€ 7,40

» 61237

GROMMET,DASH PANEL LOWER

Part Number	Qty.	Specifications	Price
GJ2161237	2	W/O AIR CON	€ 4,40

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
G21761461A	1	- 890510 GD1* -335219**	€ 121,04
G21761461B	1	890510 - GD1335219-*

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
G21761460A	1	W/NX110-5L BATTERY
G21861460	1	W/65D23LX2 BATTERY W/50D20LX2 BATTERY

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
GK6761464A	1		€ 79,55

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
GK6761465A	1		€ 48,54

» 61470A

BRACKET,HOSE

Part Number	Qty.	Specifications	Price
G21861470A	1

» 61471

CLIP,PIPE

Part Number	Qty.	Specifications	Price
GJ8361471A	1	A (GJ83-61-471B) - 880301 GD1* -187023**
GJ8361471B	1	880301 - GD1187023-*	€ 2,37

» 61471G

BRACKET,PIPE

Part Number	Qty.	Specifications	Price
G21861471A	1

» 61475

CLIP,PIPE

Part Number	Qty.	Specifications	Price
G21861475A	1

» 61476

CLIP

Part Number	Qty.	Specifications	Price
G21761476A	1

» 61477C

CLIP

Part Number	Qty.	Specifications	Price
G21761477A	1

» 61479A

CLIP

Part Number	Qty.	Specifications	Price
G21161479A	1		€ 2,88

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
G21161480A	1		€ 299,05

» 61481B

RUBBER,INSULATOR

Part Number	Qty.	Specifications	Price
FA6761481	2	AN (G211-61-481)	€ 7,76

» 61483A

BRACKET,CONDENSER

Part Number	Qty.	Specifications	Price
G21161483	1		€ 11,20

» 61492A

BRACKET,CONDENSER

Part Number	Qty.	Specifications	Price
G21161484	1		€ 8,45

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
G7176152X	1	AN (G717-61-52XA) - 870901 GD1* -115899**
GJ2161526A	1	A (GJ21-61-526B) 870901 - 871218 GD1115899-157541*
GJ2161526B	1	871218 - GD1157541-*	€ 14,91

» 61528E

BAND

Part Number	Qty.	Specifications	Price
G21861478A	1	W/65D23LX2 BATTERY W/MODE CONT.-LEVER,W/O RR DUCT W/NX110-5L BATTERY W/50D20LX2 BATTERY

» 61535B

PLATE NO.1,SEAL

Part Number	Qty.	Specifications	Price
GJ836152Y	1		€ 18,33

» 61537

PLATE NO.3,SEAL

Part Number	Qty.	Specifications	Price
GJ8361529	1		€ 14,25

» 61540A

SWITCH,AIR CON.

Part Number	Qty.	Specifications	Price
GJ2161530A	1		€ 80,00

» 61542B

CONNECTOR

Part Number	Qty.	Specifications	Price
856261524	1	- 871001 GD1* -127982**	€ 6,99

» 61546C

HARNESS,WIRE

Part Number	Qty.	Specifications	Price
GJ2161545	1	- 870727 GD1* -105144**	€ 35,18

» 61547F

GROMMET

Part Number	Qty.	Specifications	Price
KA0161547	1	870901 - GD1115899-*	€ 6,05

» 61690

RELAY

Part Number	Qty.	Specifications	Price
G21761690A	1	A (G217-61-690B) W/NX110-5L BATTERY - 870727 GD1* -105144**
G21761690B	1	A (G217-61-690C) W/NX110-5L BATTERY 870727 - 891001 GD1105144-*
G21761690C	1	W/NX110-5L BATTERY 891001 -	€ 104,90

» 61696

BRACKET,RELAY-AIR CON.

Part Number	Qty.	Specifications	Price
G23361695	1	W/NX110-5L BATTERY

» 61710A

FAN,CONDENSER

Part Number	Qty.	Specifications	Price
G21761710	1		€ 214,43

» 677402

RELAY,N.C.

Part Number	Qty.	Specifications	Price
FB2567740	1	10A	€ 23,59

» 677403

RELAY,N.O.

Part Number	Qty.	Specifications	Price
B09267740	2	30A ONE-TOUCH SIDE - 891001	€ 18,79
H30067740	1	30A	€ 21,60
H31067740	2	30A 891001 -	€ 27,53

» 67740X

RELAY & COVER,NORMAL CLOSE

Part Number	Qty.	Specifications	Price
FB1067740	1	10A	€ 26,18

» 67740Y

RELAY & COVER,NORMAL OPEN

Part Number	Qty.	Specifications	Price
FB1167740	2	30A - 891001	€ 26,21

» 67742

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
FB1067742	3		€ 9,60

» 67744

BOOT,RELAY-WATER PROOF

Part Number	Qty.	Specifications	Price
FB1067744	3		€ 4,21

» 90720

SCREW

Part Number	Qty.	Specifications	Price
907860625B	1		€ 2,04

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9980010125	1		€ 3,10

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612B	1		€ 2,56

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010110	1		€ 3,13

Air Conditioner(diesel)
