Exhaust System 01/02 (2000) 02/02 (2200)

Exhaust System |

Mazda parts catalog

Parts > Mazda 626 > 1987-06 > Chassis Axle Suspension & Brake & Steering > Exhaust System

Search by part number:

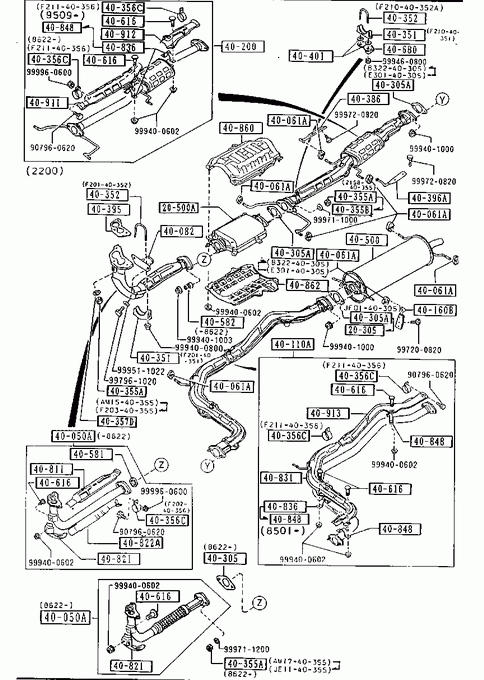

Exhaust System(gasoline)(mt)(switz.)(ohc)

01/02 (2000)
02/02 (2200)

» 20305

GASKET,EXH.PIPE-CONVERTER

Part Number	Qty.	Specifications	Price
B69040305	1	NON ASBESTOS 890501 - GD1334398-*	€ 7,62

» 20500A

CONVERTER,CATALYST

Part Number	Qty.	Specifications	Price
F2D320600	1	2200 - 880622 GD1* -227932**	€ 984,86
F2D420600	1	AN (F2D4-20-600A) 2200 880622 - GD1227932-*	€ 690,87
FEAA20600	1	AN (FEAA-20-600A) 2000	€ 690,87

» 40050A

PIPE,EXHAUST-FRONT

Part Number	Qty.	Specifications	Price
F20140500	1	2200 - 880622 GD1* -227932**	€ 158,77
F20240500A	1	AN (F202-40-500B) 2200 880622 - 890702 GD1227932-347956*	€ 151,75
F20240500B	1	2200 890702 - GD1347956-*	€ 151,75
FED940500B	1	2000	€ 158,77

» 40061A

HANGER,SILENCER

Part Number	Qty.	Specifications	Price
F60240061	9	2000 2200	€ 10,87

» 40082

BRACKET

Part Number	Qty.	Specifications	Price
F20140082	1	2200 - 880622 GD1* -227932**	€ 10,84
F20240082	1	2200 880622 - GD1227932-*	€ 10,58
F80840082	1	2000	€ 10,58

» 40110A

PIPE,MIDDLE

Part Number	Qty.	Specifications	Price
F20140600	1	(2000>2-DOOR)	€ 95,34
F20240600	1	(2200>2-DOOR)	€ 168,04
F21040600	1	A (F210-40-600A) (2000>4-DOOR) (2000>5-DOOR)	€ 134,01
F21140600	1	A (F211-40-600A) (2200>4-DOOR) (2200>5-DOOR)	€ 108,67

» 40160B

BRACKET,HANGER

Part Number	Qty.	Specifications	Price
F20240166	1	A (F202-40-166A) - 880501 GD1* -209655**	€ 5,87
F20240166A	1	880501 - GD1209655-*	€ 6,11

» 40200

SILENCER,PRE

Part Number	Qty.	Specifications	Price
F20240300B	1	2200 890602 - GD1341378-*	€ 95,34
F22640300	1	A (F226-40-300A) 2200 - 880622 GD1* -227932**	€ 95,34
F24540300	1	A (F245-40-300A) 2200 880622 - 881212 GD1227932-282765*	€ 95,34
F24540300A	1	2200 881212 - 890602 GD1282765-341378*
F81240300	1	A (F812-40-300A) 2000 - 890201 GD1* -298930**
F81240300A	1	A (F812-40-300B) 2000 890201 - GD1298930-*	€ 96,79

» 40305

GASKET

Part Number	Qty.	Specifications	Price
F20140305	1	NON ASBESTOS 2200 890501 - GD1334398-*	€ 7,09
F20440305	1	ASBESTOS 2200 880622 - 890501 GD1227932-334398*	€ 6,75

» 40305A

GASKET

Part Number	Qty.	Specifications	Price
B32240305	2	NON ASBESTOS 890501 - GD1334398-*	€ 6,28
E30140305	2	ASBESTOS - 890501 GD1* -334398**	€ 5,98
JF0140305	1	ASBESTOS - 890501 GD1* -334398**	€ 7,25

» 40351

BRACKET

Part Number	Qty.	Specifications	Price
F20140351	1	2200	€ 4,05
F21040351	1	2200 - 880622 GD1* -227932**	€ 6,11
F80840351	1	2000	€ 5,57
F81240351A	1	2000	€ 6,11

» 40352

BOLT,'U'

Part Number	Qty.	Specifications	Price
F20140352	1	A (F201-40-352A) 2200	€ 3,59
F21040352A	1	2200 - 880622 GD1* -227932**	€ 5,06
F80840352	1	2000	€ 5,06
F81240352A	1	A (F812-40-352B) 2000 - 871101 GD1* -138868**	€ 4,67
F81240352B	1	2000 871101 - GD1138868-*	€ 4,86

» 40355A

NUT

Part Number	Qty.	Specifications	Price
215840355	2	- 890501 GD1* -334398**	€ 1,88
AM1540355	3	- 890601 GD1* -340987**	€ 5,31
AM1740355	2	2200 880622 - 890501 GD1227932-334398*	€ 4,27
F20340355	3	890601 - GD1340987-*	€ 5,26
JE1140355	2	2200 890501 - GD1334398-*	€ 3,59

» 40355B

NUT

Part Number	Qty.	Specifications	Price
JE1040355	2	890501 - GD1334398-*	€ 4,95

» 40356C

BAND

Part Number	Qty.	Specifications	Price
F20240356	2	2000 880501 - GD1209655-*	€ 4,20
F21140356	4	2200 880622 - GD1227932-*	€ 4,12

» 40357D

WASHER

Part Number	Qty.	Specifications	Price
AM1540357	3		€ 2,63

» 40386

BRACKET,HANGER

Part Number	Qty.	Specifications	Price
F20140386	1	2000 2200	€ 6,11

» 40395

GASKET,EXHAUST PIPE

Part Number	Qty.	Specifications	Price
F20140306	1	NON ASBESTOS 890501 - GD1334398-*	€ 12,17
F60140395A	1	ASBESTOS - 890501 GD1* -334398**	€ 11,59

» 40396A

BRACKET,HANGER

Part Number	Qty.	Specifications	Price
F20140396	1	- 890602 GD1* -341378**	€ 6,11

» 40401

INSULATOR

Part Number	Qty.	Specifications	Price
082440401	2	ASBESTOS 2000 2200 871101 - 890501 GD1138868-334398*	€ 2,79
F20140908	2	NON ASBESTOS 2000 890501 - GD1334398-*	€ 2,96

» 40500

SILENCER,MAIN

Part Number	Qty.	Specifications	Price
F20240100A	1	A (F202-40-100B) 2200 - 890301 GD1* -309994**	€ 99,99
F20240100B	1	A (F202-40-100D) 2200 890301 - GD1309994-*
FEC140100A	1	A (FEC1-40-100B) 2000 - 890302 GD1* -310506**
FEC140100B	1	A (FEC1-40-100D) 2000 890302 - GD1310506-*	€ 99,99

» 40581

RING,SEAL

Part Number	Qty.	Specifications	Price
E52340581	1	2000 2200	€ 26,29

» 40582

SPRING

Part Number	Qty.	Specifications	Price
E33140582	2	2000 2200	€ 8,46

» 40616

BOLT

Part Number	Qty.	Specifications	Price
E52140616	14	2000	€ 1,25

» 40680

DAMPER,DYNAMIC

Part Number	Qty.	Specifications	Price
F21040680A	1	A (F210-40-680B) - 871030 GD1* -138202**	€ 42,78
F21040680B	1	2000 2200	€ 47,79

» 40811

PROTECTOR,FRONT PIPE

Part Number	Qty.	Specifications	Price
F20140811	1	2200 - 880622 GD1* -227932**	€ 10,33
F80840811A	1	2000	€ 12,55

» 40821

PROTECTOR,FRONT PIPE

Part Number	Qty.	Specifications	Price
F20140821	1	2200 - 880622 GD1* -227932**	€ 7,81
F20240822	1	2200 880622 - GD1227932-*	€ 7,23
FED940821	1	2000	€ 7,76

» 40822A

PROTECTOR,FRONT PIPE

Part Number	Qty.	Specifications	Price
F20140822	1	2200 - 880622 GD1* -227932**	€ 10,44

» 40831

PROTECTOR,MIDDLE PIPE

Part Number	Qty.	Specifications	Price
F20140831	1	A (F201-40-831A) 2-DOOR - 880501 GD1* -209655**
F20140831A	1	2-DOOR 880501 - GD1209655-*	€ 12,12
F21040831	1	4-DOOR 5-DOOR	€ 16,50

» 40836

BRKT,PROTECTOR

Part Number	Qty.	Specifications	Price
F20140803	3	2200 - 880501 GD1* -209655**	€ 3,02

» 40848

BRACKET,PROTECTOR

Part Number	Qty.	Specifications	Price
F20140804	5	2200 890509 - GD1334810-*	€ 3,19

» 40860

PROTECTOR,CONVERTER

Part Number	Qty.	Specifications	Price
F20140860	1	2200	€ 35,91
F80840860	1	2000	€ 33,85

» 40862

PROTECTOR,CONVERTER

Part Number	Qty.	Specifications	Price
F20140871	1	A (F201-40-871A) 2200 - 890511 GD1* -335615**	€ 34,52
F20140871A	1	2200 890511 - GD1335615-*	€ 35,91
F80840871	1	2000	€ 33,85

» 40911

PROTECTOR,PRE SILENCER

Part Number	Qty.	Specifications	Price
F20140911A	1	2200	€ 17,40
F80840911A	1	2000	€ 17,40

» 40912

PROTECTOR,PRE SILENCER

Part Number	Qty.	Specifications	Price
F20140912	1	2200	€ 12,64
F80840912	1	2000	€ 12,64

» 40913

PROTECTOR,PRE SILENCER

Part Number	Qty.	Specifications	Price
F20140913	1		€ 20,11

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200820	1		€ 1,14

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907960620	1		€ 0,75

» 90901

NUT

Part Number	Qty.	Specifications	Price
999460800	1		€ 2,54

» 90901

NUT

Part Number	Qty.	Specifications	Price
999960600	1		€ 0,40

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401003	1		€ 2,18

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999511022	1		€ 0,63

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711000	1		€ 0,51

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711200	1		€ 0,51

Exhaust System(gasoline)(mt)(switz.)(ohc)
