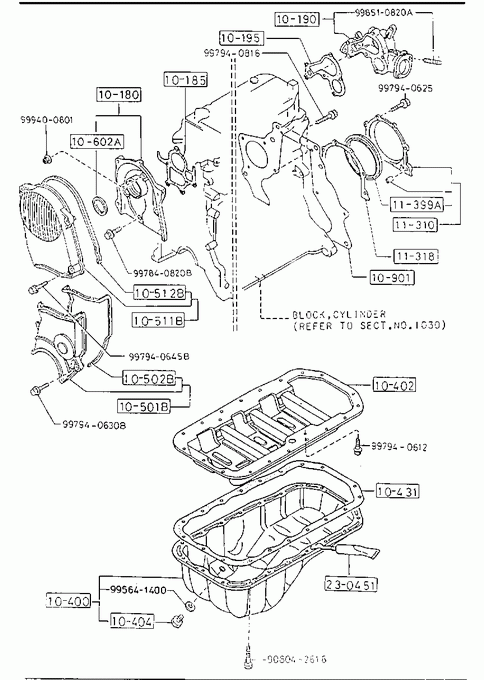

Oil Pan & Timing Cover(gasoline)(2200cc)
-
» 10180 HOUSING,FRONT Part Number Qty. Specifications Price F20110180A 1 A (F201-10-180B) » 10185 GASKET,FRONT HOUSING Part Number Qty. Specifications Price F21010185A 1 NON ASBESTOS € 8,60 » 10190 HOUSING,REAR Part Number Qty. Specifications Price F20110190A 1 A (F201-10-190B)
- 880215
GD1*** -180272€ 75,69 F20110190B 1 C (F201-10-190C)
880215 - 881101
GD1***180272-266925F20110190C 1 A (F201-10-190D)
881101 - 890204
GD1***266925-300398F20110190D 1 A (F201-10-190E)
890204 -
GD1***300398-€ 75,69 » 10195 GASKET,RR.HOUSING Part Number Qty. Specifications Price F20110193 1 ASBESTOS € 5,26 » 10400 PAN,OIL Part Number Qty. Specifications Price FE3N10400B 1 € 132,95 » 10402 PLATE,OIL BAFFLE-OIL PAN Part Number Qty. Specifications Price FE1H1040YB 1 € 74,69 » 10404 PLUG,DRAIN Part Number Qty. Specifications Price HE0310404 1 € 2,18 » 10431 GASKET,OIL PAN Part Number Qty. Specifications Price F80110431 1 € 9,04 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price FE4R10501 1 A (FE4R-10-501A)
- 880901
GD1*** -248571€ 27,01 FE4R10501A 1 A (FE4R-10-500C)
880901 -
GD1***248571-€ 27,01 » 10502B GASKET Part Number Qty. Specifications Price FE1H10502A 1 NON ASBESTOS € 15,10 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price F21010510 1 € 47,40 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price F21010512 1 NON ASBESTOS € 8,60 » 10602A SEAL,OIL Part Number Qty. Specifications Price FE0110602 1 KEEPER € 8,37 » 10901 PLATE,END Part Number Qty. Specifications Price F80110901A 1 MANUAL TRANSMISSION € 20,35 F89210901 1 AUTOMATIC TRANSMISSION » 11310 COVER,REAR Part Number Qty. Specifications Price F80211310A 1 A (F802-11-310B)
- 890401
GD1*** -323981F80211310B 1 890401 -
GD1***323981-€ 98,67 » 11318 GASKET,REAR COVER Part Number Qty. Specifications Price F80111318 1 ASBESTOS € 4,24 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price F80211399 1 € 21,44 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 90781 BOLT & WASHER Part Number Qty. Specifications Price 908042616 1 € 1,18 » 90857 STUD Part Number Qty. Specifications Price 998510820A 1 € 1,46 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400801 1 € 1,64 » 99560 GASKET Part Number Qty. Specifications Price 995641400 1 € 1,19 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997840820B 1 € 2,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940625 1 € 1,03 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630B 1 € 1,10 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940645B 1 € 1,20 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940816 1 € 0,79
