Mazda 626 GD 1987-06 Mazda Cylinder Head & Cover

Mazda parts catalog

Parts > Mazda 626 > 1987-06 > Gasoline-engine & Transmission > Cylinder Head & Cover(gasoline)(2000cc>dohc)

Search by part number:

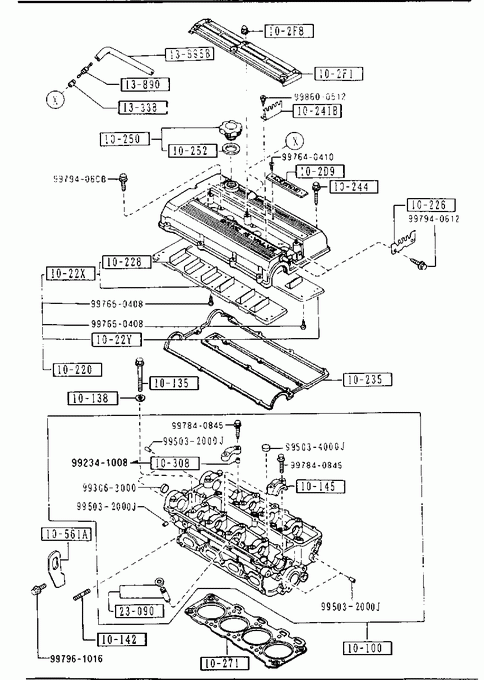

Cylinder Head & Cover(gasoline)(2000cc>dohc)

HEAD,CYLINDER

Part Number	Qty.	Specifications	Price
FE3N10100D	1	AN (FE3N-10-100E) - 871110 GD1* -140955**
FE3N10100E	1	C (FE3N-10-100F) 871110 - 881001 GD1140955-257979*
FE3N10100F	1	A (FE3N-10-100G) 881001 - GD1257979-*	€ 1570,85

» 10135

BOLT,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
FE3N10135	10		€ 6,46

» 10138

WASHER,PLAIN CYL. HEAD

Part Number	Qty.	Specifications	Price
F80110138	10		€ 1,38

» 10142

STUD,EX. MANIFOLD

Part Number	Qty.	Specifications	Price
B66010104A	9		€ 4,32

» 10145

SPACER,DIST.-CYL. HEAD

Part Number	Qty.	Specifications	Price
FE3N10145A	1

» 10220

COVER,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
FE3N10220D	1	A (FE5A-10-220) - 870901 GD1* -115899**
FE5A10220A	1	C (FE5A-10-220B) 870901 - GD1115899-*

» 10226

PROTECTOR,HT.CORD

Part Number	Qty.	Specifications	Price
FE3N10241	1	AN (FE3N-10-241A)

» 10228

GASKET,OIL BAFFLE PLATE

Part Number	Qty.	Specifications	Price
FE3N10228	1	- 870901 GD1* -115899**

» 1022X

PLATE,OIL BAFFLE-IN.SIDE

Part Number	Qty.	Specifications	Price
FE3N1022XB	1	A (FE5A-10-22X) - 870901 GD1* -115899**
FE5A1022XA	1	A (FE5A-10-222A) 870901 - GD1115899-*	€ 19,17

» 1022Y

PLATE,OIL BAFFLE-EX.

Part Number	Qty.	Specifications	Price
FE3N1022YB	1	A (FE5A-10-22Y) - 870901 GD1* -115899**
FE5A1022YA	1	A (FE5A-10-22YB) 870901 - GD1115899-*

» 10235

GASKET,HEAD COVER

Part Number	Qty.	Specifications	Price
FE3N10235A	1	A (FE3N-10-235B)	€ 18,72

» 10241B

PROTECTOR,HT.CORD-S.TANK

Part Number	Qty.	Specifications	Price
B66010241	2		€ 2,17

» 10244

BOLT,CYLINDER HEAD COVER

Part Number	Qty.	Specifications	Price
FE3N10244	9	A (99826-0630)	€ 2,17

» 10250

CAP,OIL FILLER

Part Number	Qty.	Specifications	Price
045310250	1	A (0453-10-250A) - 881001 GD1* -257979**	€ 10,22
045310250A	1	881001 - GD1257979-*	€ 10,63

» 10252

GASKET

Part Number	Qty.	Specifications	Price
032410252	1		€ 2,33

» 10271

GASKET,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
FE3N10271	1	NON ASBESTOS	€ 48,00

» 102D9

ORNAMENT,PLATE

Part Number	Qty.	Specifications	Price
FE3N102D9A	1	AN (F8K1-10-2D9)	€ 11,25

» 102F1

PLATE,PLUG HOLE

Part Number	Qty.	Specifications	Price
FE3N102F1B	1		€ 65,06

» 102F8

CAP,NUT-HEAD COVER

Part Number	Qty.	Specifications	Price
FE3N102F8A	6	- 890801 GD1* -355008**	€ 1,11

» 10308

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
F24810308	22	- 881001 GD1* -257979**	€ 2,33

» 10561A

HANGER,ENGINE-FRONT

Part Number	Qty.	Specifications	Price
FE3N10561A	1		€ 5,14

» 13338

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
E30113338A	1		€ 2,63

» 13890

VALVE,P.C.V.

Part Number	Qty.	Specifications	Price
E30113890A	1		€ 19,72

» 13895B

HOSE,P.C.V.

Part Number	Qty.	Specifications	Price
FE3P13895	1	A (FE3P-13-895A) - 871118 GD1* -144370**
FE3P13895A	1	871118 - GD1144370-*	€ 5,07

» 23090

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
FEYA10290	16	A (FEYA-10-291) - 870901 GD1* -115899**
FEYA10291	16	870901 - GD1115899-*	€ 8,07

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997640410	1

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997650408	1		€ 0,58

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998600512	1		€ 0,70

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341008	1		€ 1,85

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995032000J	1		€ 2,59

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993063000	1		€ 1,90

» 99503

PLUG,HEXAGON SOCKET

Part Number	Qty.	Specifications	Price
995034000J	1		€ 2,19

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840845	1		€ 1,90

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961016	1		€ 2,24

Cylinder Head & Cover(gasoline)(2000cc>dohc)
