- Parts > Mazda 323WAGON > 1989-09 > Body Interior Trim > Front Door Trims & Related Parts
- Search by part number:
-

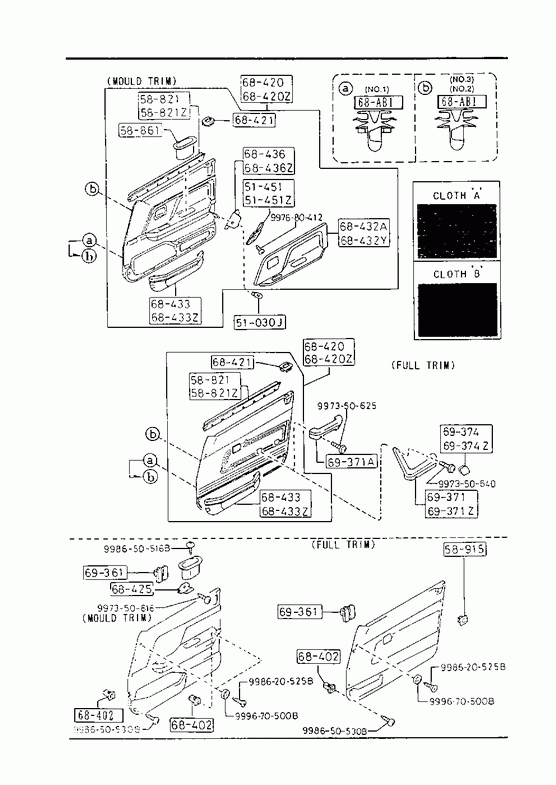

Front Door Trims & Related Parts
-
» 51030J BULB Part Number Qty. Specifications Price 997016030 2 12V 3.4W
MOULD TRIM€ 1,72 » 51451 LENS(R),COURTESY LAMP Part Number Qty. Specifications Price B11168441 1 (W/DR. COURTESY LAMP-WHITE>MOULD TRIM) BG9568441 1 (W/DR. COURTESY LAMP-RED>MOULD TRIM) € 9,24 » 51451Z LENS(L),COURTESY LAMP Part Number Qty. Specifications Price B11168471 1 (W/DR. COURTESY LAMP-WHITE>MOULD TRIM) BG9568471 1 (W/DR. COURTESY LAMP-RED>MOULD TRIM) € 9,33 » 58821 WEATHERSTRIP(R),INN. Part Number Qty. Specifications Price B09358821 1 € 21,68 » 58821Z WEATHERSTRIP(L),INN. Part Number Qty. Specifications Price B09359821 1 € 21,25 » 58861 HANDLE,PULL Part Number Qty. Specifications Price B11068435 2 MOULD TRIM » 58915 PLUG,HOLE Part Number Qty. Specifications Price B10068422 4 FULL TRIM,VINYL € 0,90 » 68402 GROMMET,SCREW Part Number Qty. Specifications Price B11068429 4 MOULD TRIM € 1,28 » 68420 TRIM(R),DOOR Part Number Qty. Specifications Price B10168420A 1 TDA-FULL TRIM,VINYL, STD MATERIAL BA5A68420 1 TDG-FULL TRIM,CLOTH'B',FINLAND BA5B68420 1 TDF-FULL TRIM,CLOTH'A',FINLAND BA5D68420 1 (TDD-MOULD TRIM>W/O POWER WIND>W/DR. COURTESY LAMP-RED) BA5E68420 1 (TDD-MOULD TRIM>W/O POWER WIND>W/DR. COURTESY LAMP-WHITE) BA5F68420 1 (TDD-MOULD TRIM>W/POWER WIND>W/DR. COURTESY LAMP-WHITE) BA5G68420 1 (TDD-MOULD TRIM>W/POWER WIND>W/DR. COURTESY LAMP-RED) BA5H68420 1 TDC-FULL TRIM,CLOTH'B', EXC.FINLAND BA5J68420 1 TDB-FULL TRIM,CLOTH'A', EXC.FINLAND BF7768420 1 TDE-FULL TRIM,VINYL, NON FLAMMABLE » 68420Z TRIM(L),DOOR Part Number Qty. Specifications Price B10168450A 1 TDA-FULL TRIM,VINYL, STD MATERIAL BA5A68450 1 TDG-FULL TRIM,CLOTH'B',FINLAND BA5B68450 1 TDF-FULL TRIM,CLOTH'A',FINLAND BA5D68450 1 (TDD-MOULD TRIM>W/O POWER WIND>W/DR. COURTESY LAMP-RED) BA5E68450 1 (TDD-MOULD TRIM>W/O POWER WIND>W/DR. COURTESY LAMP-WHITE) BA5F68450 1 (TDD-MOULD TRIM>W/POWER WIND>W/DR. COURTESY LAMP-WHITE) BA5G68450 1 (TDD-MOULD TRIM>W/POWER WIND>W/DR. COURTESY LAMP-RED) BA5H68450 1 TDC-FULL TRIM,CLOTH'B', EXC.FINLAND BA5J68450 1 TDB-FULL TRIM,CLOTH'A', EXC.FINLAND BF7768450 1 TDE-FULL TRIM,VINYL, NON FLAMMABLE » 68421 BEZEL,INNER LOCK Part Number Qty. Specifications Price B10168421 2 » 68425 BRACKET,PULL HANDLE Part Number Qty. Specifications Price B11068425 2 MOULD TRIM » 68432A FRAME(R),DOOR TRIM-FRT Part Number Qty. Specifications Price B11068432 1 FOR CKD MODEL
(TDD-MOULD TRIM>W/O POWER WIND)B11268432 1 FOR CKD MODEL
(TDD-MOULD TRIM>W/POWER WIND)» 68432Y FRAME(L),DOOR TRIM-FRT Part Number Qty. Specifications Price B11068462 1 FOR CKD MODEL
(TDD-MOULD TRIM>W/O POWER WIND)B11268462 1 FOR CKD MODEL
(TDD-MOULD TRIM>W/POWER WIND)» 68433 POCKET(R),DOOR TRIM Part Number Qty. Specifications Price BH266842X 1 MOULD TRIM
FULL TRIM,CLOTH» 68433Z POCKET(L),DOOR TRIM Part Number Qty. Specifications Price BH266845X 1 MOULD TRIM
FULL TRIM,CLOTH» 68436 BRACKET(R),COURTESY LAMP Part Number Qty. Specifications Price B11168436 1 MOULD TRIM € 6,17 » 68436Z BRACKET(L),COURTESY LAMP Part Number Qty. Specifications Price B11168466 1 MOULD TRIM € 6,48 » 68AB1 FASTENER Part Number Qty. Specifications Price B10068401 14 ILLUST. NO.1
- 930701
BW**** -524776€ 1,14 G03168401 10 AN (B455-68-AB1A)
ILLUST. NO.2
- 930701
BW**** -524776€ 0,46 G35068AB1 24 ILLUST. NO.3
930701 -
BW****524776-€ 0,70 » 69361 GROMMET,SCREW Part Number Qty. Specifications Price B31669361 6 FULL TRIM € 1,28 » 69371 REST(R),ARM Part Number Qty. Specifications Price BF7069370C 1 FULL TRIM,CLOTH » 69371A REST,ARM Part Number Qty. Specifications Price B1006937X 2 FULL TRIM,VINYL » 69371Z REST(L),ARM Part Number Qty. Specifications Price BF7069390C 1 FULL TRIM,CLOTH » 69374 CAP(R),PULL HANDLE Part Number Qty. Specifications Price BF7069372 1 FULL TRIM,CLOTH » 69374Z CAP(L),PULL HANDLE Part Number Qty. Specifications Price BF7069392 1 FULL TRIM,CLOTH » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350616 1 € 0,60 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350625 1 € 0,83 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350640 1 € 0,83 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997680412 1 € 1,01 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998620525B 1 € 0,41 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650516B 1 € 0,52 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650530B 1 € 0,69 » 99967 WASHER,FINISHING Part Number Qty. Specifications Price 999670500B 1 € 0,63
