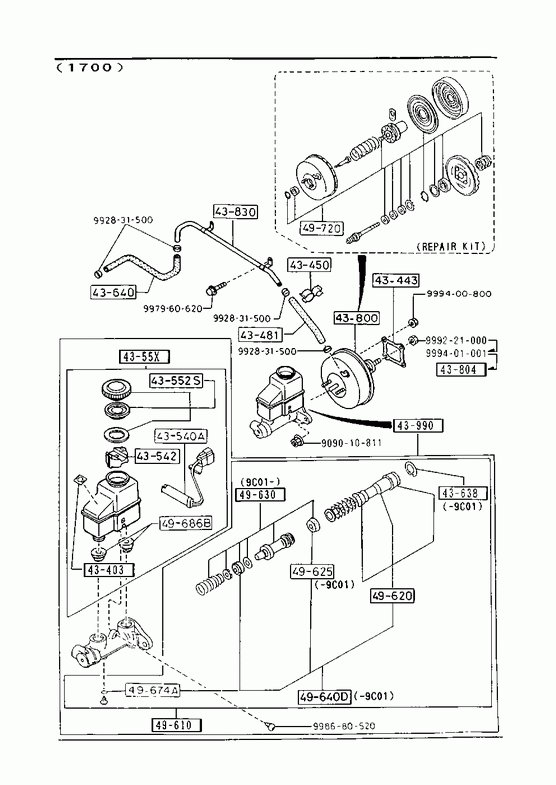

Brake Master Cylinder & Power Brake 01/04 (1500) 02/04 (1600>2WD) 03/04 (1600>4WD) 04/04 (1700)

Brake Master Cylinder & Power Brake |

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Chassis Piping & Fuel Tank > Brake Master Cylinder & Power Brake

Search by part number:

Brake Master Cylinder & Power Brake

01/04 (1500)
02/04 (1600>2WD)
03/04 (1600>4WD)
04/04 (1700)

LABEL,ISO

Part Number	Qty.	Specifications	Price
TA0443403A	1		€ 2,36

» 43443

GASKET,VAC POWER ASSIST

Part Number	Qty.	Specifications	Price
H00143443	1	NON ASBESTOS	€ 1,23

» 43450

CLIP,VACUUM HOSE

Part Number	Qty.	Specifications	Price
BH8743450	1	1700 - 900501 BW -505421

» 43481

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
BA5C43481	1	(1600>4WD)
BF8143481B	1	(1600>2WD)	€ 8,97
BH8743481B	1	1700	€ 8,89

» 43540A

SENSOR,RESERVE TANK

Part Number	Qty.	Specifications	Price
GA9743540	1		€ 44,36

» 43542

FLOAT

Part Number	Qty.	Specifications	Price
359743542	1		€ 8,14

» 43552S

CAP SET,RESERVE TANK

Part Number	Qty.	Specifications	Price
B09349580	1	(1600>4WD) - 910601 BW -513163	€ 6,73
B60349580	1	AN (T060-43-55Y) (1600>2WD) 1700	€ 8,93
D00149650	1	A (D001-49-650A) 1500 - 900701 BW -506436	€ 11,95
D00149650A	1	1500 900701 - BW506436-	€ 12,43

» 4355X

SET,TANK

Part Number	Qty.	Specifications	Price
BJY04355X	1	(1600>2WD)	€ 90,41
BJY94355X	1	1500	€ 93,10
BKY44355X	1	1700
BKY64355X	1	(1600>4WD)	€ 84,08

» 43638

RING,RETAINING

Part Number	Qty.	Specifications	Price
GA0249638	1	- 891201 BW -501882	€ 2,65

» 43640

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
BF6743640B	1	1500	€ 27,11
BF8143640C	1	1600	€ 21,89
BH8743640B	1	1700	€ 26,10

» 43800

VACUUM POWER ASSIST

Part Number	Qty.	Specifications	Price
BA5C43800	1	(1600>4WD)
BF6743800	1	1500	€ 471,77
BF8143800C	1	(1600>2WD)	€ 471,77
BK6443800	1	1700	€ 471,77

» 43804

NUT

Part Number	Qty.	Specifications	Price
B01C43954	1	930601 - BW524516-	€ 2,21

» 43830

PIPE,VACUUM

Part Number	Qty.	Specifications	Price
BA5C43830	1	(1600>4WD)
BF8143830A	1	(1600>2WD)	€ 19,27
BH8743830B	1	1700

» 43990

CYL.,TANDEM MASTER

Part Number	Qty.	Specifications	Price
BJ794340Z	1	1500 931101 - BW526183-	€ 293,69
BJ804340Z	1	(1600>2WD) 931101 - BW526183-	€ 293,69
BJY04340Z	1	A (BJ80-43-40Z) (1600>2WD) - 931101 BW -526183	€ 282,28
BJY94340Z	1	A (BJ79-43-40Z) 1500 - 931101 BW -526183
BK644340Z	1	1700 931101 - BW526183-	€ 272,26
BK954340Z	1	(1600>4WD) 931101 - BW526183-	€ 293,69
BKY44340Z	1	A (BK64-43-40Z) 1700 - 931101 BW -526183
BKY64340Z	1	A (BK95-43-40Z) (1600>4WD) - 931101 BW -526183

» 49610

PARTS KIT,INN.-BRAKE

Part Number	Qty.	Specifications	Price
BJ7949610	1	AN (G211-43-61ZA) - 891201 BW -501882	€ 88,86
G2114361ZA	1	891201 - BW501882-	€ 93,39

» 49620

PISTON,PRIMARY

Part Number	Qty.	Specifications	Price
BJ7949620	1	AN (BJ79-49-620A) - 891201 BW -501882	€ 57,00
BJ7949620A	1	891201 - BW501882-	€ 59,30

» 49625

CUP,SECONDARY

Part Number	Qty.	Specifications	Price
FB0149625	1	- 891201 BW -501882	€ 2,87

» 49630

PISTON,FLOATING

Part Number	Qty.	Specifications	Price
H2604363ZA	1	WAGON 891201 - BW501882-	€ 52,48

» 49640D

PARTS KIT,INNER

Part Number	Qty.	Specifications	Price
BJ7949640	1	- 891201 BW -501882	€ 88,86

» 49674A

RING,'O'-MASTER CYL.

Part Number	Qty.	Specifications	Price
9954100403	1		€ 3,28

» 49686B

BUSH,ELBOW JOINT

Part Number	Qty.	Specifications	Price
030549686B	2	- 921201 BW -522141	€ 2,09
F10049686	2	921201 - BW522141-	€ 3,48

» 49720

REPAIR KIT

Part Number	Qty.	Specifications	Price
B10749720	1	4WD
BF6749720	1	2WD	€ 157,17

» 90901

NUT

Part Number	Qty.	Specifications	Price
999221000	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010811	1		€ 1,51

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401001	1		€ 2,07

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998680520	1		€ 0,28

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831500	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18
