- Parts > Mazda 323WAGON > 1989-09 > Chassis Piping & Fuel Tank > Tires & Jack
- Search by part number:
-

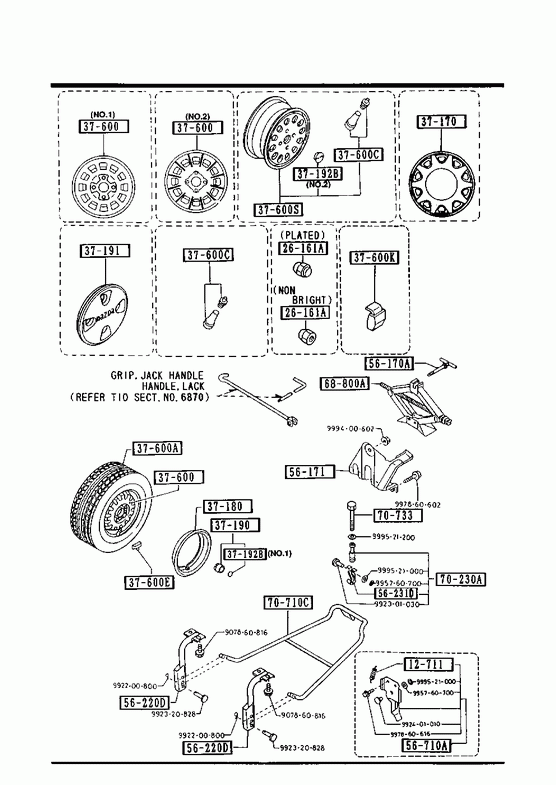

Tires & Jack
-
» 12711 SPRING,TENSIONER Part Number Qty. Specifications Price RF0212711A 1 W/SPARE T.SAFTY LOCK,W.GER € 3,08 » 26161A NUT,HUB Part Number Qty. Specifications Price 060326161 16 NON BRIGHT € 2,43 B00237160 16 PLATED € 3,51 » 37170 CAP,WHEEL Part Number Qty. Specifications Price B45837170A 4 2WD € 28,17 » 37180 RING,WHEEL Part Number Qty. Specifications Price 101137182D 4 FOR 13 INCH WHEEL
2WD» 37190 CAP,CENTER Part Number Qty. Specifications Price B00137190 4 2WD € 10,81 » 37191 CAP,WHEEL-HALF Part Number Qty. Specifications Price BL5337170 4 FOR 5J & 5.5J WHEEL
2WD€ 28,63 BL5537170 4 FOR 4.5J WHEEL
(2WD>W/O EGI)€ 28,62 » 37192B EMBLEM,CENTER Part Number Qty. Specifications Price B00137192 4 ILLUST. NO.1
2WD€ 4,07 B00437192 4 ILLUST. NO.2 € 14,42 » 37600 WHEEL,DISC-STEEL Part Number Qty. Specifications Price 9965604530 5 4.5JX13 P=114/O=45
ILLUST. NO.1
(2WD>W/O EGI)€ 48,25 9965665030 5 5JX13 P=114/O=45
ILLUST. NO.2
2WD€ 38,15 » 37600A TIRE Part Number Qty. Specifications Price 9062587673 5 175/70R13 82S BS 9062597673 5 175/70R13 82S SEMPER 9962801553 5 155/80R13 78S BS 9962811553 5 155/80R13 78S SEMPER » 37600C VALVE,AIR Part Number Qty. Specifications Price 9963604130 5 TR413 BRIDGESTONE € 9,31 » 37600E WEIGHT,DISC WHEEL-STEEL Part Number Qty. Specifications Price 9965530005 5 5G 9965530010 5 10G 9965530015 5 15G 9965530020 5 20G 9965530025 5 25G 9965530030 5 30G 9965530035 5 35G 9965530040 5 40G 9965530045 5 45G 9965530050 5 50G 9965530055 5 55G 9965530060 5 60G » 37600K WEIGHT,DISC WHEEL-ALUMI Part Number Qty. Specifications Price 9965590005 5 5G FOR 1-PIECE WHL € 3,35 9965590010 5 10G FOR 1-PIECE WHL € 3,35 9965590015 5 15G FOR 1-PIECE WHL € 3,35 9965590020 5 20G FOR 1-PIECE WHL € 3,35 9965590025 5 25G FOR 1-PIECE WHL 9965590030 5 30G FOR 1-PIECE WHL 9965590035 5 35G FOR 1-PIECE WHL 9965590040 5 40G FOR 1-PIECE WHL 9965590045 5 45G FOR 1-PIECE WHL 9965590050 5 50G FOR 1-PIECE WHL 9965590055 5 55G FOR 1-PIECE WHL 9965590060 5 60G FOR 1-PIECE WHL » 37600S WHEEL SET,DISC-ALUMI Part Number Qty. Specifications Price 8BB537600 5 5JX13 P=114/O=45
- 921101
BW**** -521704€ 286,97 8BB537600A 5 921101 -
BW****521704-» 56170A BOLT,JACK SET Part Number Qty. Specifications Price B00156170C 1 € 8,45 » 56171 BRACKET,JACK Part Number Qty. Specifications Price B21656170A 1 € 8,27 » 56220D BRKT,TIRE HANGER FRAME Part Number Qty. Specifications Price B21856220A 2 € 27,36 » 56231D HOOK,SPARE TIRE CLAMP Part Number Qty. Specifications Price B21656231A 1 € 4,42 » 56710A LOCK,SAFETY-MEMBER NO.7 Part Number Qty. Specifications Price BJ2156710A 1 W/SPARE T.SAFTY LOCK,W.GER € 21,25 » 68800A JACK Part Number Qty. Specifications Price B21637790A 1 € 89,17 » 70230A BUTTON,PUSH Part Number Qty. Specifications Price B21656230A 1 € 20,59 » 70710C FRAME,TIRE HANGER Part Number Qty. Specifications Price B21656210 1 W/O SPARE T.SAFTY LOCK € 31,26 BJ2156210 1 W/SPARE T.SAFTY LOCK,W.GER € 52,01 » 70733 BOLT Part Number Qty. Specifications Price B21656221 1 € 5,20 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860616 1 € 2,41 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860816 1 € 2,06 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400602 1 € 1,28 » 99203 WASHER,PLAIN Part Number Qty. Specifications Price 999521000 1 € 0,51 » 99220A PIN,SNAP Part Number Qty. Specifications Price 992200800 1 € 2,21 » 99230 PIN,JOINT Part Number Qty. Specifications Price 992301030 1 » 99230 PIN,JOINT Part Number Qty. Specifications Price 992320828 1 € 2,61 » 99576 RING,STOP-'E' Part Number Qty. Specifications Price 995760700 1 € 0,61
