- Parts > Mazda 323WAGON > 1989-09 > Chassis Axle Suspension,brake & Steering > Front Suspension Mechanisms
- Search by part number:
-

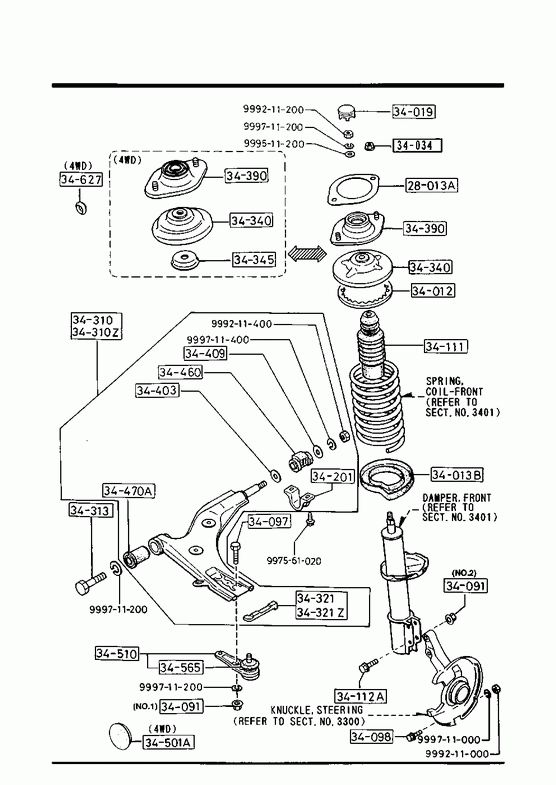

Front Suspension Mechanisms
-
» 28013A SHEET,RUBBER Part Number Qty. Specifications Price G03028013A 2 2WD € 1,90 » 34012 SHEET,RUBBER Part Number Qty. Specifications Price B00134012 2 A (B455-34-012) € 6,76 » 34013B SHEET Part Number Qty. Specifications Price B09234013 2 € 4,75 » 34019 CAP,DAMPER Part Number Qty. Specifications Price B00134019 2 € 2,32 » 34034 NUT,FLANGE Part Number Qty. Specifications Price BA5A34034 4 € 2,61 » 34091 NUT Part Number Qty. Specifications Price B00134091 4 ILLUST. NO.1 € 4,96 B45534091 4 ILLUST. NO.2 € 1,92 » 34097 BOLT,LOWER ARM SPIN. Part Number Qty. Specifications Price B09234349A 4 € 3,00 » 34098 BOLT Part Number Qty. Specifications Price B00134098 2 € 3,32 » 34111 BUMPER,BOUND Part Number Qty. Specifications Price B00134111A 2 € 17,99 » 34112A BOLT Part Number Qty. Specifications Price B45534112B 4 STD. € 3,89 » 34201 BRACKET,LWR ARM Part Number Qty. Specifications Price B09234201 2 € 7,18 » 34310 ARM(R),LOWER Part Number Qty. Specifications Price B09234300D 1 2WD € 187,37 B21034300B 1 4WD € 187,37 » 34310Z ARM(L),LOWER Part Number Qty. Specifications Price B09234350D 1 2WD € 187,37 B21034350 1 4WD € 161,54 » 34313 BOLT,ARM Part Number Qty. Specifications Price G03034313A 2 A (B092-39-055) € 5,20 » 34321 PROTECTOR(R),LWR ARM Part Number Qty. Specifications Price B09234321 1 - 950417
BW**** -529350€ 1,71 » 34321Z PROTECTOR(L),LWR ARM Part Number Qty. Specifications Price B09234331 1 - 950417
BW**** -529350€ 1,98 » 34340 SHEET,SPRING-UPPER Part Number Qty. Specifications Price B00134340A 2 2WD € 11,04 B21134340 2 4WD € 15,19 » 34345 SEAT,STOPPER-DAMPER Part Number Qty. Specifications Price B21034345A 2 4WD € 6,71 » 34390 RUBBER,MOUNTING Part Number Qty. Specifications Price B00134390D 2 AN (B029-34-390D)
(2WD>GASOLINE)
- 930917
BW**** -525817€ 51,88 B02934390D 2 (2WD>GASOLINE)
930917 -
BW****525817-€ 54,49 B21034390C 2 4WD € 97,97 » 34403 WASHER Part Number Qty. Specifications Price B00134405A 2 € 2,62 » 34409 WASHER Part Number Qty. Specifications Price B00134409 2 € 1,98 » 34460 BUSH,RUBBER-LWR ARM Part Number Qty. Specifications Price B09234460B 2 € 13,43 » 34470A BUSHING,RUBBER-LOWER ARM Part Number Qty. Specifications Price B21034470 2 € 14,26 » 34501A SEAL,DUST-DASH. PANEL-LOW Part Number Qty. Specifications Price B21034501 1 4WD
- 930712
BW**** -524796» 34510 JOINT,BALL Part Number Qty. Specifications Price B09234550 2 € 57,05 » 34565 SEAL,DUST Part Number Qty. Specifications Price B09234565 2 € 7,23 » 34627 GROMMET,DASH. PANEL-LOWER Part Number Qty. Specifications Price B21034627 1 4WD » 90901 NUT Part Number Qty. Specifications Price 999211200 1 € 2,46 » 90901 NUT Part Number Qty. Specifications Price 999211400 1 € 2,54 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997561020 1 € 3,44 » 99971 WASHER,SPRING Part Number Qty. Specifications Price 999711200 1 € 0,51 » 99971 WASHER,SPRING Part Number Qty. Specifications Price 999711400 1 € 0,40
