Mazda 323WAGON BW 1989-09 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Chassis Axle Suspension,brake & Steering > Rear Differentials(4wd)

Search by part number:

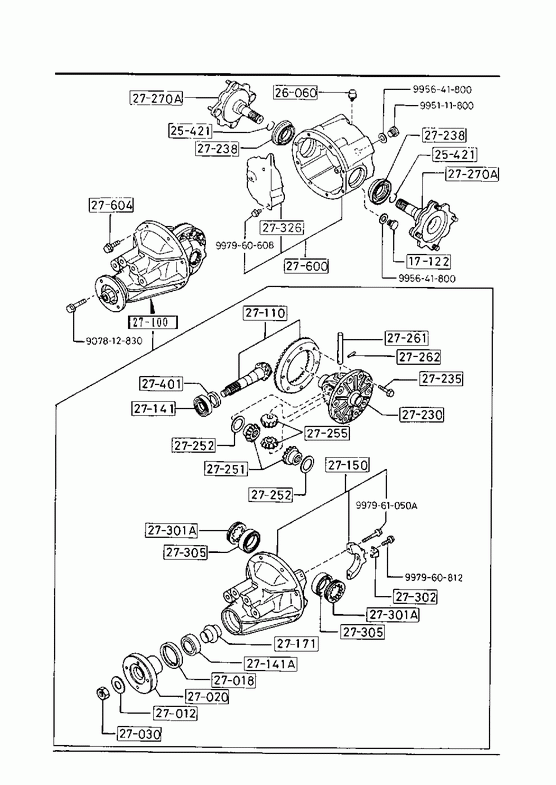

Rear Differentials(4wd)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 25421

CLIP

Part Number	Qty.	Specifications	Price
F00125421A	2	- 920801 BW -520646	€ 1,45
F00225421	2	920801 - BW520646-	€ 1,57

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
391927012	1		€ 3,34

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
T00527165A	1		€ 12,72

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
T00527120E	1	C (T005-27-120F)	€ 36,60

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
391927130	1		€ 2,06

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
T00627100B	1	AN (T006-27-100C) - 920801 BW -520646	€ 791,09
T00627100C	1	AN (T006-27-100D) 920801 - BW520646-	€ 791,09

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
T00627110	1	R=3.909 - 900301 BW -504273
T00627110A	1	R=3.909 900301 - 920801 BW504273-520646
T00627110B	1	R=3.909 920801 - BW520646-	€ 415,55

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
391927220	1	NTN MAKE	€ 34,63

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T00527150D	1

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
T02027171	1		€ 7,50

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
T00527231	1		€ 156,68

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
391927235	8	D=10.2MM
391927236	8	D=10.0MM

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
T00527238A	2		€ 12,96

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
F03527251	2		€ 36,09

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127252	2	T=2.0MM	€ 2,14
F00127253	2	T=2.1MM	€ 2,12
F00127254	2	T=2.2MM	€ 2,16

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T02027255	2	AN (T020-27-255A) - 910501 BW -512746	€ 23,32
T02027255A	2	A (T020-27-255B) 910501 - 930819 BW512746-525382	€ 23,32
T02027255B	2	930819 - BW525382-	€ 24,27

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
F00127261A	1		€ 7,47

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
T00527270B	2	- 920801 BW -520646	€ 84,23
T00527270C	2	AN (TA01-27-270) 920801 - BW520646-	€ 75,06

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
018027301A	2	AN (0180-27-301B) - 941001 BW -528786	€ 3,50
018027301B	2	941001 - BW528786-	€ 3,64

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
024927350	2		€ 45,62

» 27326

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
T00527690	1	A (T005-27-690A)	€ 4,15

» 27401

SPACER

Part Number	Qty.	Specifications	Price
025927401	1	T=3.08MM - 920801 BW -520646	€ 3,10
025927402	1	T=3.11MM - 920801 BW -520646	€ 3,37
025927403	1	T=3.14MM - 920801 BW -520646	€ 3,41
025927404	1	T=3.17MM - 920801 BW -520646	€ 3,10
025927405	1	T=3.2MM - 920801 BW -520646
025927406	1	T=3.23MM - 920801 BW -520646	€ 3,41
025927407	1	T=3.26MM - 920801 BW -520646	€ 2,49
025927408	1	T=3.29MM - 920801 BW -520646
025927409	1	T=3.32MM - 920801 BW -520646	€ 3,24
025927411	1	T=3.35MM - 920801 BW -520646	€ 2,98
025927412	1	T=3.38MM - 920801 BW -520646	€ 2,98
025927413	1	T=3.41MM - 920801 BW -520646	€ 2,98
025927414	1	T=3.44MM - 920801 BW -520646
025927415	1	T=3.47MM - 920801 BW -520646	€ 5,60
T00627401	1	T=2.08MM 920801 - BW520646-	€ 5,65
T00627402	1	T=2.11MM 920801 - BW520646-
T00627403	1	T=2.14MM 920801 - BW520646-
T00627404	1	T=2.17MM 920801 - BW520646-	€ 5,65
T00627405	1	T=2.2MM 920801 - BW520646-
T00627406	1	T=2.23MM 920801 - BW520646-
T00627407	1	T=2.26MM 920801 - BW520646-
T00627408	1	T=2.29MM 920801 - BW520646-	€ 5,65
T00627409	1	T=2.32MM 920801 - BW520646-	€ 5,65
T00627411	1	T=2.35MM 920801 - BW520646-
T00627412	1	T=2.38MM 920801 - BW520646-
T00627413	1	T=2.41MM 920801 - BW520646-
T00627414	1	T=2.44MM 920801 - BW520646-
T00627415	1	T=2.47MM 920801 - BW520646-	€ 5,65

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T00527600D	1	AN (T005-27-600E)	€ 305,22

» 27604

BOLT

Part Number	Qty.	Specifications	Price
G0A027604A	2		€ 1,22

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960608	1		€ 0,40

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812	1		€ 1,47

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Rear Differentials(4wd)
