Front Differentials 01/02 (MT) 02/02 (AT)

Front Differentials |

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Chassis Axle Suspension,brake & Steering > Front Differentials

Search by part number:

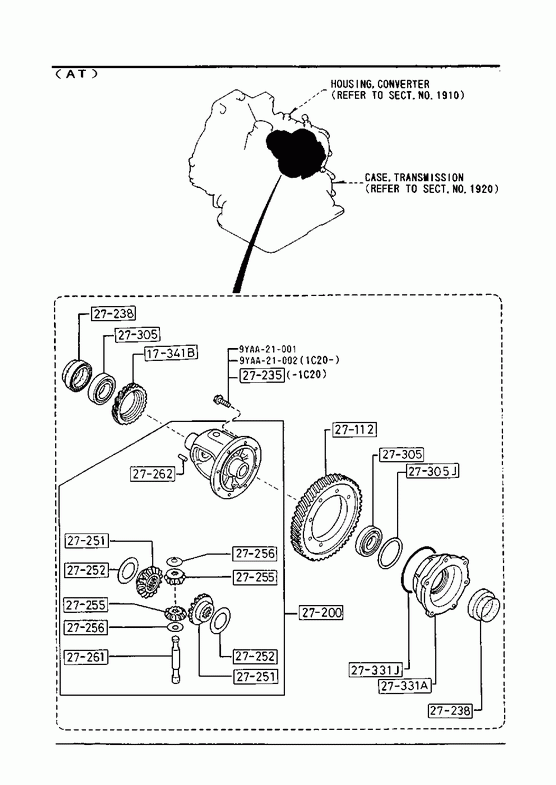

Front Differentials(2wd)

01/02 (MT)
02/02 (AT)

GEAR,SPEED DRIVE

Part Number	Qty.	Specifications	Price
F40117341A	1		€ 6,91

» 27112

GEAR,RING

Part Number	Qty.	Specifications	Price
F01527112	1	AUTOMATIC TRANSMISSION	€ 109,73

» 27200

DIFFERENTIAL

Part Number	Qty.	Specifications	Price
F00227200	1	A (F002-27-200A) AUTOMATIC TRANSMISSION - 910501 BW -512746
F00227200B	1	AN (F002-27-200C) AUTOMATIC TRANSMISSION 910501 - 910901 BW512746-514797
F00227200C	1	A (F002-27-200D) AUTOMATIC TRANSMISSION 910901 - 911220 BW514797-516577
F00227200D	1	AUTOMATIC TRANSMISSION 911220 - BW516577-

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
F00127235B	8	D=10.2MM AUTOMATIC TRANSMISSION - 911220 BW -516577	€ 2,17
F00127236B	8	D=10MM AUTOMATIC TRANSMISSION - 911220 BW -516577	€ 2,04

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
F00127238	2	A (F003-27-238A) 1700 900201 - BW503590-	€ 5,65
F00327238A	2	AN (F003-27-238B) (1500>MANUAL TRANSMISSION) 1600 941201 - BW528904-	€ 6,33
F00427238	2	1700 - 900201 BW -503590	€ 5,65

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
F03527251	2		€ 36,09

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127252	2	T=2.0MM	€ 2,14
F00127253	2	T=2.1MM	€ 2,12
F00127254	2	T=2.2MM	€ 2,16

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T02027255	2	AN (T020-27-255A) - 910501 BW -512746	€ 23,32
T02027255A	2	A (T020-27-255B) 910501 - 930719 BW512746-524841	€ 23,32
T02027255B	2	930719 - BW524841-	€ 24,27

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127256	2		€ 2,62

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
F02127261	1	A (F021-27-261A) - 910901 BW -514797	€ 10,55
F02127261A	1	A (F021-27-261B) 910901 - 940516 BW514797-528259	€ 10,55
F02127261B	1	A (F021-27-261C) 940516 - 950101 BW528259-529094	€ 10,55
F03527261	1	AN (F035-27-261A) 950101 - BW529094-	€ 11,92

» 27262

Part Number	Qty.	Specifications	Price
G00127262	1	AUTOMATIC TRANSMISSION	€ 1,41

» 27305

BEARING

Part Number	Qty.	Specifications	Price
F00127350	2		€ 24,02

» 27305J

SHIM

Part Number	Qty.	Specifications	Price
999635110	1	T=0.1MM	€ 1,68
999635112	1	T=0.12MM	€ 2,05
999635114	1	T=0.14MM	€ 2,05
999635115	1	T=0.15MM	€ 2,18
999635116	1	T=0.16MM	€ 2,05
999635120	1	T=0.2MM	€ 2,22
999635125	1	T=0.25MM	€ 2,18
999635130	1	T=0.3MM	€ 2,22
999635135	1	T=0.35MM	€ 2,22
999635140	1	T=0.4MM	€ 2,07
999635145	1	T=0.45MM	€ 2,22
999635150	1	T=0.5MM	€ 2,07
999635155	1	T=0.55MM	€ 2,22
999635160	1	T=0.6MM	€ 2,07
999635165	1	T=0.65MM	€ 2,22
999635170	1	T=0.7MM	€ 2,07
999635175	1	T=0.75MM	€ 2,22
999635180	1	T=0.8MM	€ 1,83
999635185	1	T=0.85MM	€ 2,16
999635190	1	T=0.9MM	€ 2,20

» 27331A

HOUSING,SIDE

Part Number	Qty.	Specifications	Price
F01127331	1	AN (F011-27-331A) AUTOMATIC TRANSMISSION

» 27331J

RING,'O'

Part Number	Qty.	Specifications	Price
9954209501	1	AUTOMATIC TRANSMISSION	€ 7,51

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YAA21001	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YAA21002	1

Front Differentials(2wd)
