Mazda 323WAGON BW 1989-09 Mazda Front Drive Shafts 01/02 (2WD) 02/02 (4WD)

|

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Chassis Axle Suspension,brake & Steering > Front Drive Shafts

Search by part number:

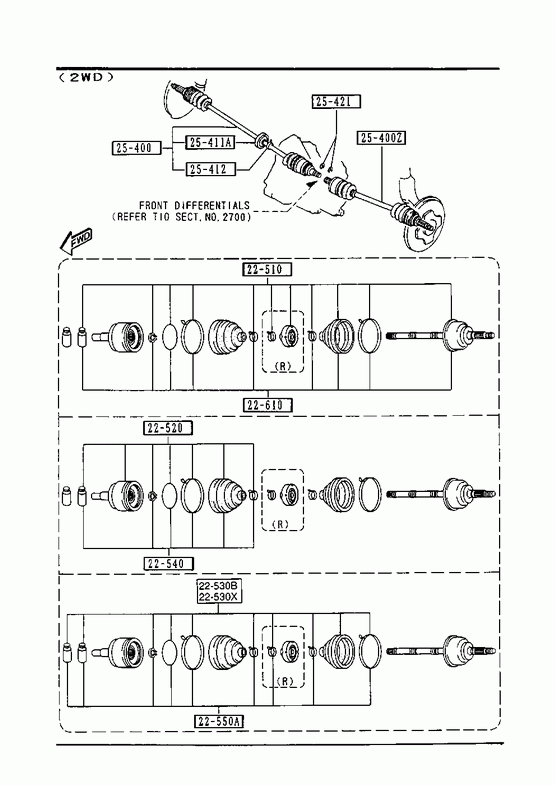

Front Drive Shafts

01/02 (2WD)
02/02 (4WD)

JOINT SET(R),OUTER

Part Number	Qty.	Specifications	Price
F00322510B	1	(1600>2WD) 1700	€ 332,64
F00522510A	1	1500	€ 326,12
F01122510	1	A (F011-22-510A) (1600>4WD)	€ 319,73

JOINT SET,INNER

Part Number	Qty.	Specifications	Price
F00322520B	2	A (F003-22-520C) (1600>2WD) 1700 - 900201 BW -503590	€ 196,35
F00322520C	2	(1600>2WD) 1700 900201 - 920701 BW503590-520119	€ 196,35
F00322520E	2	A (F003-22-520F) (1600>2WD) 1700 920701 - 940901 BW520119-528760
F00322520F	2	(1600>2WD) 1700 940901 - BW528760-	€ 200,28
F00522520A	2	A (F005-22-520B) 1500 - 900201 BW -503590	€ 194,39
F00522520B	2	1500 900201 - 920701 BW503590-520119
F00522520D	2	A (F005-22-520E) 1500 920701 - 940901 BW520119-528760
F00522520E	2	1500 940901 - BW528760-	€ 217,25

BOOT SET(R),OUT. JOINT

Part Number	Qty.	Specifications	Price
F00322530B	1	(1600>2WD) 1700	€ 56,82
F00522530A	1	1500	€ 56,82

BOOT SET(L),OUT. JOINT

Part Number	Qty.	Specifications	Price
F00322630B	1	(1600>2WD) 1700	€ 56,82
F00522630A	1	1500	€ 59,90

BOOT SET,INNER JOINT

Part Number	Qty.	Specifications	Price
F00322540B	2	(1600>2WD) 1700	€ 36,80
F00522540A	2	1500	€ 36,80
F01122540	2	(1600>4WD)	€ 36,80

CLIP SET,DRIVE SHAFT

Part Number	Qty.	Specifications	Price
F00322550B	2	(1600>2WD) 1700	€ 43,33
F00522550A	2	1500	€ 38,11
F01122550	2	(1600>4WD)

JOINT SET(L),OUTER

Part Number	Qty.	Specifications	Price
F00322610B	1	(1600>2WD) 1700	€ 319,73
F00522610A	1	1500 941001 - BW528786-	€ 329,32
F00722610A	1	1500 - 941001 BW -528786	€ 329,32
F01122610	1	A (F011-22-610A) (1600>4WD)	€ 319,73

SHAFT(R),DRIVE

Part Number	Qty.	Specifications	Price
F00325400B	1	A (F003-25-400C) (1600>2WD) 1700 - 900201 BW -503590	€ 423,61
F00325400C	1	(1600>2WD) 1700 900201 - 920701 BW503590-520119
F00325400E	1	A (F003-25-400F) (1600>2WD) 1700 920701 - 940901 BW520119-528760	€ 423,61
F00325400F	1	(1600>2WD) 1700 940901 - BW528760-	€ 440,72
F00525400A	1	A (F005-25-400B) 1500 - 900101 BW -502759	€ 423,61
F00525400B	1	1500 900101 - 920701 BW502759-520119	€ 423,61
F00525400D	1	A (F005-25-400E) 1500 920701 - 940901 BW520119-528760	€ 423,61
F00525400E	1	1500 940901 - BW528760-	€ 440,72
F01125500	1	A (F011-25-500A) (1600>4WD)	€ 423,61

SHAFT(L),DRIVE

Part Number	Qty.	Specifications	Price
F00325600B	1	A (F003-25-600C) (1600>2WD) 1700 - 900201 BW -503590	€ 423,61
F00325600C	1	(1600>2WD) 1700 900201 - 920701 BW503590-520119	€ 423,61
F00325600E	1	A (F003-25-600F) (1600>2WD) 1700 920701 - 940901 BW520119-528760	€ 423,61
F00325600F	1	(1600>2WD) 1700 940901 - BW528760-	€ 440,72
F00525600E	1	1500 941001 - BW528786-	€ 423,61
F00725600A	1	A (F007-25-600B) 1500 - 900101 BW -502759
F00725600B	1	1500 900101 - 920701 BW502759-520119	€ 423,61
F00725600D	1	A (F007-25-600E) 1500 920701 - 940901 BW520119-528760	€ 423,61
F00725600E	1	1500 940901 - 941001 BW528760-528786	€ 440,72
F01125600C	1	(1600>4WD) - 920701 BW -520119	€ 423,61
F01125600E	1	A (F011-25-600F) (1600>4WD) 920701 - BW520119-	€ 423,61

DAMPER,DYNAMIC

Part Number	Qty.	Specifications	Price
F00225411B	1	2WD	€ 17,21

BAND

Part Number	Qty.	Specifications	Price
F00125412	1	2WD	€ 4,95

CLIP

Part Number	Qty.	Specifications	Price
F00125421A	2	2WD - 940901 BW -528760	€ 1,45
F00225421	2	2WD 940901 - BW528760-	€ 1,57
G00125421	1	ILLUST. NO.2 4WD	€ 1,23
