Mazda 323WAGON BW 1989-09 Mazda Starter 01/02 (1.4KW) 02/02 (2.2KW)

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Diesel-engine Supplement > Starter(diesel)

Search by part number:

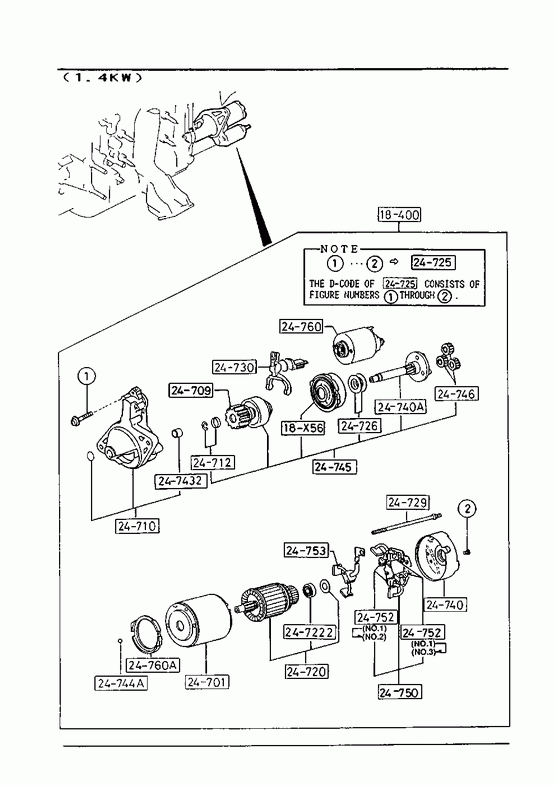

Starter(diesel)

01/02 (1.4KW)
02/02 (2.2KW)

STARTER

Part Number	Qty.	Specifications	Price
PN2318400A	1	2.2KW 2.2KW - 891121 BW -501563	€ 478,35
PN2318400B	1	NON ASBESTOS 2.2KW 891121 - 900124 BW501563-503313
PN2318400C	1	A (PN23-18-400D) 2.2KW 900124 - 930101 BW503313-522607	€ 478,35
PN2318400D	1	2.2KW 930101 - BW522607-	€ 492,79
PN4018400	1	ASBESTOS 1.4KW - 891121 BW -501563	€ 446,89
PN4018400A	1	NON ASBESTOS 1.4KW 891121 - 901103 BW501563-508665
PN4018400B	1	1.4KW 901103 - BW508665-	€ 801,07

» 18X56

GEAR,INTERNAL-STARTER

Part Number	Qty.	Specifications	Price
PN4018X56	1	1.4KW	€ 21,63

» 24701

YOKE

Part Number	Qty.	Specifications	Price
JE1618X65	1	1.4KW 940701 - BW528518-
PN1218X65A	1	2.2KW - 900124 BW -503313	€ 147,43
PN2318X65	1	2.2KW 900124 - BW503313-
PN4018X65	1	A (JE16-18-X65) 1.4KW - 940701 BW -528518	€ 143,28

» 24709

PINION

Part Number	Qty.	Specifications	Price
PN4018X25	1	1.4KW	€ 79,18

» 24710

BRACKET,FRONT

Part Number	Qty.	Specifications	Price
PN2318X00	1	2.2KW - 900124 BW -503313
PN2318X00A	1	2.2KW 900124 - BW503313-
PN4018X00	1	1.4KW	€ 79,38

» 24712

STOPPER SET

Part Number	Qty.	Specifications	Price
PN4018X30	1	1.4KW	€ 7,89

» 24720

ARMATURE

Part Number	Qty.	Specifications	Price
JE0118X60	1	NON ASBESTOS 1.4KW 891121 - 901101 BW501563-508576
JE0118X60A	1	NON ASBESTOS 1.4KW 901101 - 921201 BW508576-522142
K80518X60	1	AN (JE16-18-X60) 1.4KW 930501 - BW524221-	€ 228,87
N32718X60	1	ASBESTOS 1.4KW - 891121 BW -501563	€ 228,87
N32718X60A	1	NON ASBESTOS 1.4KW 921201 - 930501 BW522142-524221	€ 228,87
PN2318X60	1	NON ASBESTOS 2.2KW 900124 - BW503313-	€ 481,97
R20118X60	1	NON ASBESTOS 2.2KW 891121 - 900124 BW501563-503313
R20124705	1	ASBESTOS 2.2KW - 891121 BW -501563	€ 314,70

» 247222

SLEEVE,BEARING-REAR

Part Number	Qty.	Specifications	Price
859924722	1	2.2KW	€ 25,20
N32618X62	1	MITSUBISHI 1.4KW - 901101 BW -508576	€ 10,25
N32618X62A	1	MITSUBISHI 1.4KW 901101 - BW508576-	€ 10,67

» 24725

SCREW SET

Part Number	Qty.	Specifications	Price
484024728	1	2.2KW 900124 - BW503313-
E35618X95	1	MITSUBISHI 1.4KW	€ 2,95
PN1218X95	1	2.2KW - 900124 BW -503313

» 24726

WASHER SET

Part Number	Qty.	Specifications	Price
N32618X92	1	1.4KW	€ 7,98

» 24729

BOLT

Part Number	Qty.	Specifications	Price
JE0118X91	2	1.4KW	€ 5,30
PN2318X90	1	2.2KW - 900124 BW -503313
PN2318X90A	1	2.2KW 900124 - BW503313-

» 24730

LEVER

Part Number	Qty.	Specifications	Price
N32618X05	1	1.4KW	€ 9,51
PN1218X05	1	2.2KW

» 24740

BRACKET,REAR

Part Number	Qty.	Specifications	Price
859924720	1	2.2KW 900124 - BW503313-	€ 31,27
JF0118X80A	1	1.4KW 940201 - BW527192-	€ 28,73
PN2318X80	1	2.2KW - 900124 BW -503313
PN4018X80	1	1.4KW - 901103 BW -508665	€ 28,53
PN4018X80A	1	1.4KW 901103 - 940201 BW508665-527192

» 24740A

SHAFT,PINION

Part Number	Qty.	Specifications	Price
F21418X40	1	1.4KW	€ 249,49
R20124740	1	2.2KW	€ 266,90

» 247432

BEARING,FRONT

Part Number	Qty.	Specifications	Price
859924743	1	2.2KW	€ 22,17
F21018X01	1	1.4KW	€ 16,89

» 24744A

BALL,STEEL

Part Number	Qty.	Specifications	Price
N32618X93	1	MITSUBISHI 1.4KW	€ 0,94

» 24745

SHAFT,CLUTCH

Part Number	Qty.	Specifications	Price
PN4018X20	1	1.4KW	€ 289,28
R20124745	1	2.2KW	€ 293,78

» 24746

GEAR

Part Number	Qty.	Specifications	Price
859924746	1	2.2KW
N32618X57	3	MITSUBISHI 1.4KW	€ 15,37

» 24750

HOLDER,BRUSH

Part Number	Qty.	Specifications	Price
859924750	1	A (F2SS-18-X70) 2.2KW 900124 - BW503313-	€ 28,16
F21418X70	1	1.4KW 930601 - BW524516-	€ 32,31
PN4018X70	1	1.4KW - 930601 BW -524516	€ 33,75
R20124750	1	2.2KW - 900124 BW -503313	€ 30,97

» 24752

SPRING,BRUSH

Part Number	Qty.	Specifications	Price
859924752	4	2.2KW 900124 - BW503313-	€ 2,65
N31818X71	2	ILLUST. NO.2 1.4KW 930601 - BW524516-	€ 3,57
N32618X71	2	ILLUST. NO.3 1.4KW 930601 - BW524516-	€ 3,57
N32718X71	4	ILLUST. NO.1 1.4KW - 930601 BW -524516	€ 3,47
R20124752	4	2.2KW - 900124 BW -503313	€ 2,48

» 24753

BRUSH,YOKE

Part Number	Qty.	Specifications	Price
F21418X66	1	1.4KW 930301 - BW523457-	€ 6,25
PN4018X66	1	1.4KW - 930301 BW -523457	€ 8,75
R20118X66	2	2.2KW - 900124 BW -503313	€ 7,84
S51518X66	2	A (F2SS-18-X66) 2.2KW 900124 - BW503313-

» 24760

SWITCH

Part Number	Qty.	Specifications	Price
PN1218X10A	1	2.2KW
PN4018X10	1	1.4KW - 940201 BW -527192	€ 73,44
PN4618X10	1	AN (PN46-18-X10A) 1.4KW 940201 - BW527192-

» 24760A

GASKET

Part Number	Qty.	Specifications	Price
N32618X87	1	1.4KW	€ 3,46

Starter(diesel)
