Mazda 323WAGON BW 1989-09 Mazda Engine Switches & Relays

Mazda parts catalog

Parts > Mazda 323WAGON > 1989-09 > Gasoline-engine 4-cylinder Supplement > Engine Switches & Relays(gasoline)(1500cc)

Search by part number:

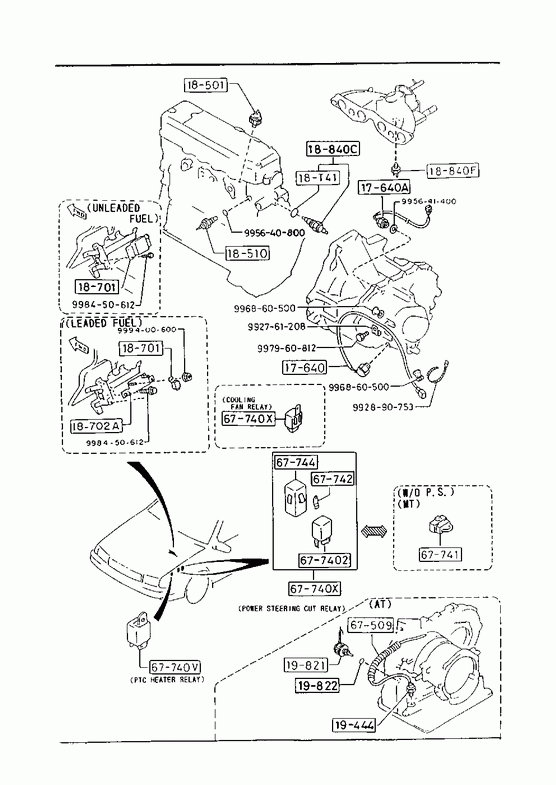

Engine Switches & Relays(gasoline)(1500cc)

SWITCH,BACK UP LAMP

Part Number	Qty.	Specifications	Price
F40317640D	1	AN (F403-17-640E) MANUAL TRANSMISSION - 901201 BW -509613	€ 28,31
F40317640E	1	MANUAL TRANSMISSION 901201 - BW509613-	€ 29,46

» 17640A

SWITCH,PARK & NEUTRAL

Part Number	Qty.	Specifications	Price
F52017640B	1	MANUAL TRANSMISSION	€ 30,05

» 18501

SWITCH,OIL PRESSURE

Part Number	Qty.	Specifications	Price
B36718501	1		€ 17,73

» 18510

UNIT,HEAT GAUGE

Part Number	Qty.	Specifications	Price
G60718510	1	A (G607-18-51X)	€ 28,64

» 18701

CONTROL UNIT

Part Number	Qty.	Specifications	Price
B50818701	1	LEADED FUEL
B53518701A	1	UNLEADED FUEL	€ 191,31

» 18702A

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
B63018835	1	LEADED FUEL

» 18840C

SENSOR,TEMP.-ENG.COOLANT

Part Number	Qty.	Specifications	Price
B30318840	1	90?C-97?C COLD SPEC. 900801 - BW506982-	€ 45,80
BJ0118840	1	84?C-91?C EXC.COLD SPEC. 900801 - BW506982-	€ 48,61
F8B518840	1	84?C-91?C EXC.COLD SPEC. - 900801 BW -506982	€ 46,25
F8B818840A	1	90?C-97?C COLD SPEC. - 900801 BW -506982	€ 43,58

» 18840F

SENSOR,WATER TEMP.-P.T.C.

Part Number	Qty.	Specifications	Price
F62118840	1		€ 48,61

» 18T41

RING,'O'-WATER THERMO SW.

Part Number	Qty.	Specifications	Price
F8B518T41	1	COLD SPEC.	€ 4,32

» 19444

SWITCH,INHIBITOR

Part Number	Qty.	Specifications	Price
FT2319444A	1	A (FT21-19-444A) AUTOMATIC TRANSMISSION	€ 31,12

» 19821

SOLENOID,DOWN SHIFT

Part Number	Qty.	Specifications	Price
FT2119821A	1	AUTOMATIC TRANSMISSION	€ 39,51

» 19822

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
033819822	1	AUTOMATIC TRANSMISSION	€ 2,35

» 67509

TUBE,CORRUGATE

Part Number	Qty.	Specifications	Price
FT2119974A	1	AUTOMATIC TRANSMISSION

» 677402

RELAY,N.C.

Part Number	Qty.	Specifications	Price
FB2567740	1	10A POWER STEERING CUT RELAY W/P.S.	€ 23,59

» 67740V

RELAY

Part Number	Qty.	Specifications	Price
B25467740A	1	PTC HEATER RELAY	€ 30,03

» 67740X

RELAY & COVER,NORMAL CLOSE

Part Number	Qty.	Specifications	Price
B31167740	1	COOLING FAN RELAY	€ 30,03
FB1067740	1	10A POWER STEERING CUT RELAY W/P.S.	€ 26,18

» 67741

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
WB2267741	1	W/O POWER STEERING MANUAL TRANSMISSION	€ 4,40

» 67742

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
FB1067742	1	W/P.S.	€ 9,60

» 67744

BOOT,RELAY-WATER PROOF

Part Number	Qty.	Specifications	Price
FB1067744	1	W/P.S.	€ 4,21

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996860500	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992761208	1		€ 2,47

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992890753	1		€ 3,26

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995640800	1		€ 0,62

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641400	1		€ 1,19

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812	1		€ 1,47

Engine Switches & Relays(gasoline)(1500cc)
