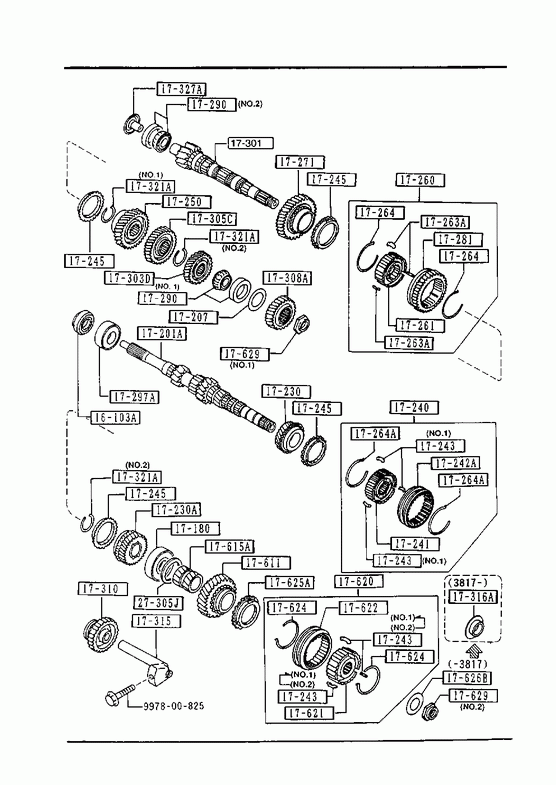

Transmission Gears(manual Transmisston 5-speed)(2wd)
-
» 16103A SEAL,OIL Part Number Qty. Specifications Price 061316103 1 € 7,63 » 17180 BEARING Part Number Qty. Specifications Price F52017181 1 KOYO OR NSK € 46,60 » 17201A GEAR,PRIMARY SHAFT Part Number Qty. Specifications Price F52117201B 1 - 930817
BW**** -525337€ 219,01 F52117201C 1 930817 - 931101
BW****525337-526183€ 210,51 F52117201D 1 A (F521-17-201E)
931101 -
BW****526183-€ 210,51 » 17207 SHIM,ADJUST Part Number Qty. Specifications Price 999634315 1 T=0.15MM € 3,65 999634320 1 T=0.2MM € 2,03 999634325 1 T=0.25MM € 2,02 999634330 1 T=0.3MM € 2,56 999634335 1 T=0.35MM € 2,02 999634340 1 T=0.4MM € 2,15 999634345 1 T=0.45MM € 2,15 999634350 1 T=0.5MM € 2,15 999634355 1 T=0.55MM
920701 -
BW****520119-€ 2,17 999634360 1 T=0.6MM
920701 -
BW****520119-€ 2,17 999634365 1 T=0.65MM
920701 -
BW****520119-€ 2,17 999634370 1 T=0.7MM
920701 -
BW****520119-€ 2,17 » 17230 GEAR,3RD Part Number Qty. Specifications Price F52017231 1 A (F520-17-231A)
- 950701
BW**** -529542€ 69,34 F52017231A 1 AN (F520-17-231B)
950701 -
BW****529542-€ 69,34 » 17230A GEAR,4TH Part Number Qty. Specifications Price F52217211A 1 AN (F522-17-211B)
- 911201
BW**** -516332€ 77,43 F52217211B 1 911201 - 930817
BW****516332-525337€ 77,43 F52217211C 1 A (F522-17-211D)
930817 -
BW****525337-€ 77,43 » 17240 HUB SET,CLUTCH-3RD & 4TH Part Number Qty. Specifications Price F52017240 1 A (F520-17-240A) € 79,39 » 17241 HUB,CLUTCH Part Number Qty. Specifications Price F40117241 1 A (F401-17-241A) € 26,10 » 17242A SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price F52017242 1 € 42,14 » 17243 KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117243A 6 AN (F401-17-243C)
ILLUST. NO.1
930817 -
BW****525337-€ 3,12 F50117243 3 ILLUST. NO.2
- 930817
BW**** -525337€ 3,18 » 17245 RING,SYNCHRONIZER Part Number Qty. Specifications Price F52017245 4 A (F520-17-245A)
- 910218
BW**** -511517€ 22,36 F52017245A 4 910218 -
BW****511517-€ 22,36 » 17250 GEAR,2ND Part Number Qty. Specifications Price F52117251A 1 A (F521-17-251B)
- 950801
BW**** -529615€ 82,94 F52117251B 1 950801 -
BW****529615-€ 86,29 » 17260 HUB SET,CLUTCH-1ST & 2ND Part Number Qty. Specifications Price F52117260A 1 A (F521-17-260B)
- 910301
BW**** -511750€ 108,55 F52117260B 1 AN (F521-17-260C)
910301 - 940201
BW****511750-527192€ 108,55 F52117260C 1 A (F521-17-260D)
940201 - 940323
BW****527192-528048€ 108,55 F52117260D 1 AN (F521-17-260E)
940323 - 940720
BW****528048-528596€ 108,55 F52117260E 1 A (F521-17-260F)
940720 - 950601
BW****528596-529458€ 108,55 F52117260F 1 C (F521-17-260G)
950601 -
BW****529458-€ 108,55 » 17261 HUB,CLUTCH Part Number Qty. Specifications Price F52117261 1 € 28,93 » 17263A KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117263A 3 € 2,92 » 17264 SPRING,SYNCHRO. KEY Part Number Qty. Specifications Price F40217264 2 € 2,62 » 17264A SPRING,SYNCHRONIZER Part Number Qty. Specifications Price F40117264A 2 A (F402-17-264) € 2,70 » 17271 GEAR,1ST Part Number Qty. Specifications Price F52117271B 1 € 84,26 » 17281 GEAR,REVERSE Part Number Qty. Specifications Price F52017281A 1 A (F520-17-281B)
- 910301
BW**** -511750F52017281B 1 AN (F520-17-281C)
910301 - 940201
BW****511750-527192€ 67,10 F52017281C 1 A (F520-17-281D)
940201 - 940323
BW****527192-528048€ 67,10 F52017281D 1 AN (F520-17-281E)
940323 - 940720
BW****528048-528596€ 67,10 F52017281E 1 A (F520-17-281F)
940720 - 950601
BW****528596-529458€ 67,10 F52017281F 1 950601 -
BW****529458-€ 69,81 » 17290 BEARING,TAPER Part Number Qty. Specifications Price F40117290 1 KOYO MAKE
ILLUST. NO.1
- 950201
BW**** -529140€ 36,01 F52017290 1 KOYO
ILLUST. NO.2€ 39,20 F5D217290 1 NTN
ILLUST. NO.1
950201 -
BW****529140-€ 39,20 » 17297A BEARING,BALL-COUNTER SHAFT G. Part Number Qty. Specifications Price F52017171A 1 - 931101
BW**** -526183€ 27,44 F52017171B 1 A (F520-17-171C)
931101 - 941101
BW****526183-528834€ 26,37 M50217297A 1 KOYO
941101 -
BW****528834-€ 29,35 » 17301 GEAR,COUNTER SHAFT Part Number Qty. Specifications Price F52017301 1 1600
- 940101
BW**** -526796€ 176,22 F52117301 1 1500
1700
- 940101
BW**** -526796€ 169,37 F5D217301 1 1500
1700
940101 -
BW****526796-€ 176,22 F5D317301 1 1600
940101 -
BW****526796-€ 176,22 » 17303D GEAR,SECD.4TH Part Number Qty. Specifications Price F52217303 1 - 930817
BW**** -525337€ 98,51 F52217303A 1 930817 -
BW****525337-€ 102,49 » 17305C GEAR,SECD.3RD Part Number Qty. Specifications Price F52017305 1 € 106,61 » 17308A GEAR,SECD.5TH Part Number Qty. Specifications Price F52117308 1 AN (F521-17-308A)
1500
- 920925
BW**** -521324€ 86,31 F52117308A 1 1500
920925 - 930817
BW****521324-525337€ 86,31 F52217308 1 1600
1700
- 930817
BW**** -525337€ 89,80 F5D217308 1 A (F5D2-17-308A)
1500
930817 - 950101
BW****525337-529094€ 86,31 F5D217308A 1 1500
950101 -
BW****529094-€ 89,80 F5D417308 1 A (F5D4-17-308A)
1600
1700
930817 - 950101
BW****525337-529094€ 86,31 F5D417308A 1 1600
1700
950101 -
BW****529094-€ 89,80 » 17310 GEAR,REVERSE IDLE Part Number Qty. Specifications Price F52017310B 1 A (F520-17-310C)
- 910201
BW**** -511225€ 58,05 F52017310C 1 A (F520-17-310D)
910201 - 950501
BW****511225-529384€ 58,05 F52017310D 1 950501 -
BW****529384-€ 60,39 » 17315 SHAFT,REV. IDLE GEAR Part Number Qty. Specifications Price F52017315 1 A (F520-17-315A)
- 940501
BW**** -528209F52017315A 1 A (F520-17-315B)
940501 - 940618
BW****528209-528461€ 18,35 F52017315B 1 940618 -
BW****528461-€ 19,09 » 17316A SPACER Part Number Qty. Specifications Price F5D217316A 1 A (F5D2-17-316B)
930817 - 931012
BW****525337-526068€ 11,93 F5D217316B 1 931012 -
BW****526068-€ 12,41 » 17321A RING,RETAINING Part Number Qty. Specifications Price F40117321 1 A (G401-17-322)
ILLUST. NO.1€ 4,37 G40117321 2 ILLUST. NO.2 € 4,32 » 17327A FUNNEL Part Number Qty. Specifications Price F40117327 1 AN (F5E0-17-327) € 3,46 » 17611 GEAR,OVER TOP Part Number Qty. Specifications Price F52117611 1 AN (F521-17-611A)
1500
- 920925
BW**** -521324€ 95,77 F52117611A 1 1500
920925 - 930817
BW****521324-525337€ 99,64 F52217611 1 1600
1700
- 930817
BW**** -525337€ 99,64 F5D217611 1 A (F5D2-17-611A)
1500
930817 - 940301
BW****525337-527768€ 95,77 F5D217611A 1 1500
940301 -
BW****527768-€ 99,64 F5D417611 1 A (F5D4-17-611A)
1600
1700
930817 - 931217
BW****525337-526682€ 95,77 F5D417611A 1 1600
1700
931217 -
BW****526682-€ 99,64 » 17615A SLEEVE,GEAR Part Number Qty. Specifications Price F50117615A 1 - 930817
BW**** -525337€ 32,57 F5D217615 1 930817 -
BW****525337-€ 32,57 » 17620 HUB,CLUTCH-5TH & REV. Part Number Qty. Specifications Price F50117620C 1 AN (F501-17-620D)
- 930817
BW**** -525337€ 66,44 F5D217620 1 A (F5D2-17-620A)
930817 - 930901
BW****525337-525589F5D217620A 1 C (F5D3-17-620)
930901 - 931012
BW****525589-526068F5D317620 1 A (F5D3-17-620A)
931012 - 931222
BW****526068-526722F5D317620A 1 AN (F5D3-17-620B)
931222 - 940301
BW****526722-527768€ 67,10 F5D317620B 1 A (F5D3-17-620C)
940301 - 940323
BW****527768-528048€ 67,10 F5D317620C 1 A (F5D3-17-620D)
940323 -
BW****528048-€ 67,10 » 17621 HUB,CLUTCH Part Number Qty. Specifications Price F50117621 1 - 930817
BW**** -525337€ 18,40 F5D217621 1 A (F5D2-17-621A)
930817 - 931222
BW****525337-526722€ 18,40 F5D217621A 1 A (F5D2-17-621B)
931222 - 940323
BW****526722-528048€ 18,40 F5D217621B 1 A (F5D2-17-621C)
940323 -
BW****528048-€ 18,40 » 17622 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price F50117622A 1 AN (F501-17-622D)
- 940301
BW**** -527768€ 36,57 F50117622D 1 AN (F501-17-622E)
940301 -
BW****527768-€ 36,57 » 17624 SPRING,SYNC.KEY Part Number Qty. Specifications Price F50117624A 2 € 2,56 » 17625A RING,SYNCHRONIZER Part Number Qty. Specifications Price F50117625 1 € 19,25 » 17626B PLATE,STOPPER Part Number Qty. Specifications Price F50117626 1 A (F501-17-626A)
- 930801
BW**** -525245€ 2,01 F50117626A 1 930801 - 930817
BW****525245-525337€ 2,09 » 17629 NUT,LOCK-CLUTCH HUB Part Number Qty. Specifications Price F52017628 1 ILLUST. NO.2
- 930401
BW**** -524043€ 13,29 F52117628 1 ILLUST. NO.1
- 910901
BW**** -514797€ 9,83 F52117628A 1 ILLUST. NO.1
910901 -
BW****514797-€ 10,23 F52Y17628 1 ILLUST. NO.2
930401 - 930817
BW****524043-525337€ 17,39 F5DY17629 1 A (F5DY-17-629A)
ILLUST. NO.2
930817 - 940323
BW****525337-528048€ 9,26 F5DY17629A 1 ILLUST. NO.2
940323 -
BW****528048-€ 9,73 » 27305J SHIM Part Number Qty. Specifications Price G00127401A 1 T=0.1MM € 2,11 G00127402A 1 T=0.2MM € 2,56 G00127403A 1 T=0.3MM € 2,61 G00127404A 1 T=0.4MM € 2,85 G00127406A 1 T=0.6MM € 2,61 G00127418 1 T=0.5MM € 4,88 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997800825 1 € 1,55
