Parts > Mazda 323WAGON > 1987-06 > Body Electronics > Wiring Harnesses(engine & T/mission)

Search by part number:

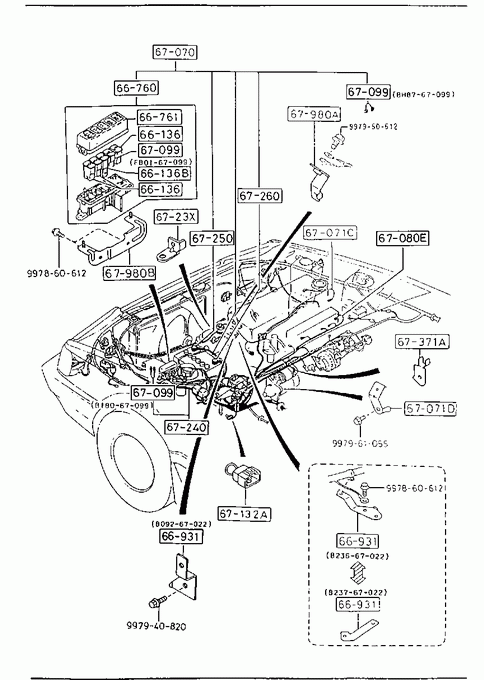

Wiring Harnesses(engine & T/mission)

FUSE (30A)

Part Number	Qty.	Specifications	Price
H11567099	3	1600	€ 5,84

» 66136B

FUSE (80A)

Part Number	Qty.	Specifications	Price
H11767099	1	80A	€ 7,26

» 66760

BLOCK,MAIN FUSE

Part Number	Qty.	Specifications	Price
BL5366760	1	FRT HARNESS-ECE EXC.W.GER 1500 1700
BL6566760	1	FRT HARNESS-ECE FOR W.GER 1500 1700	€ 29,28
BL8166760	1	FRT HARNESS-FOR W.GER 1600	€ 40,17
BM8966760	1	FRT HARNESS-EXC.W.GER 1600

» 66761

COVER,MAIN FUSE BLOCK

Part Number	Qty.	Specifications	Price
BG6266761	1	FURUKAWA FRT HARNESS-ECE EXC.W.GER 1500 1700	€ 7,21
BG6266762	1	YAZAKI FRT HARNESS-ECE EXC.W.GER 1500 1700	€ 7,21
BG6566761	1	FURUKAWA FRT HARNESS-ECE FOR W.GER 1500 1700	€ 7,50
BG6566762	1	YAZAKI FRT HARNESS-ECE FOR W.GER 1500 1700	€ 7,21
BH0166761	1	FURUKAWA FRT HARNESS-FOR W.GER 1600	€ 7,14
BH0166762	1	YAZAKI FRT HARNESS-FOR W.GER 1600	€ 7,14
BM8966761	1	FURUKAWA FRT HARNESS-EXC.W.GER 1600 FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD
BM8966762	1	YAZAKI FRT HARNESS-EXC.W.GER 1600 FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD

» 66931

BRACKET,EARTH

Part Number	Qty.	Specifications	Price
B09267022	1	(1700>MANUAL TRANSMISSION)
B23667022	1	(1500>MANUAL TRANSMISSION) (1600>MANUAL TRANSMISSION) (1700>MANUAL TRANSMISSION)
B23767022	1	(1500>AUTOMATIC TRANSMISSION)

» 67070

HARNESS,ENGINE

Part Number	Qty.	Specifications	Price
BL5367070E	1	AN (BL53-67-070F) (FRT HARNESS-ECE EXC.W.GER>50D20L 50AH BATTERY) (FRT HARNESS-ECE EXC.W.GER>55D23L 60AH BATTERY) 1500 - 880601
BL5367070F	1	(FRT HARNESS-ECE EXC.W.GER>50D20L 50AH BATTERY) (FRT HARNESS-ECE EXC.W.GER>55D23L 60AH BATTERY) 1500 880601 - BW409634-
BL6267070E	1	AN (BL62-67-070F) (FRT HARNESS-ECE EXC.W.GER>50D20L 50AH BATTERY) 1700 - 880601 BW -409634
BL6267070F	1	(FRT HARNESS-ECE EXC.W.GER>50D20L 50AH BATTERY) 1700 880601 - BW409634-
BL6567070E	1	AN (BL65-67-070F) (FRT HARNESS-ECE FOR W.GER>50D20L X2 50AH BATTERY) 1700 - 880601 BW -409634
BL6567070F	1	(FRT HARNESS-ECE FOR W.GER>50D20L X2 50AH BATTERY) 1700 880601 - BW409634-
BL8267070E	1	AN (BL82-67-070F) (FRT HARNESS-ECE EXC.W.GER>50D20L X2 50AH BATTERY) 1700 - 880601 BW -409634
BL8267070F	1	(FRT HARNESS-ECE EXC.W.GER>50D20L X2 50AH BATTERY) 1700 880601 - BW409634-
BL9167070D	1	AN (BL91-67-070E) (FRT HARNESS-ECE FOR W.GER>50D20L 50AH BATTERY) (FRT HARNESS-ECE FOR W.GER>55D23L 60AH BATTERY) 1700 - 880601
BL9167070E	1	(FRT HARNESS-ECE FOR W.GER>50D20L 50AH BATTERY) (FRT HARNESS-ECE FOR W.GER>55D23L 60AH BATTERY) 1700 880601 - BW409634-
BM1167070E	1	AN (BM11-67-070F) (FRT HARNESS-ECE FOR W.GER>50D20L 50AH BATTERY) 1700 - 880601 BW -409634
BM1167070F	1	(FRT HARNESS-ECE FOR W.GER>50D20L 50AH BATTERY) 1700 880601 - BW409634-
BM8967070C	1	AN (BM89-67-070D) FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD 1600 - 880601 BW -409634
BM8967070D	1	FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD 1600 880601 - BW409634-
BN9367070B	1	AN (BN93-67-070C) FRT HARNESS-FOR W.GER 1600 - 880601 BW -409634
BN9367070C	1	FRT HARNESS-FOR W.GER 1600 880601 - BW409634-

» 67071C

WIRE,HARNESS

Part Number	Qty.	Specifications	Price
B09267024	1	A (B092-67-024A) 1500 1600 - 890201 BW -413965
B09267024A	1	1500 1600 890201 - BW413965-	€ 4,45

» 67071D

BRACKET

Part Number	Qty.	Specifications	Price
BJ9167074A	1	1500 1600

» 67080E

WIRING,INJECTOR

Part Number	Qty.	Specifications	Price
B30867080C	1	1600 - 891101	€ 168,45
BM8967080	1	1600 891101 -

» 67099

LINK,FUSIBLE

Part Number	Qty.	Specifications	Price
B18067099	1	10 OHM 1700	€ 5,84
BH8767099	1	1700	€ 5,31
FB0167099	1	60A	€ 5,76

» 67132A

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
HB2367741	2	(1500>UNLEADED FUEL>AUTOMATIC TRANSMISSION)

» 6723X

BRACKET,EARTH-EMISSION

Part Number	Qty.	Specifications	Price
BJ916723X	1	1500 1700

» 67240

HARNESS,EMISSION

Part Number	Qty.	Specifications	Price
BH8767020F	1	1700
BL6367020C	1	(1500>LEADED FUEL)
BM8967020F	1	1600 - 880901 BW -410898	€ 510,06
BM8967020H	1	A (BM89-67-020J) 1600 880901 - 880908 BW410898-410989
BM8967020J	1	1600 880908 - 891101 BW410989-	€ 510,06
BM8967020K	1	1600 891101 -
BR1567020A	1	A (BR15-67-020B) (1500>UNLEADED FUEL) - 870730 BW -400515
BR1567020B	1	(1500>UNLEADED FUEL) 870730 - BW400515-

» 67250

CABLE,POSIT.-BATTERY

Part Number	Qty.	Specifications	Price
BM8967250	1	FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD 1600 880601 - BW409634-

» 67260

CABLE,EARTH-BATTERY

Part Number	Qty.	Specifications	Price
BM8967260	1	FRT HARNESS-EXC.SWD & W.GER FRT HARNESS-FOR SWD 1600 880601 - BW409634-

» 67371A

TERMINAL

Part Number	Qty.	Specifications	Price
B09267071	1	1500 1600 - 880601 BW -409634
B30067TS1	1	50D20L 50AH BATTERY 55D23L 60AH BATTERY 1500 1600 880601 - BW409634-	€ 4,27

» 67980A

BRACKET

Part Number	Qty.	Specifications	Price
BF6767980	1	1500 1600	€ 4,50

» 67980B

BRACKET,MAIN FUSE CASE

Part Number	Qty.	Specifications	Price
B09267980	1		€ 8,07

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961055	1		€ 3,14

Wiring Harnesses(engine & T/mission)
