- Parts > Mazda 323WAGON > 1987-06 > Body Electronics > Switches & Relays(engine)(diesel)
- Search by part number:
-

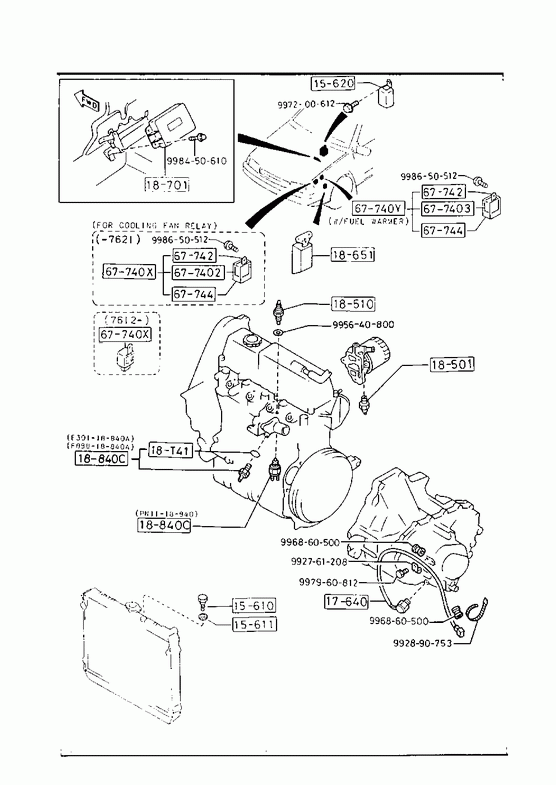

Switches & Relays(engine)(diesel)
-
» 15610 SENSOR,WATER LEVEL Part Number Qty. Specifications Price 855315610B 1 € 8,99 » 15611 GASKET Part Number Qty. Specifications Price 855315611 1 € 1,74 » 15620 UNIT,W. LEVEL SENSOR Part Number Qty. Specifications Price PN1615620 1 € 41,39 » 17640 SWITCH,BACK UP LAMP Part Number Qty. Specifications Price F40317640A 1 AN (F403-17-640B)
- 880301
BW**** -407721€ 28,31 F40317640B 1 A (F403-17-640C)
880301 - 890501
BW****407721-415956€ 28,31 F40317640C 1 A (F403-17-640D)
890501 - 890921
BW****415956-418004€ 28,31 F40317640D 1 AN (F403-17-640E)
890921 -
BW****418004-€ 28,31 » 18501 SWITCH,OIL PRESSURE Part Number Qty. Specifications Price E5D318501 1 € 16,09 » 18510 UNIT,HEAT GAUGE Part Number Qty. Specifications Price 856918510A 1 - 890101
BW**** -413158€ 31,17 G60718510 1 A (G607-18-51X)
890101 -
BW****413158-€ 28,64 » 18651 RELAY,GLOW PLUG Part Number Qty. Specifications Price PN1118650 1 € 71,78 » 18701 CONTROL UNIT Part Number Qty. Specifications Price PN1118701 1 A (PN11-18-701A) € 192,19 » 18840C SENSOR,TEMP.-ENG.COOLANT Part Number Qty. Specifications Price E30118840A 1 90?C-97?C
- 880501
BW**** -408978€ 43,58 F8B818840A 1 90?C-97?C
880501 -
BW****408978-€ 43,58 PN1118840 1 NIHON THERMOSTAT € 48,61 » 18T41 RING,'O'-WATER THERMO SW. Part Number Qty. Specifications Price E30118T41 1 - 880501
BW**** -408978€ 4,32 F8B518T41 1 880501 -
BW****408978-€ 4,32 » 677402 RELAY,N.C. Part Number Qty. Specifications Price FB2567740 1 10A
FOR COOLING FAN RELAY
- 870612
BW**** -400013€ 23,59 » 677403 RELAY,N.O. Part Number Qty. Specifications Price B09267740 1 30A ONE-TOUCH SIDE
W/FUEL WARMER€ 18,79 » 67740X RELAY & COVER,NORMAL CLOSE Part Number Qty. Specifications Price B31167740 1 FOR COOLING FAN RELAY
870612 -
BW****400013-€ 30,03 FB1067740 1 10A
FOR COOLING FAN RELAY
- 870612
BW**** -400013€ 26,18 » 67740Y RELAY & COVER,NORMAL OPEN Part Number Qty. Specifications Price FB1167740 1 30A
W/FUEL WARMER€ 26,21 » 67742 BRACKET,RELAY Part Number Qty. Specifications Price FB1067742 1 W/FUEL WARMER € 9,60 » 67744 BOOT,RELAY-WATER PROOF Part Number Qty. Specifications Price FB1067744 1 W/FUEL WARMER € 4,21 » 90688 PROTECTOR Part Number Qty. Specifications Price 996860500 1 » 90720 SCREW Part Number Qty. Specifications Price 998450610 1 » 90780 BOLT Part Number Qty. Specifications Price 997200612 1 € 1,53 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998650512 1 € 0,66 » 99274 CLIP Part Number Qty. Specifications Price 992761208 1 € 2,47 » 99274 CLIP Part Number Qty. Specifications Price 992890753 1 € 3,26 » 99560 GASKET Part Number Qty. Specifications Price 995640800 1 € 0,62 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960812 1 € 1,47
