Mazda 323WAGON BW 1987-06 Mazda Front Suspension Mechanisms

Mazda parts catalog

Parts > Mazda 323WAGON > 1987-06 > Chassis Axle Suspension & Brake & Steering > Front Suspension Mechanisms

Search by part number:

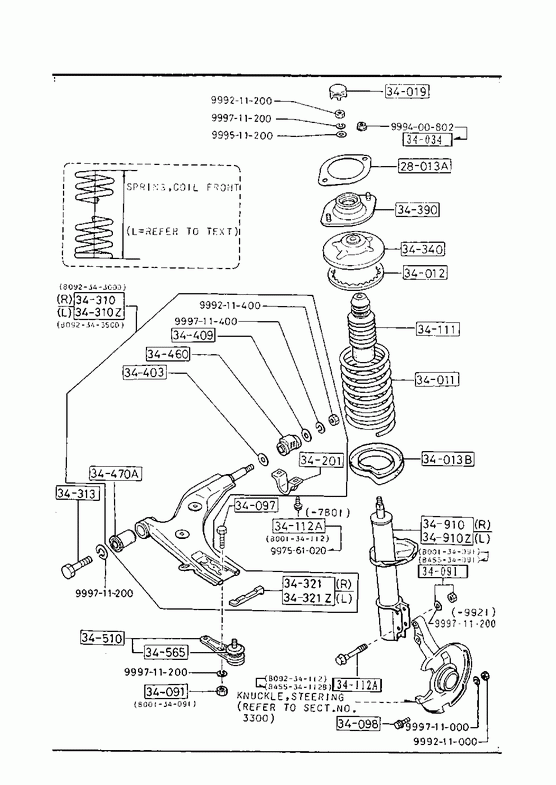

Front Suspension Mechanisms

SHEET,RUBBER

Part Number	Qty.	Specifications	Price
G03028013A	2		€ 1,90

» 34011

SPRING,COIL-FRONT

Part Number	Qty.	Specifications	Price
B09234011A	2	L=365.5MM (1500>MANUAL TRANSMISSION) (1700>MANUAL TRANSMISSION)	€ 142,97
B09834011A	2	L=380.5MM (1500>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION)	€ 149,25

» 34012

SHEET,RUBBER

Part Number	Qty.	Specifications	Price
B00134012	2	A (B455-34-012)	€ 6,76

» 34013B

SHEET

Part Number	Qty.	Specifications	Price
B09234013	2		€ 4,75

» 34019

CAP,DAMPER

Part Number	Qty.	Specifications	Price
B00134019	2		€ 2,32

» 34034

NUT,FLANGE

Part Number	Qty.	Specifications	Price
BA5A34034	4	(1500>AUTOMATIC TRANSMISSION) 890921 - BW418004-	€ 2,61

» 34091

NUT

Part Number	Qty.	Specifications	Price
B00134091	8	- 890921 BW -418004	€ 4,96
B45534091	4	890921 - BW418004-	€ 1,92

» 34097

BOLT,LOWER ARM SPIN.

Part Number	Qty.	Specifications	Price
B09234349A	4		€ 3,00

» 34098

BOLT

Part Number	Qty.	Specifications	Price
B00134098	2		€ 3,32

» 34111

BUMPER,BOUND

Part Number	Qty.	Specifications	Price
B00134111A	2		€ 17,99

» 34112A

BOLT

Part Number	Qty.	Specifications	Price
B00134112	4	AN (99756-1020) - 871101 BW -404557	€ 3,05
B09234112	4	- 890921 BW -418004	€ 4,01
B45534112B	4	STD. 890921 - BW418004-	€ 3,89

» 34201

BRACKET,LWR ARM

Part Number	Qty.	Specifications	Price
B09234201	2		€ 7,18

» 34310

ARM(R),LOWER

Part Number	Qty.	Specifications	Price
B09234300D	1		€ 187,37

» 34310Z

ARM(L),LOWER

Part Number	Qty.	Specifications	Price
B09234350D	1		€ 187,37

» 34313

BOLT,ARM

Part Number	Qty.	Specifications	Price
G03034313A	2	A (B092-39-055)	€ 5,20

» 34321

PROTECTOR(R),LWR ARM

Part Number	Qty.	Specifications	Price
B09234321	1		€ 1,71

» 34321Z

PROTECTOR(L),LWR ARM

Part Number	Qty.	Specifications	Price
B09234331	1		€ 1,98

» 34340

SHEET,SPRING-UPPER

Part Number	Qty.	Specifications	Price
B00134340A	2		€ 11,04

» 34390

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
B00134390C	2	AN (B001-34-390D) 1500 1600 - 880201 BW -406994	€ 51,88
B00134390D	2	AN (B029-34-390D) 1500 1600 880201 - BW406994-	€ 51,88
B02934390C	2	AN (B029-34-390D) 1700 - 880201 BW -406994	€ 52,37
B02934390D	2	1700 880201 - BW406994-	€ 54,49

» 34403

WASHER

Part Number	Qty.	Specifications	Price
B00134405	2	A (B001-34-405A) - 890201 BW -413965	€ 2,47
B00134405A	2	890201 - BW413965-	€ 2,62

» 34409

WASHER

Part Number	Qty.	Specifications	Price
B00134409	2		€ 1,98

» 34460

BUSH,RUBBER-LWR ARM

Part Number	Qty.	Specifications	Price
B09234460B	2		€ 13,43

» 34470A

BUSHING,RUBBER-LOWER ARM

Part Number	Qty.	Specifications	Price
B21034470	2		€ 14,26

» 34510

JOINT,BALL

Part Number	Qty.	Specifications	Price
B09234550	2		€ 57,05

» 34565

SEAL,DUST

Part Number	Qty.	Specifications	Price
B09234565	2		€ 7,23

» 34910

DAMPER(R),FRONT

Part Number	Qty.	Specifications	Price
B09234700	1	AN (B092-34-700A) 1500 1600 - 880501 BW -408978	€ 59,84
B09234700A	1	A (B092-34-700B) 1500 1600 880501 - 891001 BW408978-
B09234700B	1	AN (B097-34-700B) 1500 1600 891001 -	€ 59,84
B22234700	1	AN (B222-34-700A) 1700 - 880501 BW -408978
B22234700A	1	A (B222-34-700B) 1700 880501 - 891006 BW408978-
B22234700B	1	1700 891006 -	€ 61,65

» 34910Z

DAMPER(L),FRONT

Part Number	Qty.	Specifications	Price
B09234900	1	AN (B092-34-900A) 1500 1600 - 880501 BW -408978	€ 59,84
B09234900A	1	A (B092-34-900B) 1500 1600 880501 - 891001 BW408978-
B09234900B	1	AN (B097-34-900B) 1500 1600 891001 -	€ 59,84
B22234900	1	AN (B222-34-900A) 1700 - 880501 BW -408978
B22234900A	1	A (B222-34-900B) 1700 880501 - 891006 BW408978-	€ 59,84
B22234900B	1	1700 891006 -	€ 61,65

» 90901

NUT

Part Number	Qty.	Specifications	Price
999211000	1		€ 2,87

» 90901

NUT

Part Number	Qty.	Specifications	Price
999211200	1		€ 2,46

» 90901

NUT

Part Number	Qty.	Specifications	Price
999211400	1		€ 2,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400802	1		€ 2,13

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561020	1		€ 3,44

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711000	1		€ 0,51

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711200	1		€ 0,51

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711400	1		€ 0,40
