Mazda 323WAGON BW 1987-06 Mazda Front Axle

Mazda parts catalog

Parts > Mazda 323WAGON > 1987-06 > Chassis Axle Suspension & Brake & Steering > Front Axle

Search by part number:

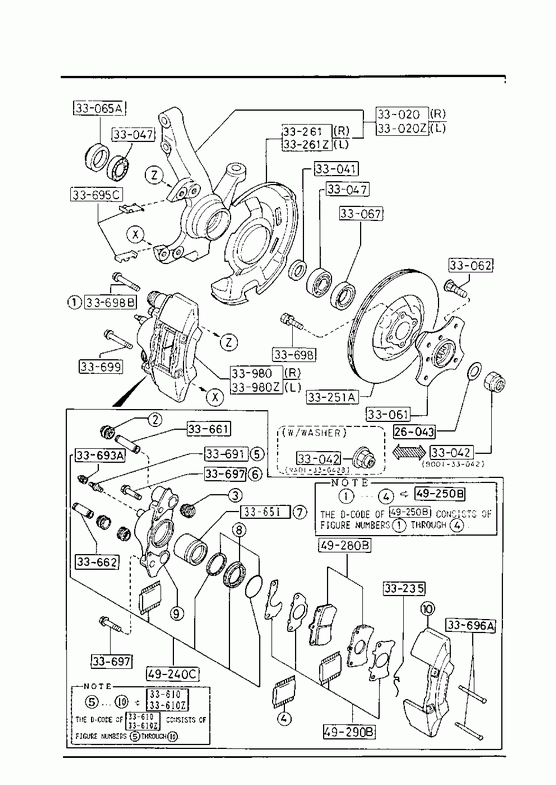

Front Axle

WASHER,CLAW

Part Number	Qty.	Specifications	Price
B00133043	2		€ 2,53

» 33020

KNUCKLE(R),STEERING

Part Number	Qty.	Specifications	Price
BJ0133020B	1	FOR D=238MM DISC P.	€ 134,98

» 33020Z

KNUCKLE(L),STEERING

Part Number	Qty.	Specifications	Price
BJ0133030B	1	FOR D=238MM DISC P.	€ 134,98

» 33041

SPACER,BEARING

Part Number	Qty.	Specifications	Price
B00133041	2	L=6.285MM	€ 4,38
B00233041	2	L=6.325MM	€ 4,38
B00333041	2	L=6.365MM	€ 4,38
B00433041	2	L=6.405MM	€ 4,38
B00533041	2	L=6.445MM	€ 4,38
B00633041	2	L=6.485MM	€ 4,38
B00733041	2	L=6.525MM	€ 4,16
B00833041	2	L=6.565MM	€ 4,16
B00933041	2	L=6.605MM	€ 4,16
B01033041	2	L=6.645MM	€ 4,16
B01133041	2	L=6.685MM	€ 4,16
B01233041	2	L=6.725MM	€ 4,16
B01333041	2	L=6.765MM	€ 4,16
B01433041	2	L=6.805MM	€ 4,16
B01533041	2	L=6.845MM	€ 4,16
B01633041	2	L=6.885MM	€ 4,16
B01733041	2	L=6.925MM	€ 4,16
B01833041	2	L=6.965MM	€ 4,38
B01933041	2	L=7.005MM	€ 4,38
B02033041	2	L=7.045MM	€ 4,38
B02133041	2	L=7.085MM	€ 4,38

» 33042

NUT

Part Number	Qty.	Specifications	Price
B00133042	2	W/O WASHER	€ 3,98
NA0133042A	2	W/WASHER 890107 - 900801 BW413248-
NA0133042B	2	W/WASHER 900801 -	€ 4,72

» 33047

BEARING,WHEEL

Part Number	Qty.	Specifications	Price
B00133047	4		€ 20,33

» 33061

HUB,WHEEL

Part Number	Qty.	Specifications	Price
B00133061B	2		€ 95,18

» 33062

BOLT,HUB

Part Number	Qty.	Specifications	Price
B09233062B	8		€ 2,92

» 33065A

SEAL,OIL IN.

Part Number	Qty.	Specifications	Price
B00133065A	2		€ 5,88

» 33067

SEAL,OIL

Part Number	Qty.	Specifications	Price
B09233067	2		€ 5,88

» 33235

CLIP

Part Number	Qty.	Specifications	Price
B09233233	2		€ 3,63

» 33251A

PLATE,DISC

Part Number	Qty.	Specifications	Price
BF6833251A	2	D=238MM	€ 43,70

» 33261

COVER(R),DUST

Part Number	Qty.	Specifications	Price
B09233261A	1	FOR D=238MM DISC P. - 890107 BW -413248
B09233261B	1	FOR D=238MM DISC P. 890107 - BW413248-	€ 15,54

» 33261Z

COVER(L),DUST

Part Number	Qty.	Specifications	Price
B09233271A	1	FOR D=238MM DISC P. - 890107 BW -413248	€ 14,24
B09233271B	1	FOR D=238MM DISC P. 890107 - BW413248-	€ 15,54

» 33610

BODY & PISTON(R),CALIPER

Part Number	Qty.	Specifications	Price
B10733610A	1		€ 187,15

» 33610Z

BODY & PISTON(L),CALIPER

Part Number	Qty.	Specifications	Price
B10733710A	1		€ 187,15

» 33651

PISTON,CALIPER-FRT

Part Number	Qty.	Specifications	Price
B09233651A	2		€ 58,50

» 33661

SLEEVE,MAIN-FRT CALIPER

Part Number	Qty.	Specifications	Price
B09233661	2		€ 14,09

» 33662

SLEEVE,SUB-FRT CALIPER

Part Number	Qty.	Specifications	Price
B09233662	2		€ 10,99

» 33691

SCREW,BLEEDER

Part Number	Qty.	Specifications	Price
B00133691	2		€ 5,64

» 33693A

CAP,BLEEDER SCREW

Part Number	Qty.	Specifications	Price
025933693	2		€ 2,79

» 33695C

PLATE,GUIDE

Part Number	Qty.	Specifications	Price
B09233695A	4	AN (B455-33-695B)	€ 1,75

» 33696A

PIN,PAD-FRONT BRAKE

Part Number	Qty.	Specifications	Price
B10733696	4		€ 2,20

» 33697

BOLT,BRIDGE-FRT BRAKE

Part Number	Qty.	Specifications	Price
B09233697	4		€ 3,03

» 33698

BOLT,WHEEL CYL.

Part Number	Qty.	Specifications	Price
B00233680	8		€ 3,67

» 33698B

BOLT

Part Number	Qty.	Specifications	Price
B09233698	2	- 880401 BW -408306	€ 3,97

» 33699

BOLT,CALIPER BRAKE

Part Number	Qty.	Specifications	Price
B09233699	2		€ 3,67

» 33980

CALIPER(R),FRT BRAKE

Part Number	Qty.	Specifications	Price
BG6233980B	1	ASBESTOS - 870701 BW -400201	€ 222,62
BL5333980	1	NON ASBESTOS 870701 - BW400201-	€ 222,62

» 33980Z

CALIPER(L),FRT BRAKE

Part Number	Qty.	Specifications	Price
BG6233990B	1	ASBESTOS - 870701 BW -400201	€ 222,62
BL5333990	1	NON ASBESTOS 870701 - BW400201-	€ 222,62

» 49240C

SEAL KIT,CALIPER-FRT

Part Number	Qty.	Specifications	Price
B0923324Z	1	871001 - BW403375-	€ 37,98
B09249240	1	AN (B092-33-24Z) - 871001 BW -403375	€ 36,13

» 49250B

BOOT KIT,FRT CALIPER

Part Number	Qty.	Specifications	Price
B0923325Z	1	871001 - BW403375-	€ 20,27
B09249250	1	AN (B092-33-25Z) - 871001 BW -403375	€ 19,48

» 49280B

PAD SUB SET,FRT CALIPER

Part Number	Qty.	Specifications	Price
BG3449280A	1	ASBESTOS - 871001 BW -403375	€ 47,78
BL533328Z	1	NON ASBESTOS 871001 - BW403375-	€ 47,78

» 49290B

ATTACHMENT,PAD-FRONT

Part Number	Qty.	Specifications	Price
B0923329Z	1	871001 - BW403375-	€ 13,86
B09249290A	1	AN (B092-33-29Z) - 871001 BW -403375	€ 13,46
