Mazda 323WAGON BW 1987-06 Mazda Transmission Gears

Mazda parts catalog

Parts > Mazda 323WAGON > 1987-06 > Gasoline-engine & Transmission > Transmission Gears(manual)(gasoline)(1600cc)

Search by part number:

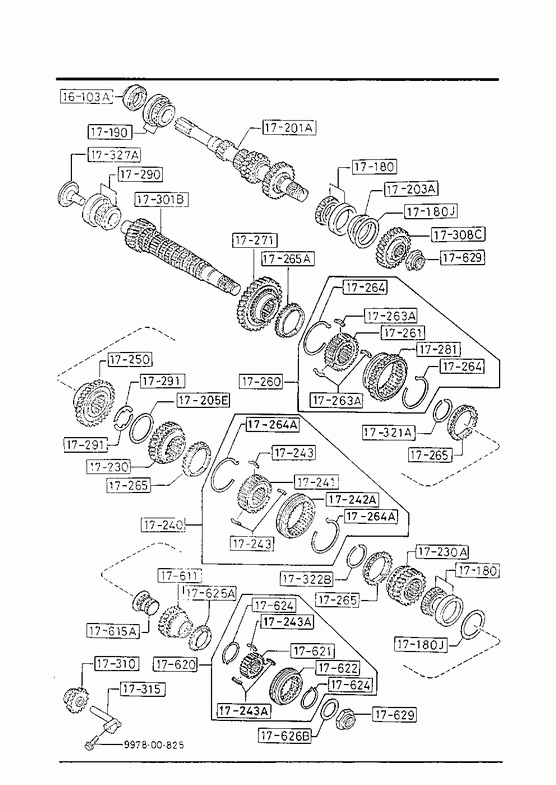

Transmission Gears(manual)(gasoline)(1600cc)

SEAL,OIL

Part Number	Qty.	Specifications	Price
061316103	1		€ 7,63

» 17180

BEARING

Part Number	Qty.	Specifications	Price
F40117180	2		€ 31,44

» 17180J

SHIM

Part Number	Qty.	Specifications	Price
999635120	2	T=0.2MM	€ 2,22
999635125	2	T=0.25MM	€ 2,18
999635130	2	T=0.3MM	€ 2,22
999635135	2	T=0.35MM	€ 2,22
999635140	2	T=0.4MM	€ 2,07
999635145	2	T=0.45MM	€ 2,22
999635150	2	T=0.5MM	€ 2,07
999635155	2	T=0.55MM	€ 2,22

» 17190

BEARING,TAPER

Part Number	Qty.	Specifications	Price
F40117190	1		€ 25,01

» 17201A

GEAR,PRIMARY SHAFT

Part Number	Qty.	Specifications	Price
F51217201A	1		€ 208,43

» 17203A

SPRING,DIAGHRAM

Part Number	Qty.	Specifications	Price
F40117203B	1		€ 4,12

» 17205E

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117205	1		€ 1,18

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
F40117231A	1		€ 68,65

» 17230A

GEAR,4TH

Part Number	Qty.	Specifications	Price
F40217211	1		€ 77,43

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
F40117240B	1		€ 83,14

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F40117241	1	A (F401-17-241A)	€ 26,10

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1		€ 43,46

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	3	AN (F401-17-243C)	€ 3,12

» 17243A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F50117243	3		€ 3,18

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
F40317251	1		€ 84,60

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
F40117260H	1	A (F401-17-260J) - 880801 BW -410426	€ 107,26
F40117260J	1	880801 - BW410426-	€ 107,26

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F40117261A	1

» 17263A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117263A	3		€ 2,92

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
F40217264	2		€ 2,62

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117265A	3		€ 20,30

» 17265A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40217265D	1		€ 19,06

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
F40117271B	1		€ 80,19

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
F40117281F	1	A (F401-17-281G) - 880801 BW -410426
F40117281G	1	880801 - BW410426-	€ 52,97

» 17290

BEARING,TAPER

Part Number	Qty.	Specifications	Price
F40117290	1	KOYO MAKE	€ 36,01

» 17291

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F40117276	2		€ 8,12

» 17301B

GEAR,SECOND.SHAFT

Part Number	Qty.	Specifications	Price
F51117301	1		€ 167,71

» 17308C

GEAR,PRIMARY 5TH

Part Number	Qty.	Specifications	Price
F50217308A	1		€ 88,04

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
F40117310A	1		€ 60,39

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
F40117315B	1	- 890801 BW -417467
F40117315C	1	890801 - BW417467-

» 17321A

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117321	1	A (G401-17-322)	€ 4,37

» 17322B

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117322	1		€ 3,94

» 17327A

FUNNEL

Part Number	Qty.	Specifications	Price
F40117327	1	AN (F5E0-17-327)	€ 3,46

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
F50217611B	1		€ 97,69

» 17615A

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
F50117615A	1		€ 32,57

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
F50117620C	1	AN (F501-17-620D)	€ 66,44

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F50117621	1		€ 18,40

» 17622

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F50117622A	1	AN (F501-17-622D)	€ 36,57

» 17624

SPRING,SYNC.KEY

Part Number	Qty.	Specifications	Price
F50117624A	2		€ 2,56

» 17625A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F50117625	1		€ 19,25

» 17626B

PLATE,STOPPER

Part Number	Qty.	Specifications	Price
F50117626	1	A (F501-17-626A)	€ 2,01

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
F50117628A	2	- 890207 BW -414121	€ 14,85
F52017628	2	890207 - BW414121-	€ 13,29

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800825	1		€ 1,55

Transmission Gears(manual)(gasoline)(1600cc)
