Mazda 323WAGON BW 1987-06 Mazda Piston,crankshaft & Flywheel

Mazda parts catalog

Parts > Mazda 323WAGON > 1987-06 > Gasoline-engine & Transmission > Piston,crankshaft & Flywheel(gasoline)(1500cc)

Search by part number:

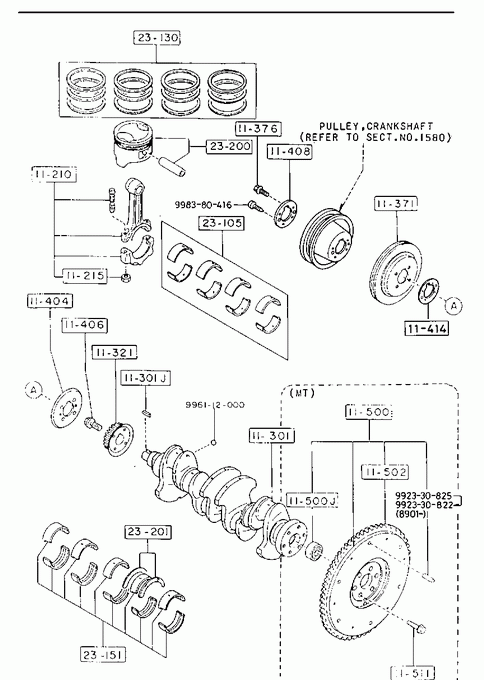

Piston,crankshaft & Flywheel(gasoline)(1500cc)

ROD,CONNECTING

Part Number	Qty.	Specifications	Price
803411210	4	AN (8034-11-210A) - 890601 BW -416590
803411210A	4	A (8034-11-210B) 890601 - BW416590-	€ 96,95

» 11215

NUT,CONNECTING ROD

Part Number	Qty.	Specifications	Price
803411215	8		€ 2,63

» 11301

CRANKSHAFT

Part Number	Qty.	Specifications	Price
B10111300A	1	A (B101-11-300B) - 880701 BW -409944
B10111300B	1	880701 - BW409944-	€ 753,94

» 11301J

KEY,WOODRUFF-PULLEY

Part Number	Qty.	Specifications	Price
B63011317	1	A (B630-11-317A)	€ 3,61

» 11321

PULLEY,TIMING BELT

Part Number	Qty.	Specifications	Price
B36611321A	1	890207 - BW414121-	€ 31,89
B63011321B	1	- 890207 BW -414121	€ 31,85

» 11371

PULLEY,CRANKSHAFT

Part Number	Qty.	Specifications	Price
B50111401	1		€ 85,04

» 11376

BOLT,PULLEY

Part Number	Qty.	Specifications	Price
B63111405	4		€ 3,06

» 11404

PLATE,TIMING BELT GUIDE

Part Number	Qty.	Specifications	Price
B63011404D	1	- 880901 BW -410898	€ 2,74
B63211404	1	A (B632-11-404A) 880901 - BW410898-	€ 2,64

» 11406

BOLT,LOCK-C.SHAFT PULLEY

Part Number	Qty.	Specifications	Price
B63011406B	1	AN (B630-11-406C) - 880501 BW -408978	€ 8,89
B63011406C	1	880501 - BW408978-	€ 8,28

» 11408

PLATE,CRANKSHAFT PULLEY

Part Number	Qty.	Specifications	Price
B63011408B	1		€ 5,54

» 11414

PLATE(OUT),TIMING BELT

Part Number	Qty.	Specifications	Price
B63111414	1	880901 - BW410898-	€ 3,03

» 11500

WHEEL,FLY

Part Number	Qty.	Specifications	Price
B63011500	1	AN (B630-11-500A) MANUAL TRANSMISSION	€ 266,48

» 11500J

BEARING,BALL-FLY WHEEL

Part Number	Qty.	Specifications	Price
F80111303	1	MANUAL TRANSMISSION	€ 14,62

» 11502

GEAR,RING-FLY WHEEL

Part Number	Qty.	Specifications	Price
011011502	1	KANDA MANUAL TRANSMISSION	€ 71,59

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
F20111511	6	A (F201-11-511A) MANUAL TRANSMISSION 880401 - BW408306-	€ 3,21
F80111511	6	MANUAL TRANSMISSION - 880401 BW -408306	€ 3,21

» 23105

METAL SET,CONN.ROD

Part Number	Qty.	Specifications	Price
B3Y011SE0	1	STD.	€ 80,04
B3Y011SF0	1	O.S. 0.25	€ 80,04
B3Y011SFX	1	O.S. 0.50	€ 80,04
B3Y011SFY	1	O.S. 0.75	€ 76,17

» 23130

RING SET,PISTON

Part Number	Qty.	Specifications	Price
B6Y011SC0A	1	STD.	€ 205,41
B6Y011SD0A	1	O.S. 0.25	€ 205,41
B6Y011SDXA	1	O.S. 0.50	€ 205,41

» 23151

METAL SET,MAIN BRG.

Part Number	Qty.	Specifications	Price
B6Y111SG0	1	STD.	€ 123,26
B6Y111SH0	1	O.S. 0.25	€ 96,61
B6Y111SHX	1	O.S. 0.50	€ 96,61
B6Y111SHY	1	O.S. 0.75	€ 120,82

» 23200

PISTON SET

Part Number	Qty.	Specifications	Price
B5Y111SA0	4	STD. - 890101 BW -413158	€ 66,19
B5Y111SA0A	4	STD. 890101 - BW413158-	€ 68,86
B5Y111SB0	4	O.S. 0.25 - 890101 BW -413158	€ 64,86
B5Y111SB0A	4	O.S. 0.25 890101 - BW413158-	€ 67,48
B5Y111SBX	4	O.S. 0.50 - 890101 BW -413158
B5Y111SBXA	4	O.S. 0.50 890101 - BW413158-	€ 68,86

» 23201

METAL SET,THRUST

Part Number	Qty.	Specifications	Price
B6Y011SJ0	1	STD.	€ 36,48
B6Y011SK0	1	O.S. 0.25	€ 36,48
B6Y011SKX	1	O.S. 0.50	€ 36,48
B6Y011SKY	1	O.S. 0.75	€ 36,48

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998380416	1		€ 0,46

» 99220

Part Number	Qty.	Specifications	Price
992330822	1		€ 1,17

» 99220

Part Number	Qty.	Specifications	Price
992330825	1		€ 0,70

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

Piston,crankshaft & Flywheel(gasoline)(1500cc)
