- Parts > Mazda 323WAGON > 1987-06 > Gasoline-engine & Transmission > Oil Pan & Timing Cover(gasoline)(1500cc)
- Search by part number:
-

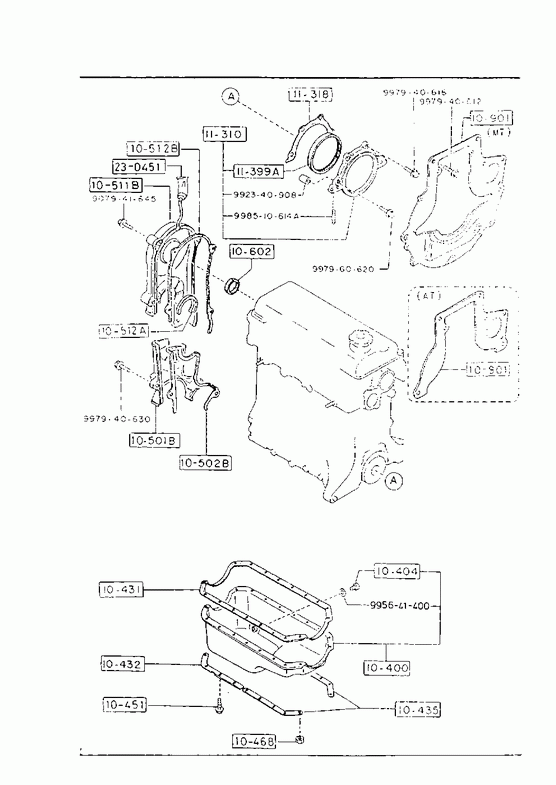

Oil Pan & Timing Cover(gasoline)(1500cc)
-
» 10400 PAN,OIL Part Number Qty. Specifications Price B30810400A 1 A (B308-10-400B)
- 890101
BW**** -413158€ 140,27 B30810400B 1 890101 -
BW****413158-€ 140,27 » 10404 PLUG,DRAIN Part Number Qty. Specifications Price HE0310404 1 € 2,18 » 10431 GASKET,OIL PAN Part Number Qty. Specifications Price B63010431A 1 € 21,00 » 10432 STIFFENER,FRONT Part Number Qty. Specifications Price B63010435 2 A (B630-10-435A) € 5,46 » 10435 STIFFENER,REAR Part Number Qty. Specifications Price B63010436 2 € 5,68 » 10451 BOLT,OIL PAN Part Number Qty. Specifications Price PN1110465 16 € 1,55 » 10468 NUT,OIL PAN Part Number Qty. Specifications Price B63010468 2 € 1,60 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price B63010501B 1 A (B630-10-501C)
- 880501
BW**** -408978B63010501C 1 A (B630-10-500D)
880501 -
BW****408978-€ 27,73 » 10502B GASKET Part Number Qty. Specifications Price B63010502A 1 NON ASBESTOS
- 881026
BW**** -411854€ 16,16 B63010502B 1 NON ASBESTOS
881026 -
BW****411854-€ 16,81 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price B63010511A 1 A (B630-10-511B) € 48,30 » 10512A GASKET,T.BELT COVER-UP Part Number Qty. Specifications Price B63010513 1 € 14,51 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price B63010512A 1 NON ASBESTOS € 17,43 » 10602 SEAL,OIL-CAMSHAFT Part Number Qty. Specifications Price RF0112602 1 A (BP01-10-602) € 7,35 » 10901 PLATE,END Part Number Qty. Specifications Price B63010901C 1 MANUAL TRANSMISSION € 29,33 B63110901A 1 AN (B631-10-901B)
AUTOMATIC TRANSMISSION
- 880201
BW**** -406994B63110901B 1 AUTOMATIC TRANSMISSION
880201 -
BW****406994-» 11310 COVER,REAR Part Number Qty. Specifications Price B63011310A 1 - 881201
BW**** -412637€ 92,99 B6VD11310 1 A (B6VD-11-310B)
881201 - 890623
BW****412637-416973B6VD11310B 1 890623 -
BW****416973-€ 97,72 » 11318 GASKET,REAR COVER Part Number Qty. Specifications Price B63011318 1 ASBESTOS
- 881201
BW**** -412637€ 4,35 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price B63011312 1 A (BP05-11-312) € 20,46 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 881201 -
BW****412637-€ 39,13 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907941645 1 € 1,88 » 90857 STUD Part Number Qty. Specifications Price 998510614A 1 € 0,79 » 99234 PIN,TUBULAR Part Number Qty. Specifications Price 992340908 1 € 2,06 » 99560 GASKET Part Number Qty. Specifications Price 995641400 1 € 1,19 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960670 1
