Mazda 323WAGON BW 1987-06 Mazda Cylinder Head & Cover

Mazda parts catalog

Parts > Mazda 323WAGON > 1987-06 > Gasoline-engine & Transmission > Cylinder Head & Cover(gasoline)(1500cc)

Search by part number:

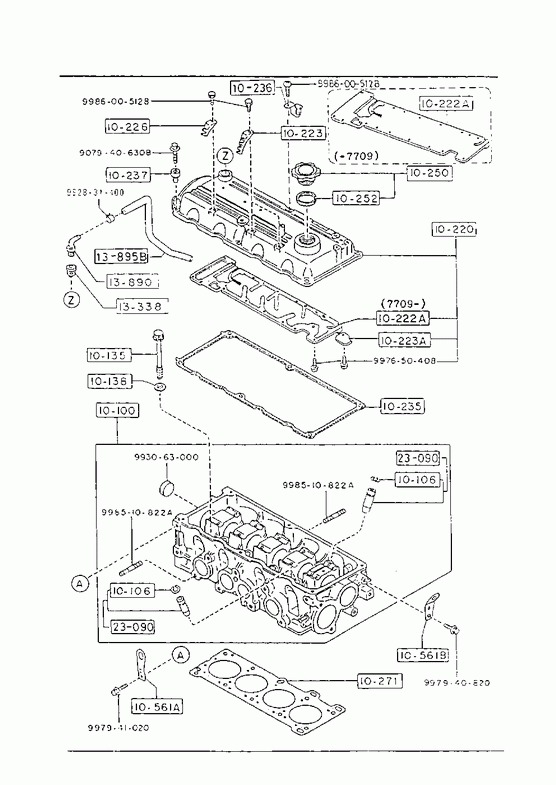

Cylinder Head & Cover(gasoline)(1500cc)

HEAD,CYLINDER

Part Number	Qty.	Specifications	Price
B50510100	1	AN (B505-10-100A) - 871101 BW -404557	€ 684,51
B50510100A	1	AN (B505-10-100B) 871101 - 880901 BW404557-410898
B50510100C	1	A (B505-10-100D) 880901 - 890401 BW410898-415602
B50510100E	1	AN (B505-10-100G) 890401 - BW415602-	€ 684,51

» 10106

CLIP,VALVE GUIDE

Part Number	Qty.	Specifications	Price
024910106	8		€ 0,40

» 10135

BOLT,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B63010135	10	A (B630-10-135A) - 880901 BW -410898	€ 5,98
B63010135A	10	880901 - BW410898-	€ 6,28

» 10138

WASHER,PLAIN CYL. HEAD

Part Number	Qty.	Specifications	Price
B63010138	10	A (B630-10-138A) - 881201 BW -412637	€ 1,67
B63010138A	10	881201 - BW412637-	€ 1,67

» 10220

COVER,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B30910220	1	AN (B630-10-220D) - 870709 BW -400304
B63010220E	1	A (B630-10-220F) 870709 - 880408 BW400304-408469	€ 195,85
B63010220F	1	AN (B630-10-220G) 880408 - BW408469-	€ 195,85

» 10222A

PLATE 'A',OIL BAFFLE-CYL.

Part Number	Qty.	Specifications	Price
B30910222	1	AN (B630-10-222A) - 870709 BW -400304
B63010222B	1	870709 - 880408 BW400304-408469	€ 8,68
B63010222C	1	880408 - BW408469-	€ 10,17

» 10223

PROTECTOR,CORD

Part Number	Qty.	Specifications	Price
FE5010224	2	NIFCO	€ 2,79

» 10223A

PLATE 'B',OIL BAFFLE-CYL.

Part Number	Qty.	Specifications	Price
B63010223	1		€ 9,37

» 10226

PROTECTOR,HT.CORD

Part Number	Qty.	Specifications	Price
E35610241	1		€ 2,05

» 10235

GASKET,HEAD COVER

Part Number	Qty.	Specifications	Price
B63010235	1	A (B630-10-235A)	€ 7,16

» 10236

CLIP

Part Number	Qty.	Specifications	Price
E30110236A	1		€ 2,14

» 10237

WASHER,SEALING-HEAD COVER

Part Number	Qty.	Specifications	Price
B63010237A	6		€ 2,03

» 10250

CAP,OIL FILLER

Part Number	Qty.	Specifications	Price
045310250	1	A (0453-10-250A) - 881001 BW -411432	€ 10,22
045310250A	1	881001 - BW411432-	€ 10,63

» 10252

GASKET

Part Number	Qty.	Specifications	Price
032410252	1		€ 2,33

» 10271

GASKET,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B63010271A	1	ASBESTOS - 881201 BW -412637
B63010271C	1	ASBESTOS 881201 - BW412637-	€ 43,35

» 10561A

HANGER,ENGINE-FRONT

Part Number	Qty.	Specifications	Price
B63010561A	1		€ 4,41

» 10561B

HANGER,ENGINE-REAR

Part Number	Qty.	Specifications	Price
B63010566	1	A (B631-10-566)	€ 4,41

» 13338

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
E30113338A	1		€ 2,63

» 13890

VALVE,P.C.V.

Part Number	Qty.	Specifications	Price
B60313890	1		€ 17,91

» 13895B

HOSE,P.C.V.

Part Number	Qty.	Specifications	Price
B50113742	1		€ 7,32

» 23090

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
B6Y010290	8		€ 12,51

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940630B	1		€ 2,27

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510822A	1		€ 1,44

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998600512B	1		€ 0,69

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831400	1		€ 1,16

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993063000	1		€ 1,90

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941020	1		€ 2,06

Cylinder Head & Cover(gasoline)(1500cc)
