Mazda 323WAGON BW 1986-01 Mazda Cooling System

Mazda parts catalog

Parts > Mazda 323WAGON > 1986-01 > Diesel-engine Supplement > Cooling System(diesel)

Search by part number:

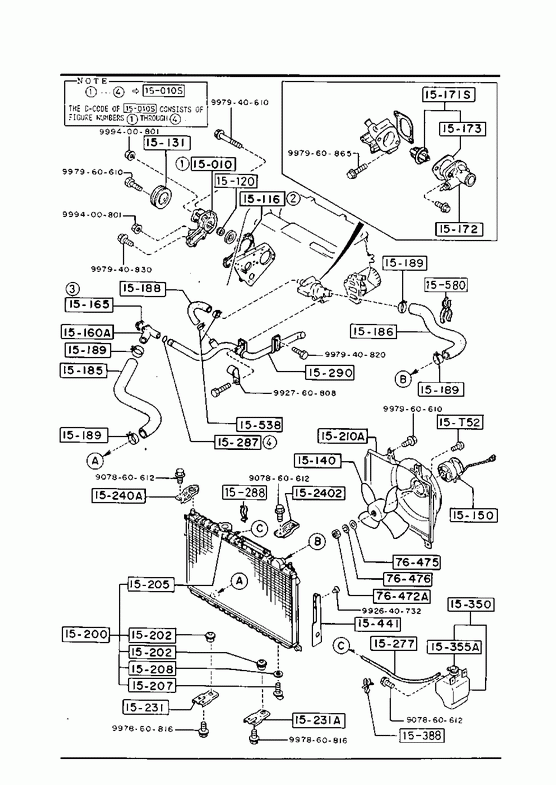

Cooling System(diesel)
» 15010 PUMP,WATER

Part Number Qty. Specifications Price
PN1115010A 1 A (8AB6-15-010)
- 870501
BW12** -117627

» 15010S PUMP SET,WATER

Part Number Qty. Specifications Price
8AB615010 1 A (8AB6-15-010A)
870501 -
BW12**117627- € 91,60

» 15116 GASKET,WATER PUMP

Part Number Qty. Specifications Price
PN1115116 1 A (PN63-15-116)
€ 4,98

» 15120 SEAL,WATER-PUMP

Part Number Qty. Specifications Price
FE1H15120 1 870501 -
BW12**117627- € 17,24

» 15131 PULLEY,WATER PUMP

Part Number Qty. Specifications Price
PN1115131 1
€ 31,27

» 15140 FAN,COOLING

Part Number Qty. Specifications Price
FE6915140 1
€ 33,96

» 15150 MOTOR,COOLING FAN

Part Number Qty. Specifications Price
RF0515150 1
€ 199,56

» 15160A INLET,WATER PUMP

Part Number Qty. Specifications Price
PN1115161A 1
€ 29,61

» 15165 GASKET,W.PUMP INLET

Part Number Qty. Specifications Price
PN1115165 1 A (PN63-15-165)
€ 3,03

» 15171S THERMOSTAT SET

Part Number Qty. Specifications Price
8AB315171 1 ASBESTOS
€ 28,27

» 15172 COVER,THERMOSTAT

Part Number Qty. Specifications Price
PN1115172A 1
€ 16,99

» 15173 GASKET,THERMOSTAT COVER

Part Number Qty. Specifications Price
PN1115173A 1
€ 5,09

» 15185 HOSE,WATER

Part Number Qty. Specifications Price
PN1115185A 1
€ 24,47

» 15186 HOSE,WATER

Part Number Qty. Specifications Price
PN1115186 1
€ 24,47

» 15188 HOSE,WATER BY-PASS

Part Number Qty. Specifications Price
PN1115261 1
€ 6,47

» 15189 CLAMP,HOSE

Part Number Qty. Specifications Price
B63015182 4 AN (9WNCB-3700)
€ 2,97

» 15200 RADIATOR

Part Number Qty. Specifications Price
PN1615200 1 DENSO
€ 325,01

» 15202 RUBBER,MOUNT

Part Number Qty. Specifications Price
PN1215202 2
€ 9,32

» 15205 CAP,RADIATOR

Part Number Qty. Specifications Price
FEG815205 1 DENSO
€ 13,67

» 15207 COCK,DRAIN

Part Number Qty. Specifications Price
084215316 1 DENSO
€ 4,99

» 15208 GASKET,DRAIN COCK

Part Number Qty. Specifications Price
071015204 1 DENSO
€ 1,74

» 15210A COWLING,RADIATOR

Part Number Qty. Specifications Price
PN1115210 1
€ 64,01

» 15231 BRACKET(R),RADIATOR-LWR

Part Number Qty. Specifications Price
E5D415235 1
€ 9,85

» 15231A BRACKET(L),RADIATOR-LWR

Part Number Qty. Specifications Price
E5D415231 1
€ 3,29

» 152402 BRACKET(L),RADIATOR-UP

Part Number Qty. Specifications Price
PN1215250 1 A (PN11-15-240A)
€ 31,92

» 15240A BRACKET,RADIATOR UP.

Part Number Qty. Specifications Price
PN1115240A 2
€ 33,56

» 15277 HOSE,WATER SUB TANK

Part Number Qty. Specifications Price
E5D315277A 1
€ 6,17

» 15287 RING,'O'-WATER BYPASS

Part Number Qty. Specifications Price
E30115287 1
€ 1,97

» 15288 CLIP

Part Number Qty. Specifications Price
PN1220811 1 A (B630-15-388)
- 860801
BW12** -106669

» 15290 PIPE,BYPASS

Part Number Qty. Specifications Price
PN1115290 1 A (PN20-15-290)
- 870501
BW12** -117627
PN2015290 1 870501 -
BW12**117627- € 25,95

» 15350 TANK,SUB-RADIATOR

Part Number Qty. Specifications Price
E5D315250B 1
€ 36,63

» 15355A CAP,SUB TANK

Part Number Qty. Specifications Price
E5D315245A 1
€ 12,98

» 15388 CLIP,HOSE

Part Number Qty. Specifications Price
B63015388 2 860801 -
BW12**106669- € 2,51

» 15441 SEAL(L),RADIATOR

Part Number Qty. Specifications Price
PN1115441A 1
€ 9,41

» 15538 CLAMP,HOSE

Part Number Qty. Specifications Price
PN1115538 2
€ 2,47

» 15580 CLIP,WATER HOSE

Part Number Qty. Specifications Price
PN1615580 1
€ 3,22

» 15T52 SCREW

Part Number Qty. Specifications Price
FE6815T52 3
€ 0,66

» 76472A NUT

Part Number Qty. Specifications Price
086676472A 1
€ 3,49

» 76475 WASHER,PLAIN

Part Number Qty. Specifications Price
086676475 1
€ 0,32

» 76476 WASHER,PLAIN

Part Number Qty. Specifications Price
086676476 1
€ 0,34

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860612 1
€ 1,60

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801 1
€ 1,64

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860816 1
€ 1,73

» 99263 RIVET

Part Number Qty. Specifications Price
992640732 1

» 99274 CLIP

Part Number Qty. Specifications Price
992760808 1
€ 2,72

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940610 1
€ 0,95

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940820 1
€ 1,24

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940830 1
€ 2,31

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960610 1
€ 0,69

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960865 1
€ 2,49

Part Number	Qty.	Specifications	Price
PN1115010A	1	A (8AB6-15-010) - 870501 BW12 -117627**

Cooling System(diesel)
