Mazda 323WAGON BW 1986-01 Mazda Carburetor Components

Mazda parts catalog

Parts > Mazda 323WAGON > 1986-01 > Gasoline-engine Supplement > Carburetor Components(gasoline)(1300cc)

Search by part number:

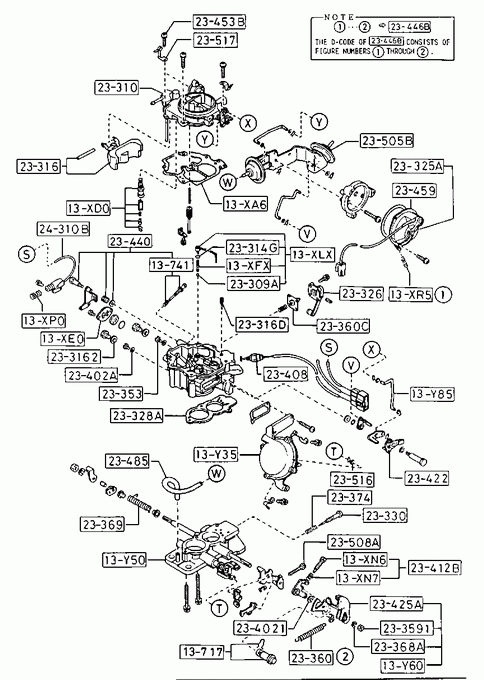

Carburetor Components(gasoline)(1300cc)

PIN,COTTER

Part Number	Qty.	Specifications	Price
E36613XB6	1

» 13741

SCREW SET,TH. ADJUST

Part Number	Qty.	Specifications	Price
E36613XM0	1		€ 10,58

» 13XA6

GASKET,AIR HORN

Part Number	Qty.	Specifications	Price
E36613XA6	1	ASBESTOS	€ 6,34

» 13XD0

VALVE SET,FLOAT-CAB.

Part Number	Qty.	Specifications	Price
E36613XD0	1	AN (E366-13-XD0A) - 860401 BW12 -102693**
E36613XD0A	1	860401 - BW12102693-**	€ 15,52

» 13XE0

GAUGE SET,LEVEL

Part Number	Qty.	Specifications	Price
E36613XE0	1		€ 5,55

» 13XFX

WEIGHT SET,INJECTOR

Part Number	Qty.	Specifications	Price
E36613XFX	1	- 860801 BW12 -106669**

» 13XLX

NOZZLE SET,PUMP

Part Number	Qty.	Specifications	Price
E36613XLX	1	860801 - BW12106669-**

» 13XN6

SCREW,ADJUST-TH.OPENER

Part Number	Qty.	Specifications	Price
E36613XN6	1	A (E366-13-XN6A) - 860606 BW12 -104504**
E36613XN6A	1	860606 - BW12104504-**

» 13XN7

SPRING,ADJUST-TH.OPENER

Part Number	Qty.	Specifications	Price
E36613XN7	1	AN (B315-13-XM2)

» 13XP0

SCREW SET,MICRO ADJUST

Part Number	Qty.	Specifications	Price
E36613XP0	1	NOR-POWER	€ 1,88

» 13XR5

SPRING,RETURN-2ND VALVE

Part Number	Qty.	Specifications	Price
E36613XR5	1		€ 3,75

» 13Y35

CHAMBER SET,2ND DIAPHRAGM

Part Number	Qty.	Specifications	Price
E35813Y35	1	A (E358-13-Y35A) NOR-POWER	€ 71,34
E36013Y35	1	ASBESTOS LO-POWER	€ 59,73

» 13Y50

FLANGE & LEVER SET-CAB

Part Number	Qty.	Specifications	Price
E35813Y50	1	A (E358-13-Y50A) NOR-POWER - 861201 BW12 -110760**	€ 195,55
E35813Y50A	1	NOR-POWER 861201 - BW12110760-**
E35913Y50	1	A (E359-13-Y50A) LO-POWER - 861201 BW12 -110760**
E35913Y50A	1	LO-POWER 861201 - BW12110760-**	€ 195,55

» 13Y60

LEVER SET,FLANGE

Part Number	Qty.	Specifications	Price
E11613Y60	1	LO-POWER
E36613Y60	1	NOR-POWER

» 13Y85

ROD,CHOKE CONNECT-CARB.

Part Number	Qty.	Specifications	Price
E35813Y85	1		€ 3,11

» 23309A

BALL,STEEL

Part Number	Qty.	Specifications	Price
E36613XB7	1	- 860801 BW12 -106669**	€ 1,12

» 23310

HORN,AIR

Part Number	Qty.	Specifications	Price
E35813Y00A	1	AN (E358-13-Y00B) - 860401 BW12 -102693**
E35813Y00B	1	A (E358-13-Y00C) 860401 - BW12102693-**	€ 154,69

» 23314G

RING,'O'

Part Number	Qty.	Specifications	Price
E36613XB8	1	- 860801 BW12 -106669**	€ 2,24

» 23316

FLOAT

Part Number	Qty.	Specifications	Price
E36613XC0	1		€ 18,97

» 233162

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
E36613Y30	1		€ 7,18

» 23316D

JET,SLOW

Part Number	Qty.	Specifications	Price
E1X113YA3	1	- 860704 BW12 -105757**
E36613YA3	1	860704 - BW12105757-**

» 23325A

COVER SET,BIMETAL

Part Number	Qty.	Specifications	Price
E35813XHX	1		€ 142,93

» 23326

ARM,PUMP

Part Number	Qty.	Specifications	Price
E36613XGX	1		€ 17,22

» 23328A

INSULATOR

Part Number	Qty.	Specifications	Price
E36613YM8	1	ASBESTOS	€ 20,48

» 23330

FLANGE SET

Part Number	Qty.	Specifications	Price
E11613Y70	1	LO-POWER NOR-POWER	€ 8,90
E35913Y70	1	NOR-POWER 870301 - BW12115364-**

» 23353

JET,MAIN 1ST

Part Number	Qty.	Specifications	Price
E35913YA0	1	860704 - BW12105757-**
E3X213YA0	1	- 860704 BW12 -105757**	€ 4,04

» 233591

NUT

Part Number	Qty.	Specifications	Price
E36613YJ5	1

» 23360

CLIP SET

Part Number	Qty.	Specifications	Price
E36613XR0	1		€ 7,09

» 23360C

PLUNGER SET,PUMP

Part Number	Qty.	Specifications	Price
E36613XEX	1		€ 22,59

» 23368A

WASHER,SPRING

Part Number	Qty.	Specifications	Price
E36613YJ2	1

» 23369

SPRING,THROT. RETURN

Part Number	Qty.	Specifications	Price
E36613XR1	1	A (B610-13-XR1)	€ 4,61

» 23374

SCREW SET,IDLE ADJ.

Part Number	Qty.	Specifications	Price
E35813XMX	1		€ 8,34

» 234021

COLLAR

Part Number	Qty.	Specifications	Price
E36613Y65	1

» 23402A

JET,MAIN 2ND

Part Number	Qty.	Specifications	Price
E35913YA1	1	860704 - BW12105757-**	€ 3,84
E36613YA1	1	- 860704 BW12 -105757**	€ 4,04

» 23408

VALVE,SOLENOID-S.F.C

Part Number	Qty.	Specifications	Price
E35813XK0A	1		€ 81,35

» 23412B

SCREW SET,IDLE UP

Part Number	Qty.	Specifications	Price
E36613XN0	1	A (E366-13-XN0A) - 860606 BW12 -104504**
E36613XN0A	1	860606 - BW12104504-**

» 23422

LEVER SET

Part Number	Qty.	Specifications	Price
E35813YNXB	1		€ 14,24

» 23425A

LEVER,THROTTLE

Part Number	Qty.	Specifications	Price
E36613Y61B	1		€ 14,88

» 23440

SCREW SET,TH. ADJUST

Part Number	Qty.	Specifications	Price
B31513XM0	1	LO-POWER 870301 - BW12115364-**	€ 9,96
E36613XM0	1	NOR-POWER LO-POWER	€ 10,58

» 23446B

SPRING

Part Number	Qty.	Specifications	Price
E36613XBX	1		€ 6,75

» 23453B

SCREW SET

Part Number	Qty.	Specifications	Price
E35813XB0	1		€ 5,05

» 23459

HANGER,SPRING

Part Number	Qty.	Specifications	Price
E35813XT6	1		€ 4,70

» 23485

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
E36613YN5	1		€ 3,57

» 23505B

OPENER,CHOKE

Part Number	Qty.	Specifications	Price
E35813Y80	1	A (E116-13-Y80)	€ 82,32

» 23508A

SCREW,CAM ADJUST

Part Number	Qty.	Specifications	Price
E36613XP5	1

» 23516

RING,SNAP

Part Number	Qty.	Specifications	Price
E36613XB4	1

» 23517

CLAMP,WIRE

Part Number	Qty.	Specifications	Price
E35813YK3	1	NOR-POWER
E36013YK3	1	LO-POWER

» 24310B

SWITCH,MICRO

Part Number	Qty.	Specifications	Price
E35813XH0A	1	NOR-POWER	€ 28,41

Carburetor Components(gasoline)(1300cc)
