Mazda 323WAGON BW 1986-01 Mazda Torque Converter,oil Pump & Pipings

Mazda parts catalog

Parts > Mazda 323WAGON > 1986-01 > Gasoline-engine & Transmission > Torque Converter,oil Pump & Pipings(automatic)

Search by part number:

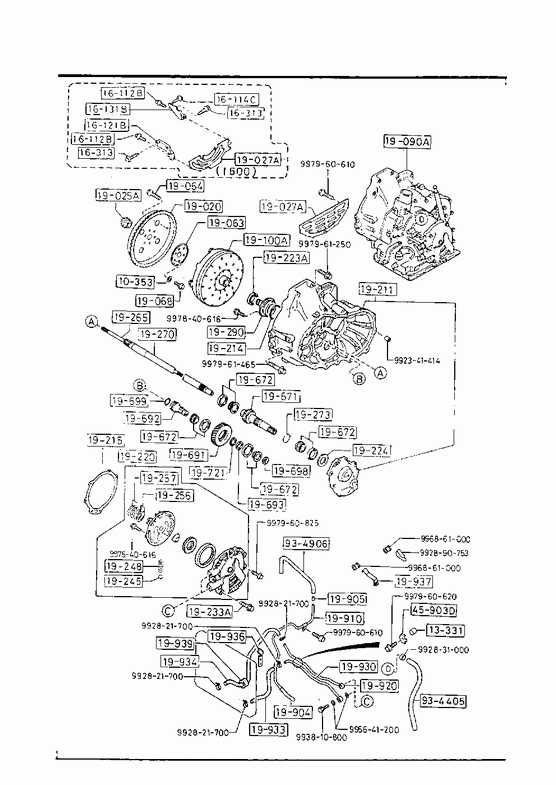

Torque Converter,oil Pump & Pipings(automatic)

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 13331

SPACER,AIR CLEANER

Part Number	Qty.	Specifications	Price
285013331	1	A (0727-65-052A)	€ 2,62

» 16112B

BOLT

Part Number	Qty.	Specifications	Price
PN0116311	2	1600	€ 2,46

» 16114C

BOLT

Part Number	Qty.	Specifications	Price
PN0116314	1	1600 870114 - BW12112824-**	€ 2,55

» 16121B

PLATE,GUSSET-FRONT

Part Number	Qty.	Specifications	Price
B50116121A	1	1600 870601 - BW12117976-**
B60116121	1	AN (B501-16-121A) 1600 - 870601 BW12 -117976**

» 16131B

PLATE,GUSSET-REAR

Part Number	Qty.	Specifications	Price
PN0116131	1	1600

» 16313

BOLT,GUSSET PLATE

Part Number	Qty.	Specifications	Price
PN0116313	2	1600	€ 1,82

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FT0119020A	1	1500	€ 68,38
FT3119020	1	1600	€ 72,82

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FT0119025	1	A (FT01-19-025A) 1500	€ 4,89
FT3119025	1	1600	€ 9,82

» 19027A

COVER,UNDER

Part Number	Qty.	Specifications	Price
FT0119027	1	1500
FT3019027C	1	1600

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
026819063	1	1500
FT3119063	1	1600	€ 2,24

» 19064

BOLT

Part Number	Qty.	Specifications	Price
FT0119064A	4		€ 0,95

» 19068

BOLT,LOCK

Part Number	Qty.	Specifications	Price
FT2119068	6	1500
FT3119064	6	1600	€ 1,36

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FT2219090E	1	A (FT22-19-090F) 1500 - 860601 BW12 -104289**
FT2219090F	1	A (FT22-19-090G) 1500 860601 - 860801 BW12104289-106669**
FT2219090G	1	A (FT22-19-090H) 1500 860801 - BW12106669-**
FT4719090E	1	A (FT47-19-090F) 1600

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FT0119100A	1	C (FT01-19-100B) 1500	€ 691,08
FT3119100D	1	A (FT31-19-100E) 1600 - 861001 BW12 -108529**
FT3119100E	1	C (FT31-19-100F) 1600 861001 - BW12108529-**

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FT2319190	1	1500	€ 175,02
FT3119190B	1	AN (FT61-19-190) 1600 - 870409 BW12 -117232**
FT6119190	1	1600 870409 - BW12117232-**

» 19214

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119214	1		€ 3,69

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FT0119221A	1	ASBESTOS	€ 5,02

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FT0119220A	1	AN (FT96-19-220)	€ 311,21

» 19223A

SEAL,OIL

Part Number	Qty.	Specifications	Price
FT0119223	1		€ 5,64

» 19224

SHIM

Part Number	Qty.	Specifications	Price
FT0119224	3	T=0.1MM	€ 1,36
FT0119225	3	T=0.12MM	€ 1,59
FT0119226	3	T=0.14MM	€ 1,59
FT0119227	3	T=0.16MM	€ 1,08
FT0119228	3	T=0.18MM	€ 1,08
FT0119229	3	T=0.5MM	€ 1,41

» 19233A

BOLT

Part Number	Qty.	Specifications	Price
FT0119233	3		€ 1,59

» 19245

BALL

Part Number	Qty.	Specifications	Price
033819245A	1

» 19248

SPRING

Part Number	Qty.	Specifications	Price
033819248	1

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119256	2		€ 6,32

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119257	2		€ 6,32

» 19270

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FT0119270A	1	- 860801 BW12 -106669**	€ 62,39
FT0119270B	1	860801 - BW12106669-**	€ 74,69

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FT0119273	1

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FT0119290	1	- 860801 BW12 -106669**
FT0119290A	1	860801 - BW12106669-**	€ 37,72

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FT2119671	1		€ 57,82

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FT0119672	4		€ 12,95

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FT2119691	1		€ 44,90

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119692	1

» 19693

SPACER,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119693	1

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119698	1

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119699	1		€ 1,81

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FT0119721	3	T=0.1MM
FT0119722	3	T=0.12MM	€ 0,25
FT0119723	3	T=0.14MM
FT0119724	3	T=0.16MM
FT0119725	3	T=0.2MM	€ 0,25
FT0119726	3	T=0.5MM

» 19904

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
033819904A	1

» 19905

INSERT

Part Number	Qty.	Specifications	Price
FT0119905	1

» 19910

PIPE,VACUUM

Part Number	Qty.	Specifications	Price
FT2119910	1	A (FT31-19-910) 1500
FT3119910A	1	1600	€ 5,94

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
FT2119920	1	A (FT30-19-920) 1500	€ 7,16
FT3119920	1	1600

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FT2119930A	1	A (FT30-19-930) 1500	€ 6,67
FT3019930	1	1600	€ 8,37

» 19933

HOSE,OIL

Part Number	Qty.	Specifications	Price
FT2119933A	1	A (FT30-19-933) 1500	€ 13,84
FT3019933	1	1600	€ 13,11

» 19934

HOSE,OIL

Part Number	Qty.	Specifications	Price
FT2119934A	1	1500	€ 22,42
FT3019934A	1	1600	€ 18,96

» 19936

CLIP

Part Number	Qty.	Specifications	Price
FT2119936	1	1500
FT3019936A	1	1600

» 19937

CLIP

Part Number	Qty.	Specifications	Price
FT0119937	1

» 19939

GUIDE,OIL HOSE

Part Number	Qty.	Specifications	Price
109819939	2

» 45903D

CLIP,PIPE

Part Number	Qty.	Specifications	Price
086645903A	1

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996861000	1		€ 2,49

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997950825	1		€ 1,46

» 934405

HOSE

Part Number	Qty.	Specifications	Price
9934405150	1	L=15M CUT IT TO USE	€ 113,89

» 934906

HOSE

Part Number	Qty.	Specifications	Price
9934906750	1	L=1.75 CUT IT TO USE	€ 32,86

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341414	1		€ 1,92

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992890753	1		€ 3,26

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992821700	1		€ 1,16

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993810800	1		€ 2,65

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641200	1		€ 0,73

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961250	1		€ 3,01

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961465	1		€ 3,73

Torque Converter,oil Pump & Pipings(automatic)
