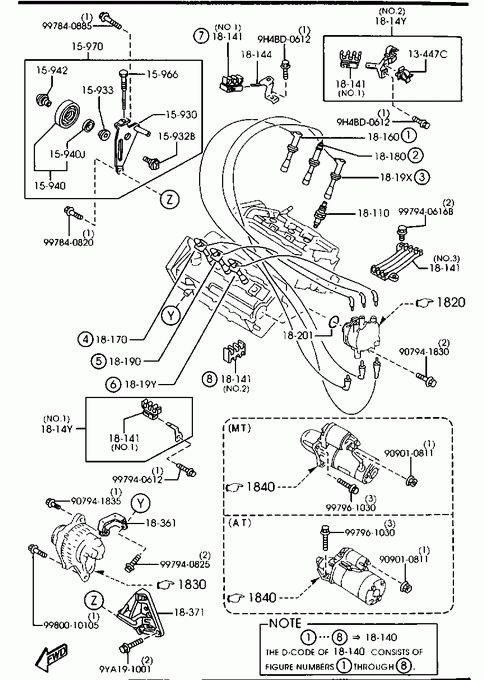

Engine Electrical System(2000cc)
-
» 13447C CLAMP,HOSE Part Number Qty. Specifications Price F21013447 1 € 1,93 » 15930 BRACKET,IDLE PULLEY Part Number Qty. Specifications Price KL0115950D 1 € 53,88 » 15932B SHAFT,ADJUST-C0MP.BRKT Part Number Qty. Specifications Price KL0115932 1 € 14,10 » 15933 COLLAR,COMP.BRKT Part Number Qty. Specifications Price K80515933A 1 € 4,28 » 15940 PULLEY,IDLE Part Number Qty. Specifications Price K8051594YA 1 AN (K805-15-94YB)
- 951228
BA1*** -337674€ 80,52 K8051594YB 1 951228 -
BA1***337674-€ 83,77 » 15940J BEARING Part Number Qty. Specifications Price 9960622030 1 € 16,06 » 15942 COLLAR,COMP.BRKT-PULLEY Part Number Qty. Specifications Price KL0115942 1 € 13,32 » 15966 BOLT,ADJUST Part Number Qty. Specifications Price K80515966A 1 € 12,64 » 15970 PULLEY,IDLE Part Number Qty. Specifications Price K80515930E 1 € 219,85 » 18110 PLUG,SPARK Part Number Qty. Specifications Price BP0118110 6 BKR5E-11 NGK
OPTION HOT TYPE€ 3,35 BP0218110 6 K16PR-U11 ND
OPTION HOT TYPE€ 3,35 BP0318110 6 BKR6E-11 NGK
STD.€ 3,35 BP0418110 6 K20PR-U11 ND
STD.€ 3,35 BP0518110 6 BKR7E-11 NGK
OPTION COLD TYPE€ 3,35 BP0618110 6 K22PR-U11 ND
OPTION COLD TYPE€ 3,25 » 18140 CORD SET,HI.TENSION Part Number Qty. Specifications Price KF3318140D 1 AN (KF33-18-140E)
- 951101
BA1*** -322674€ 110,42 KF3318140E 1 951101 -
BA1***322674-€ 114,88 » 18141 SUPPORTER Part Number Qty. Specifications Price JE2618141 3 ILLUST. NO.1 € 3,89 K80118141 1 ILLUST. NO.2 € 2,78 K80218141A 1 ILLUST. NO.3 € 5,90 » 18144 BRACKET,SUPPORT-H.T. CORD Part Number Qty. Specifications Price KF3418144 1 € 5,88 » 1814Y SUPPORTER,HI.TENSION CORD Part Number Qty. Specifications Price K8011814Y 1 ILLUST. NO.1 € 7,79 K8021814YA 1 ILLUST. NO.2 € 14,44 » 18160 CORD NO.1,HI.TENSION Part Number Qty. Specifications Price KF3318T51D 1 AN (KF33-18-T51E)
- 951101
BA1*** -322674€ 30,20 KF3318T51E 1 951101 -
BA1***322674-€ 31,42 » 18170 CORD NO.2,HI.TENSION Part Number Qty. Specifications Price KF3318T52B 1 AN (KF33-18-T52C)
- 951101
BA1*** -322674€ 22,42 KF3318T52C 1 951101 -
BA1***322674-€ 23,33 » 18180 CORD NO.3,HI.TENSION Part Number Qty. Specifications Price KF3318T53D 1 AN (KF33-18-T53E)
- 951101
BA1*** -322674€ 27,99 KF3318T53E 1 951101 -
BA1***322674-€ 29,12 » 18190 CORD NO.4,HI.TENSION Part Number Qty. Specifications Price KF3318T54B 1 AN (KF33-18-T54C)
- 951101
BA1*** -322674€ 19,47 KF3318T54C 1 951101 -
BA1***322674-€ 20,26 » 1819X CORD NO.5,HIGH TENSION Part Number Qty. Specifications Price KF3318T55C 1 AN (KF33-18-T55D)
- 951101
BA1*** -322674€ 19,47 KF3318T55D 1 951101 -
BA1***322674-€ 20,26 » 1819Y CORD NO.6,HIGH TENSION Part Number Qty. Specifications Price KF3318T56B 1 AN (KF33-18-T56C)
- 951101
BA1*** -322674€ 17,22 KF3318T56C 1 951101 -
BA1***322674-€ 17,91 » 18201 RING,'O' Part Number Qty. Specifications Price F20118201 1 € 4,13 » 18361 STRAP,ALTERNATOR Part Number Qty. Specifications Price KL0118360 1 € 17,85 » 18371 BRACKET,ALTERNATOR Part Number Qty. Specifications Price KL0518371B 1 € 71,85 » 90780 BOLT Part Number Qty. Specifications Price 997840885 1 € 2,93 » 90780 BOLT Part Number Qty. Specifications Price 9YA191001 1 € 3,31 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907941830 1 € 2,06 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907941835 1 € 1,47 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 909010811 1 € 1,51 » 99601 BOLT Part Number Qty. Specifications Price 9H4BD0612 1 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997840820 1 € 2,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616B 1 € 1,15 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997961030 1 € 2,69 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 9980010105 1 € 2,78
