Front Seats 01/03 (MATERIAL) 02/03 (RIGHT SIDE) 03/03 (LEFT SIDE)

Front Seats |

Mazda parts catalog

Parts > Mazda 323F > 1994-04 > Body Interior Trim > Front Seats

Search by part number:

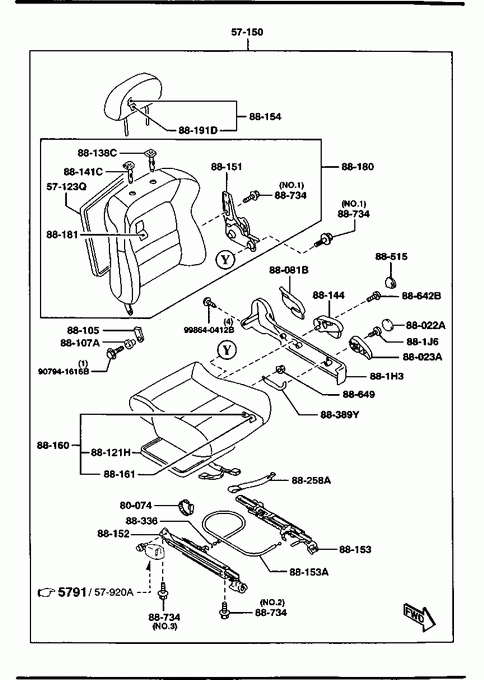

Front Seats

01/03 (MATERIAL)
02/03 (RIGHT SIDE)
03/03 (LEFT SIDE)

HEATER NO.2(L),SEAT

Part Number	Qty.	Specifications	Price
B53288123	1	081 TYPE 091 TYPE 950619 - BA1211304-*	€ 123,51

» 57150

SEAT(L),FRONT

Part Number	Qty.	Specifications	Price
BC6A57150F	1	080 TYPE - 940601 BA1* -106208**
BC6A57150G	1	080 TYPE 940601 - 940901 BA1106208-128938*
BC6A57150H	1	080 TYPE 940901 - 950101 BA1128938-172716*
BC6A57150J	1	080 TYPE 950101 - 950301 BA1172716-186677*
BC6A57150L	1	080 TYPE 950301 - 950619 BA1186677-211304*
BC6A57150M	1	080 TYPE 950619 - BA1211304-*
BC6B57150F	1	081 TYPE - 940601 BA1* -106208**
BC6B57150G	1	081 TYPE 940601 - 940901 BA1106208-128938*
BC6B57150J	1	081 TYPE 940901 - 950101 BA1128938-172716*
BC6B57150K	1	081 TYPE 950101 - 950301 BA1172716-186677*
BC6B57150M	1	081 TYPE 950301 - 950619 BA1186677-211304*
BC6B57150N	1	081 TYPE 950619 - BA1211304-*
BC6C57150F	1	090 TYPE - 940601 BA1* -106208**
BC6C57150G	1	090 TYPE 940601 - 940901 BA1106208-128938*
BC6C57150H	1	090 TYPE 940901 - 950101 BA1128938-172716*
BC6C57150J	1	090 TYPE 950101 - 950301 BA1172716-186677*
BC6C57150L	1	090 TYPE 950301 - 950619 BA1186677-211304*
BC6C57150M	1	090 TYPE 950619 - BA1211304-*
BC6D57150F	1	091 TYPE - 940601 BA1* -106208**
BC6D57150G	1	091 TYPE 940601 - 940901 BA1106208-128938*
BC6D57150J	1	091 TYPE 940901 - 950101 BA1128938-172716*
BC6D57150K	1	091 TYPE 950101 - 950301 BA1172716-186677*
BC6D57150M	1	091 TYPE 950301 - 950619 BA1186677-211304*
BC6D57150N	1	091 TYPE 950619 - BA1211304-*
BC6E57150A	1	230 TYPE - 940601 BA1* -106208**
BC6E57150B	1	230 TYPE 940601 - 940901 BA1106208-128938*
BC6E57150C	1	230 TYPE 940901 - 950101 BA1128938-172716*
BC6E57150D	1	230 TYPE 950101 - 950301 BA1172716-186677*
BC6E57150F	1	230 TYPE 950301 - 950619 BA1186677-211304*
BC6E57150H	1	230 TYPE 950619 - BA1211304-*
BD0K57150A	1	240 TYPE - 940601 BA1* -106208**
BD0K57150B	1	240 TYPE 940601 - 940901 BA1106208-128938*
BD0K57150C	1	240 TYPE 940901 - 950101 BA1128938-172716*
BD0K57150D	1	240 TYPE 950101 - 950301 BA1172716-186677*
BD0K57150F	1	240 TYPE 950301 - 950619 BA1186677-211304*
BD0K57150H	1	240 TYPE 950619 - BA1211304-*

» 80074

BAND

Part Number	Qty.	Specifications	Price
396688116	11		€ 1,13

» 88022A

CAP,TILT KNOB

Part Number	Qty.	Specifications	Price
BC1M881F6	1

» 88023A

KNOB,TILT

Part Number	Qty.	Specifications	Price
BC1M881H6	1

» 88081B

KNOB(L),KNUCKLE

Part Number	Qty.	Specifications	Price
BC1M881H5	1

» 88105

BUSH

Part Number	Qty.	Specifications	Price
B45588105	2		€ 2,20

» 88107A

COVER,HINGE

Part Number	Qty.	Specifications	Price
B45588027	2		€ 1,32

» 88121H

HEATER,SEAT CUSHION

Part Number	Qty.	Specifications	Price
EA9188121	1	081 TYPE 091 TYPE 950401 - BA1194444-*	€ 114,55

» 88138C

GUIDE,POLE-NO.2

Part Number	Qty.	Specifications	Price
B45588995	2

» 88141C

GUIDE,POLE-NO.1

Part Number	Qty.	Specifications	Price
B59688945	2

» 88144

LEVER,LIFTER

Part Number	Qty.	Specifications	Price
BC1M88857	1	- 950301 BA1* -186677**
BC1M88857A	1	950301 - BA1186677-*

» 88151

KNUCKLE(L),RECLINING

Part Number	Qty.	Specifications	Price
B45588151	1		€ 82,83

» 88152

ADJUSTER NO.3

Part Number	Qty.	Specifications	Price
B01E88152	1	A (B01E-88-152A)	€ 130,34

» 88153

ADJUSTER NO.4

Part Number	Qty.	Specifications	Price
B01E88153	1		€ 71,64

» 88153A

CABLE

Part Number	Qty.	Specifications	Price
B01E88109	2	A (B01E-88-109A)	€ 15,68

» 88154

RESTRAINT(L),HEAD

Part Number	Qty.	Specifications	Price
BC6A88190	1	- 940901 BA1* -128938**
BC6A88190A	1	940901 - 950101 BA1128938-172716*
BC6A88190B	1	950101 - BA1172716-*

» 88160

CUSHION(L),FRT SEAT

Part Number	Qty.	Specifications	Price
BC6A88160	1	080 TYPE - 940901 BA1* -128938**
BC6A88160A	1	080 TYPE 940901 - 950301 BA1128938-186677*
BC6A88160B	1	080 TYPE 950301 - BA1186677-*
BC6B88160	1	081 TYPE - 940901 BA1* -128938**
BC6B88160A	1	081 TYPE 940901 - 950301 BA1128938-186677*
BC6B88160B	1	081 TYPE 950301 - BA1186677-*
BC6C88160	1	090 TYPE - 940901 BA1* -128938**
BC6C88160A	1	090 TYPE 940901 - 950301 BA1128938-186677*
BC6C88160B	1	090 TYPE 950301 - BA1186677-*
BC6D88160	1	091 TYPE - 940901 BA1* -128938**
BC6D88160A	1	091 TYPE 940901 - 950301 BA1128938-186677*
BC6D88160B	1	091 TYPE 950301 - BA1186677-*
BC6E88160	1	230 TYPE - 940901 BA1* -128938**
BC6E88160A	1	230 TYPE 940901 - 950301 BA1128938-186677*
BC6E88160B	1	230 TYPE 950301 - 950619 BA1186677-211304*
BC6E88160C	1	230 TYPE 950619 - BA1211304-*
BD0K88160	1	240 TYPE - 940901 BA1* -128938**
BD0K88160A	1	240 TYPE 940901 - 950301 BA1128938-186677*
BD0K88160B	1	240 TYPE 950301 - 950619 BA1186677-211304*
BD0K88160C	1	240 TYPE 950619 - BA1211304-*

» 88161

TRIM(L),SEAT CUSHION

Part Number	Qty.	Specifications	Price
B01A88161	1	080 TYPE 081 TYPE - 940901 BA1* -128938**
B01A88161A	1	080 TYPE 081 TYPE 940901 - 950301 BA1128938-186677*
B01A88161B	1	080 TYPE 081 TYPE 950301 - BA1186677-*
B01B88161	1	090 TYPE 091 TYPE - 940901 BA1* -128938**
B01B88161A	1	090 TYPE 091 TYPE 940901 - 950301 BA1128938-186677*
B01B88161B	1	090 TYPE 091 TYPE 950301 - BA1186677-*
BC6E88161	1	230 TYPE - 940901 BA1* -128938**
BC6E88161A	1	230 TYPE 940901 - 950301 BA1128938-186677*
BC6E88161B	1	230 TYPE 950301 - 950619 BA1186677-211304*
BC6E88161C	1	230 TYPE 950619 - BA1211304-*
BD0K88161	1	240 TYPE - 940901 BA1* -128938**
BD0K88161A	1	240 TYPE 940901 - 950301 BA1128938-186677*
BD0K88161B	1	240 TYPE 950301 - 950619 BA1186677-211304*
BD0K88161C	1	240 TYPE 950619 - BA1211304-*

» 88180

BACK(L),FRONT SEAT

Part Number	Qty.	Specifications	Price
BC6A88180	1	080 TYPE 230 TYPE - 940601 BA1* -106208**
BC6A88180A	1	080 TYPE 230 TYPE 940601 - 940901 BA1106208-128938*
BC6A88180B	1	080 TYPE 230 TYPE 940901 - 950619 BA1128938-211304*
BC6A88180C	1	080 TYPE 230 TYPE 950619 - BA1211304-*
BC6B88180	1	081 TYPE - 940601 BA1* -106208**
BC6B88180A	1	081 TYPE 940601 - 940901 BA1106208-128938*
BC6B88180B	1	081 TYPE 940901 - 950619 BA1128938-211304*
BC6B88180C	1	081 TYPE 950619 - BA1211304-*
BC6C88180	1	090 TYPE 240 TYPE - 940601 BA1* -106208**
BC6C88180A	1	090 TYPE 240 TYPE 940601 - 940901 BA1106208-128938*
BC6C88180B	1	090 TYPE 240 TYPE 940901 - 950619 BA1128938-211304*
BC6C88180C	1	090 TYPE 240 TYPE 950619 - BA1211304-*
BC6D88180	1	091 TYPE - 940601 BA1* -106208**
BC6D88180A	1	091 TYPE 940601 - 940901 BA1106208-128938*
BC6D88180B	1	091 TYPE 940901 - 950619 BA1128938-211304*
BC6D88180C	1	091 TYPE 950619 - BA1211304-*

» 88181

TRIM(L),SEAT BACK

Part Number	Qty.	Specifications	Price
BC6A88181	1	080 TYPE 230 TYPE - 940601 BA1* -106208**
BC6A88181A	1	080 TYPE 230 TYPE 940601 - 940901 BA1106208-128938*
BC6A88181B	1	080 TYPE 230 TYPE 940901 - 950619 BA1128938-211304*
BC6A88181C	1	080 TYPE 230 TYPE 950619 - BA1211304-*
BC6B88181	1	081 TYPE - 940601 BA1* -106208**
BC6B88181A	1	081 TYPE 940601 - 940901 BA1106208-128938*
BC6B88181B	1	081 TYPE 940901 - 950619 BA1128938-211304*
BC6B88181C	1	081 TYPE 950619 - BA1211304-*
BC6C88181	1	090 TYPE 240 TYPE - 940601 BA1* -106208**
BC6C88181A	1	090 TYPE 240 TYPE 940601 - 940901 BA1106208-128938*
BC6C88181B	1	090 TYPE 240 TYPE 940901 - 950619 BA1128938-211304*
BC6C88181C	1	090 TYPE 240 TYPE 950619 - BA1211304-*
BC6D88181	1	091 TYPE - 940601 BA1* -106208**
BC6D88181A	1	091 TYPE 940601 - 940901 BA1106208-128938*
BC6D88181B	1	091 TYPE 940901 - 950619 BA1128938-211304*
BC6D88181C	1	091 TYPE 950619 - BA1211304-*

» 88191D

TRIM(L),HEAD REST

Part Number	Qty.	Specifications	Price
BC6A88191	1	- 940901 BA1* -128938**
BC6A88191A	1	940901 - 950101 BA1128938-172716*
BC6A88191B	1	950101 - BA1172716-*

» 881H3

COVER NO.4,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
BC1M881H3	1

» 881J6

SCREW,TILT

Part Number	Qty.	Specifications	Price
BC1M881J6	1		€ 1,26

» 88258A

STOPPER

Part Number	Qty.	Specifications	Price
BC5E88244	2	081 TYPE 091 TYPE 940901 - BA1128938-*	€ 6,58

» 88336

RING,STOPPER

Part Number	Qty.	Specifications	Price
FA5888336	2		€ 2,26

» 88389Y

LEVER(L),TILT

Part Number	Qty.	Specifications	Price
BC1M88663	1		€ 6,61

» 88515

CAP,LIFTER LEVER

Part Number	Qty.	Specifications	Price
BC1M88741	1

» 88642B

SCREW

Part Number	Qty.	Specifications	Price
BC1M88642	1		€ 2,89

» 88649

NUT,FRANGE

Part Number	Qty.	Specifications	Price
BC1M88649	1		€ 1,96

» 88734

BOLT

Part Number	Qty.	Specifications	Price
B09288818	4	ILLUST. NO.2	€ 1,74
B45688815	8	ILLUST. NO.1	€ 1,64
EA0188818	4	ILLUST. NO.3	€ 2,04

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907941616B	1		€ 2,85

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998640412B	1		€ 0,44
