Oil Pan & Timing Cover 01/02 (1300)(1600) 02/02 (1800)

Oil Pan & Timing Cover |

Mazda parts catalog

Parts > Mazda 323 > 1989-07 > Gasoline-engine 4-cylinder Transmission > Oil Pan & Timing Cover

Search by part number:

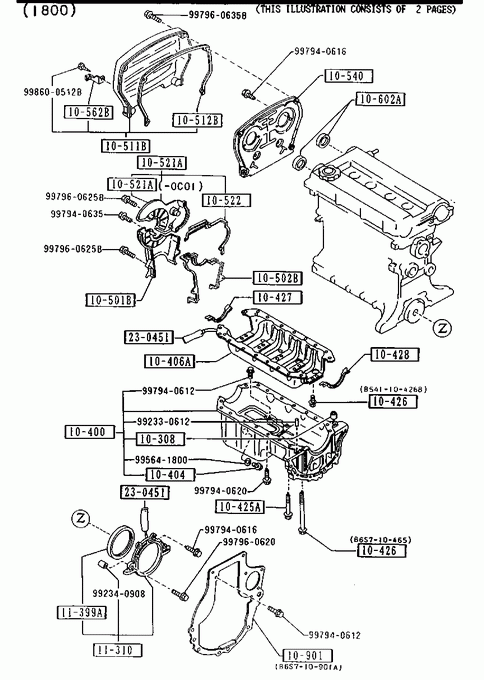

Oil Pan & Timing Cover(gasoline)

01/02 (1300)(1600)
02/02 (1800)

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
B6F410308	1	1800	€ 2,42

PAN,OIL

Part Number	Qty.	Specifications	Price
B36610400A	1	1300 1600	€ 126,81
BP0110400E	1	A (BP01-10-400F) 1800 - 900201 *BG101 -109197**	€ 194,20
BP0110400F	1	A (BP01-10-400G) 1800 900201 - *BG101109197-**	€ 194,20

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
B6S710404	1	C (B6Y0-10-404) 1800 - 900201 *BG101 -109197**	€ 2,64
B6S710404A	1	1800 900201 - *BG101109197-**	€ 2,74
HE0310404	1	1300 1600	€ 2,18

PLATE,OIL BAFFLE

Part Number	Qty.	Specifications	Price
B5411040YA	1	A (B541-10-40YB) 1300 1600 - 891201 *BG101 -105196**
B5411040YB	1	1300 1600 891201 - *BG101105196-**	€ 84,37
BP011040Y	1	A (BP01-10-40YA) 1800 - 891201 *BG101 -105196**
BP011040YA	1	1800 891201 - *BG101105196-**	€ 84,37

BOLT

Part Number	Qty.	Specifications	Price
B6S710466	2	1800	€ 2,35

BOLT

Part Number	Qty.	Specifications	Price
B54110426	8	A (B541-10-426A) - 891201 *BG101 -105196**	€ 2,36
B54110426A	8	AN (B541-10-426B) 891201 - 900701 *BG101105196-118401**	€ 2,36
B54110426B	8	900701 - *BG101118401-**	€ 2,50
B6S710465	2	1800	€ 2,35

GASKET,OIL PAN

Part Number	Qty.	Specifications	Price
B54110427	1	NON ASBESTOS	€ 14,05

GASKET,OIL PAN

Part Number	Qty.	Specifications	Price
B54110428	1	NON ASBESTOS	€ 14,05

COVER,TIMING BELT-LWR

Part Number	Qty.	Specifications	Price
B63010500D	1	1300 1600	€ 29,13
B63010501C	1	A (B630-10-500D) 1300 1600 - 901210 *BG101 -128333**	€ 27,73
B66010500E	1	A (B660-10-501E) 1800	€ 39,71
B66010501D	1	A (B660-10-500E) 1800 - 901210 *BG101 -128333**	€ 40,09

GASKET

Part Number	Qty.	Specifications	Price
B63010502B	1	NON ASBESTOS 1300 1600	€ 16,81
B66010502B	1	NON ASBESTOS 1800	€ 16,81

COVER,TIMING BELT-UP

Part Number	Qty.	Specifications	Price
B63010510B	1	1300 1600	€ 50,77
B63010511A	1	A (B630-10-511B) 1300 1600 - 901001 *BG101 -124275**	€ 48,30
B63010511B	1	A (B630-10-510B) 1300 1600 901001 - 901210 *BG101124275-128333**	€ 48,30
BJ0110510C	1	1800	€ 107,23

GASKET,T.B.COVER UP.

Part Number	Qty.	Specifications	Price
B63010512A	1	NON ASBESTOS 1300 1600	€ 17,43
B66010512A	1	1800	€ 15,66

COVER,TIMING BELT-C.

Part Number	Qty.	Specifications	Price
B66010520B	1	AN (B660-10-521B) 1800	€ 33,80
B66010521B	1	1800 - 901210 *BG101 -128333**	€ 35,50

GASKET,T.BELT COVER-C.

Part Number	Qty.	Specifications	Price
B66010522	1	NON ASBESTOS 1800	€ 13,62

PLATE,SEAL-T.BELT COVER U

Part Number	Qty.	Specifications	Price
BJ0110540B	1	AN (BJ01-10-540C) 1800

CLIP

Part Number	Qty.	Specifications	Price
B69510562A	1	1800	€ 9,84

SEAL,OIL

Part Number	Qty.	Specifications	Price
F28510602	2	1800 910301 - *BG101133893-**	€ 8,37
F80110602	2	A (F285-10-602) 1800 - 910301 *BG101 -133893**	€ 8,37

PLATE,END

Part Number	Qty.	Specifications	Price
B54110903	1	1600	€ 4,25
B6S710901A	1		€ 30,28

COVER,REAR

Part Number	Qty.	Specifications	Price
B36611310B	1	AN (B366-11-310C) - 901126 *BG101 -127557**
B36611310C	1	RYOBI 901126 - *BG101127557-**	€ 98,83

SEAL,OIL-CRANKSHAFT

Part Number	Qty.	Specifications	Price
B63011312	1	A (BP05-11-312) - 901126 *BG101 -127557**	€ 20,46
BP0511312	1	901126 - *BG101127557-**	€ 24,47

TUBE,SILICON

Part Number	Qty.	Specifications	Price
852777739	1		€ 39,13

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998600512B	1		€ 0,69

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

PIN

Part Number	Qty.	Specifications	Price
992330612	1		€ 0,71

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992340908	1		€ 2,06

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940635	1		€ 2,24

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960625B	1		€ 0,43

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960635B	1		€ 1,90
